Product Features
Product Description

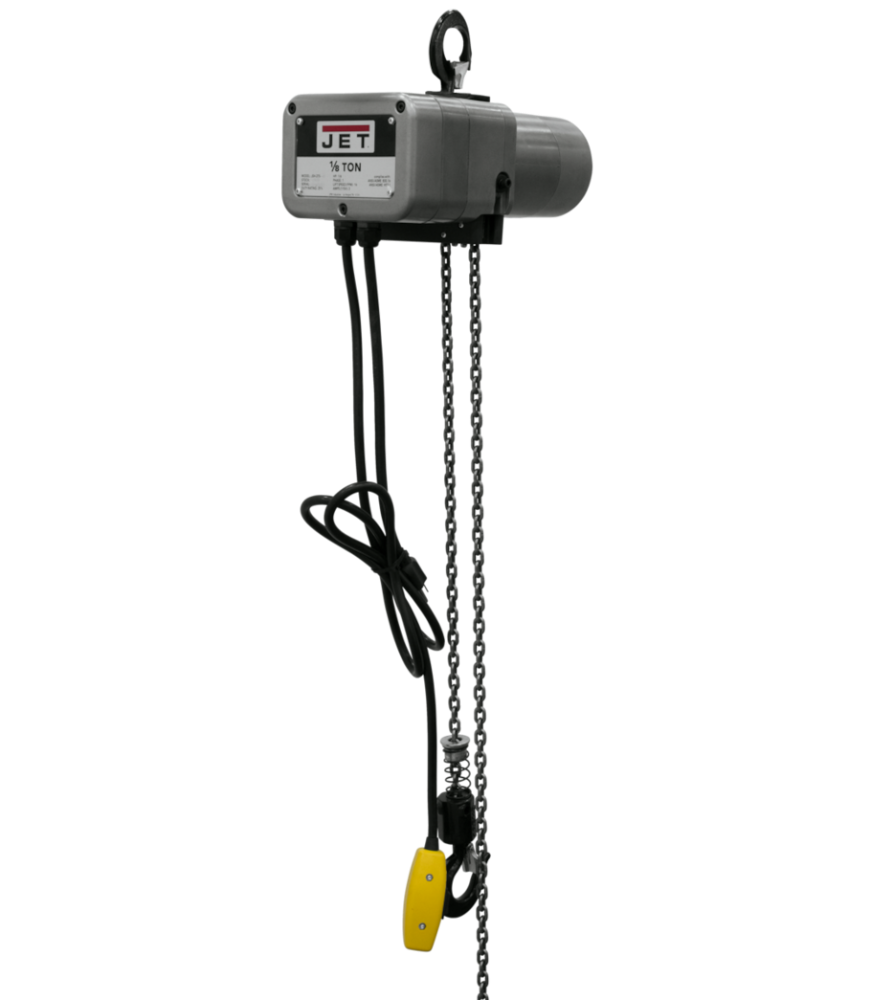

The JET JSH-275-10 1/8-Ton Electric Chain Hoist by JET delivers a dependable combination of safety, durability, and portability for light-duty commercial and industrial lifting applications. Rated at a 250 lb capacity with a 10-foot lift, this single-phase electric hoist features a lightweight aluminum alloy housing that makes it easy to transport and reposition across job sites and facilities.
Key Features
- Aluminum Housing: Aluminum alloy housing decreases the weight for convenient transportation.
- Grade 80 Load Chain: Grade 80 black oxide coated load chain for durability.
- Heat Treated Gears: Heat treated alloy steel geared drive train for long lasting durability.
- Limit Switches: Upper and lower limiting switches increase safety by preventing the load chain from over traveling.
- Slip Clutch Overload Protection: Prevents the hoist from lifting loads above its rated capacity, protecting both the hoist and the load.
- Built-In Thermal Overload Protection: Keeps the hoist from overheating during operation.
- Magnetic Disk Brake: Industry-proven design ensures rapid stops and secures the load for enhanced safety.
- Maintenance-Free Gear Train: Sealed oil bath design eliminates routine gear maintenance.
Specifications
- MPN: JT9-110100
- Stock Number: 110100
- Capacity: 250 lbs (1/8 Ton)
- Lift: 10 ft
- Lifting Speed: 16 FPM
- Motor: 1/6 HP, 115V, 1-Phase
- Motor Current: See product documentation
- Duty Cycle: 25%
- Duty Cycle Rating: H3
- Max. Number of Starts (Per Hr.): 150
- Max. On Time: 15 Min. / Hr.
- Headroom: 15-1/4 in
- Overall Width: 6.81 in
- Weight: 30.6 lbs
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- Is the JET JSH-275-10 electric hoist suitable for outdoor or wet environments?
- No. JET VOLT and SSC Series Electric Hoists and JET ET Series Electric Trolleys are not rated or designed for outdoor use or wet environments. This hoist should only be used in dry, indoor settings.
- What type of load chain does the JSH-275-10 use?
- The JSH-275-10 uses a Grade 80 black oxide coated load chain, which provides enhanced durability for reliable lifting performance in light-duty commercial and industrial applications.
- How does the hoist protect against overloading?
- The hoist incorporates a slip clutch overload protection mechanism that prevents it from lifting loads above its rated capacity of 250 lbs, helping to protect both the hoist and the load from damage.
- What safety features prevent the load chain from traveling too far?
- Upper and lower limiting switches increase safety by preventing the load chain from over traveling, ensuring the hoist operates within its designed range of motion during every lift cycle.
