Product Description

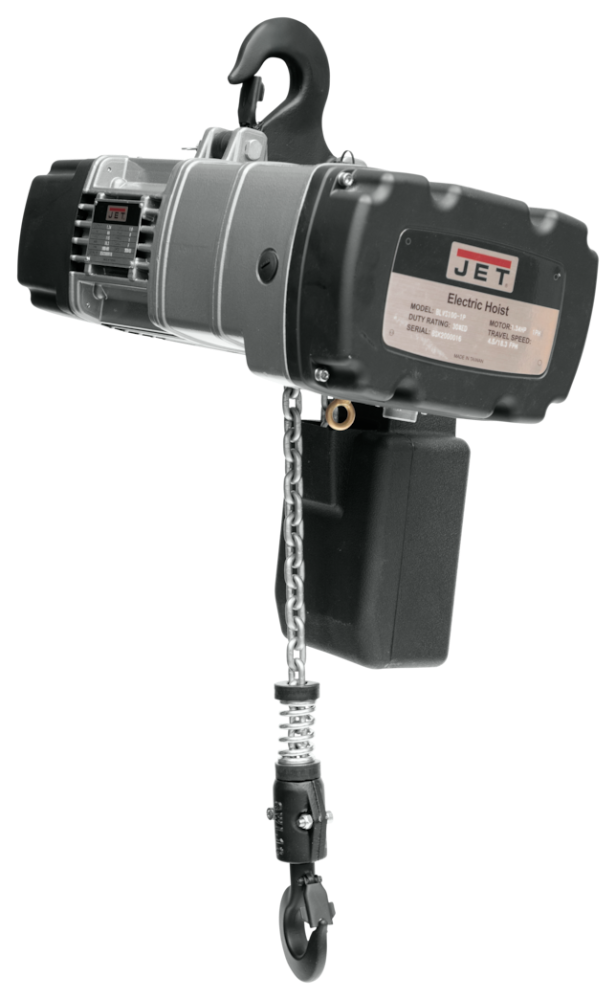

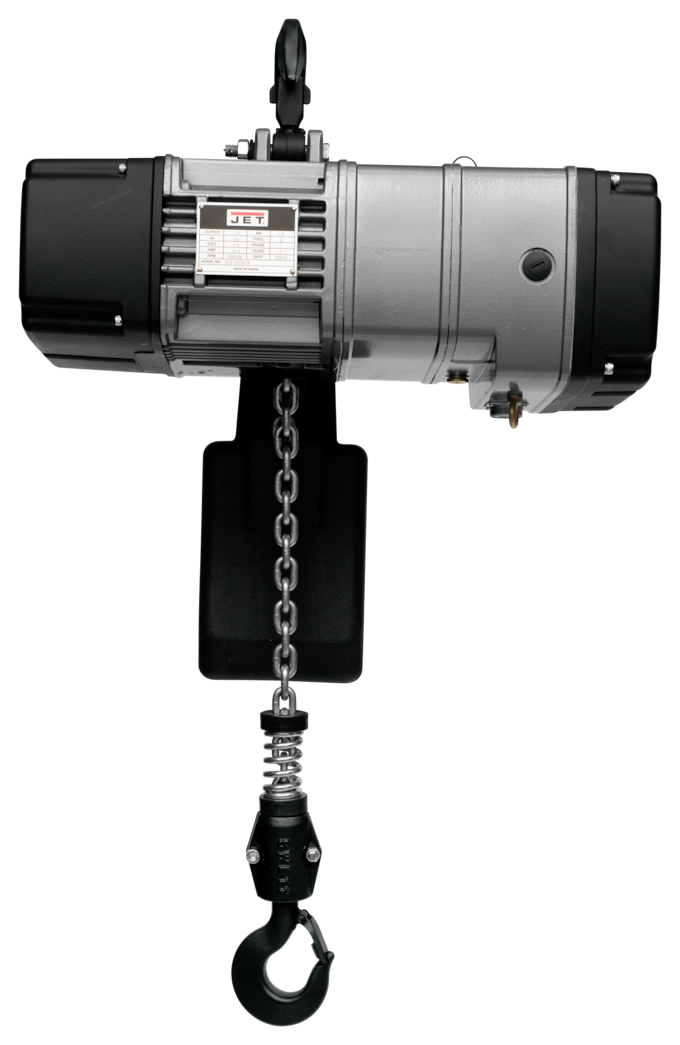

The JET 2-Ton Electric Chain Hoist 1-Phase 20' Lift BLVS200-020 from JET delivers a powerful combination of safety, portability, and long-term durability for demanding industrial, construction, and transportation applications. With a 4,400 lb. capacity and a market-leading wireless controller paired with a DC Brushless motor, this hoist is engineered to reduce maintenance costs while keeping operators safe and in precise control across a 20-foot lift range.
Key Features

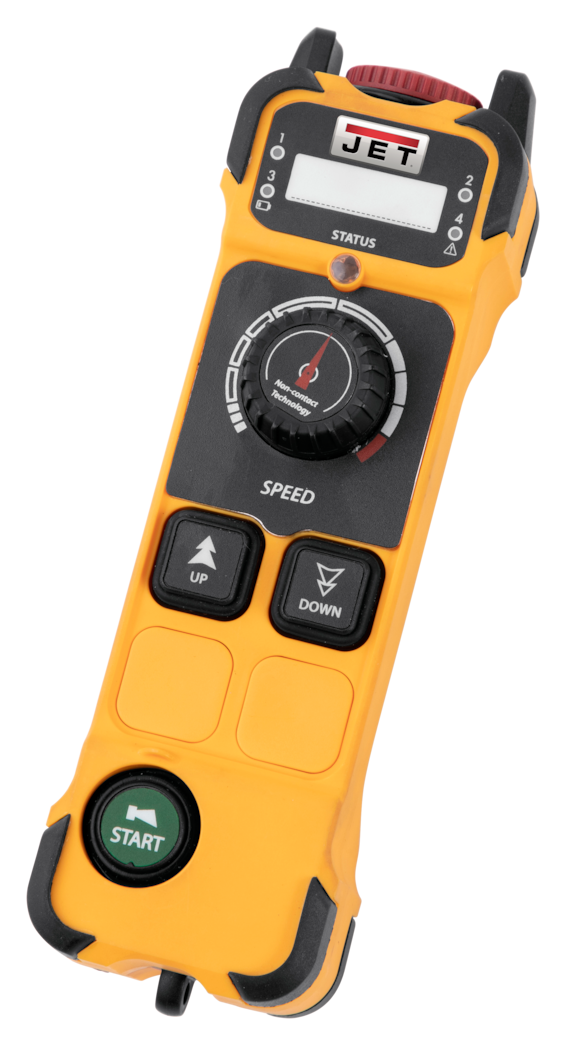

- Comes standard with Wireless Controller that can infinitely adjust speed from creep to 4ft/min with speed dial and max of 41ft/min in high speed
- TAA Approved for compliance-sensitive purchasing environments
- Single phase 120V plug enables use in all areas and the Permanent Magnet Brushless Motor has the lowest required starting current available at just 10amp
- Overload protection using slip clutch system to protect hoist from loads over rated capacities
- DC Brushless motor designed for a longer lifespan than normal Electric Hoist motors, reducing maintenance costs
- 30/7.5 Time ratings for dependable duty cycle performance in high-demand environments
- Electronic controls feature protections with 10 failure codes that are shown on wireless pendant for straightforward troubleshooting
Specifications
- MPN: JT9-104046
- Stock Number: 104046
- Capacity: 4,400 lbs (2 Tons)
- Lift: 20 ft
- Lifting Speed: 0 - 2.2 / 9 FPM
- Motor: 1.33 HP, 110V, 60Hz
- Motor Current: 15 Amps
- Duty Cycle: 30%
- Duty Cycle Rating: H3
- Max. On Time: 30/7.5 Min./Hr.
- Max. Number of Starts Per Hour: 180
- Headroom: 24-1/2 in.
- Overall Width: 14-1/2 in.
- Weight: 153 lbs
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
What's Included
- JET BLVS200-020 2-Ton Electric Chain Hoist
- Wireless Controller with speed dial
Frequently Asked Questions
- What is the maximum load capacity of this hoist?
- This hoist has a rated capacity of 4,400 lbs (2 tons). It is equipped with an overload protection slip clutch system to protect the hoist from loads that exceed this rated capacity.
- Does this hoist require special wiring or a dedicated circuit?
- No. The single phase 120V plug enables use in all areas. The Permanent Magnet Brushless Motor requires the lowest starting current available at just 10 amps, making it compatible with standard electrical setups.
- How does the wireless controller work, and what speeds are available?
- The included Wireless Controller can infinitely adjust speed from creep to 4ft/min using the speed dial, with a maximum high speed of 41ft/min. This gives operators precise, variable control over lifting and lowering operations.
- How do I troubleshoot issues with this hoist?
- The electronic controls feature built-in protections with 10 failure codes that are displayed directly on the wireless pendant, allowing operators to quickly identify and address issues without needing specialized diagnostic tools.
