Product Features
Product Description

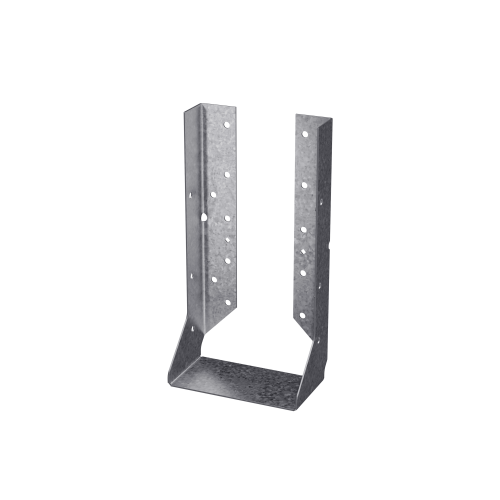

Simpson HUCQ612Z-SDSG HUCQ ZMAX Heavy Face-Mount Concealed-Flange Joist Hanger for 6x12 with Screws is a heavy-duty, face-mount joist hanger from Simpson Strong-Tie engineered for structures requiring additional strength and safety factors. Featuring concealed header flanges for a cleaner appearance in exposed conditions, this hanger installs with included Strong-Drive SDS Heavy-Duty Connector screws for high load capacity - with no predrilling required for ease of installation. The ZMAX galvanized finish delivers superior corrosion resistance, making it well-suited for exterior and treated-wood construction applications.
Key Features
- Concealed flanges provide cleaner lines for exposed conditions
- HUCQ-series hangers are tested, load rated and code compliant
- Strong-Drive SDS Heavy-Duty Connector screws are included
- Install wood joists to wood, masonry and concrete
- Seat width: 5-1/2 in.
- Nominal joist size: 6x12
- Made from 14-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Can be installed close to the end of the supporting beam
- No predrilling required for fast, efficient installation
Specifications
- MPN: HUCQ612Z-SDSG
- Member Size: 6x12
- Seat Width: 5-1/2 in.
- Material Gauge: 14-gauge steel
- Coating / Finish: ZMAX
- Installation Fasteners: Install with (14) 1/4 in. x 2-1/2 in. SDS screws in the header and (6) 1/4 in. x 2-1/2 in. SDS screws in the joist (screws included)
- Country of Origin: United States
Approved Applications
- Installing wood joists to wood beams and headers
- Installing wood joists to masonry surfaces
- Installing wood joists to concrete surfaces
- Exterior construction and treated-wood applications requiring enhanced corrosion resistance
- Structures requiring additional strength and safety factors
- Exposed framing conditions where concealed flanges provide a cleaner aesthetic
What's Included
Each pack contains (1) HUCQ612Z-SDSG Face-Mount Hanger, (20) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws.
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What size joist is the HUCQ612Z-SDSG designed to support?
- This hanger is designed for a nominal 6x12 joist size, with a seat width of 5-1/2 in. to properly cradle the supported member.
- Do I need to predrill before installing this hanger?
- No predrilling is required. The included Strong-Drive SDS Heavy-Duty Connector screws are designed to drive directly into the wood for high capacity and ease of installation.
- Why is the ZMAX finish important for this hanger?
- The ZMAX galvanization provides extra corrosion resistance compared to standard galvanized finishes, making the HUCQ612Z-SDSG suitable for exterior applications and use with treated lumber where enhanced durability is required.
- Can this hanger be installed close to the end of a supporting beam?
- Yes. The concealed header flange design of the HUCQ series allows installation close to the end of the supporting beam, offering greater placement flexibility on the job site.
Note: Product dimensions and/or screw holes may differ from picture. Please see item description for specifications.
