Product Features
Product Description

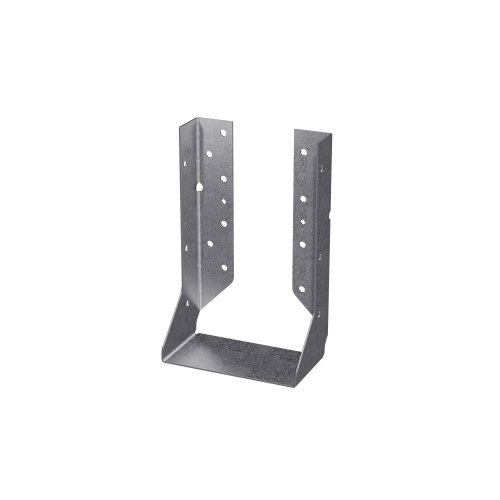

Simpson HUCQ610Z-SDSG HUCQ ZMAX Heavy Face-Mount Concealed-Flange Joist Hanger for 6x10 with SDS Screws is a heavy-duty, face-mount joist hanger engineered by Simpson Strong-Tie for structures requiring additional strength and safety factors. Designed for 6x10 nominal lumber, this hanger features concealed header flanges for clean, professional-looking exposed installations and can be positioned close to the end of the supporting beam. It installs using included Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws, delivering high load capacity with no predrilling required.
Key Features
- Concealed flanges provide cleaner lines for exposed conditions
- HUCQ-series hangers are tested, load rated and code compliant
- Strong-Drive SDS Heavy-Duty Connector screws are included
- Install wood joists to wood, masonry and concrete
- Seat width: 5-1/2 in.
- Nominal joist size: 6x10
- Made from 14-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Specifications
- Model Number: HUCQ610Z-SDSG
- Member Size: 6x10
- Seat Width: 5-1/2 in.
- Material Gauge: 14-gauge steel
- Finish / Coating: ZMAX
- Country of Origin: United States
- Installation Fasteners: Install with (12) 1/4 in. x 2-1/2 in. SDS screws in the header and (6) 1/4 in. x 2-1/2 in. SDS screws in the joist (screws included)
Approved Applications
- Installing wood joists to wood framing members
- Installing wood joists to masonry substrates
- Installing wood joists to concrete substrates
- Exterior applications where corrosion resistance is required
- Applications involving treated lumber where enhanced galvanization is needed
What's Included
Each pack contains (1) HUCQ610Z-SDSG Face-Mount Hanger, (18) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws.
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What size lumber is the HUCQ610Z-SDSG designed to support?
- This hanger is designed for a nominal 6x10 joist or beam, with a seat width of 5-1/2 in. to accommodate that member size.
- Do I need to predrill for the SDS screws when installing this hanger?
- No predrilling is required. The included Strong-Drive SDS Heavy-Duty Connector screws are designed for direct installation, making the process faster and easier while still delivering high load capacity.
- Why does this hanger have ZMAX galvanization instead of standard galvanization?
- ZMAX galvanization provides an extra level of corrosion resistance, making this hanger well suited for exterior applications and use with treated lumber, where standard coatings may be insufficient.
- Can the HUCQ610Z-SDSG be used with masonry or concrete headers, or only wood?
- This hanger is designed to install wood joists to wood, masonry, and concrete supporting members, offering versatility across a range of structural configurations.
Note: Product dimensions and/or screw holes may differ from picture. Please see item description for specifications.
