Product Features
Product Description

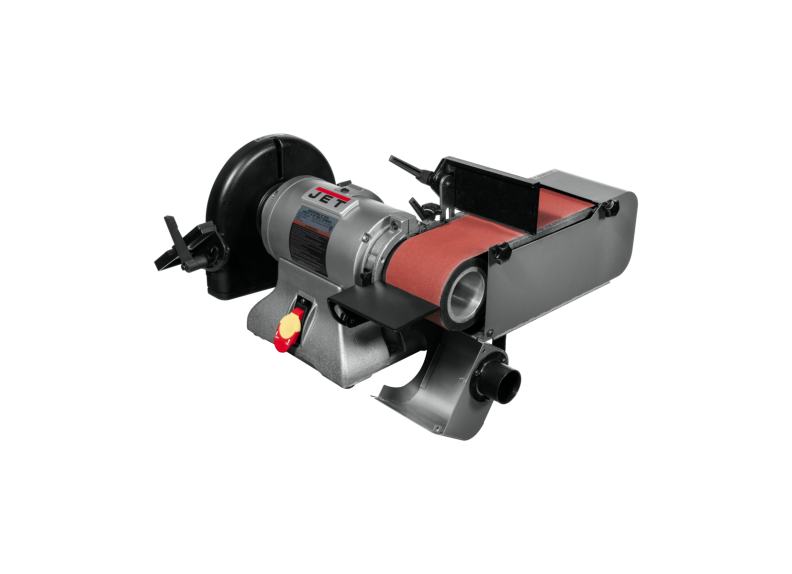

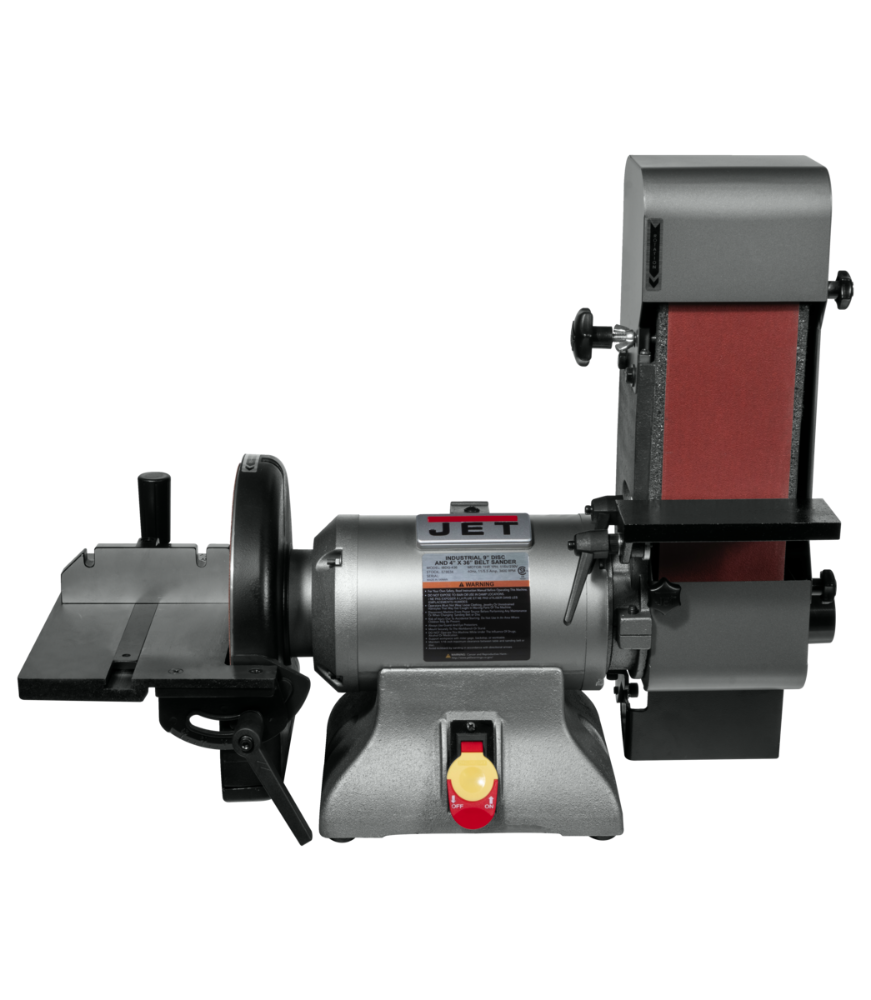

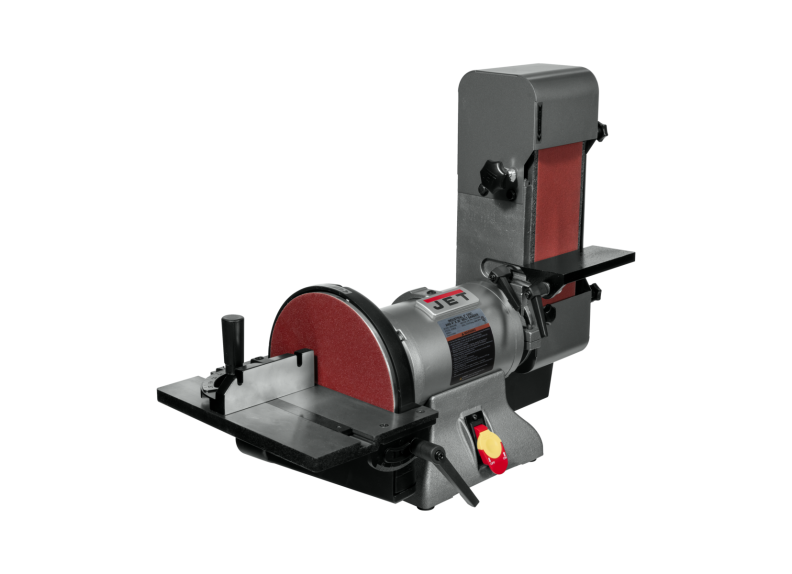

JET IBDG-436 Combination Industrial 4" x 36" Belt and 9" Disc Grinder by JET delivers heavy-duty grinding performance with industrial-strength construction built for demanding shop environments. Powered by an enclosed 1 HP motor with sealed bearings and CSA/CUS Certification, this combination belt and disc grinder is engineered for sustained heavy usage, offering versatile stock removal, deburring, and surface finishing in a single compact machine.
Key Features
- 9" aluminum disc reduces heat buildup and prolongs abrasive life
- Cast iron work rests with tool-less adjustments
- Contact wheel grinding with toolless access
- Easy-to-use belt tracking
- Full guarding of all non-work contact points
- Heavy cast iron bases reduce vibration
- Safety switch with removable key for added operator protection
- Solid cast iron platen offers rigid grinding surface
- Two dust collection ports minimize debris buildup
- CSA/CUS Certified for verified safety compliance
Specifications
- Stock Number: 578634
- Belt Grit: 80
- Belt Size (W x L): 4 x 36 in.
- Belt Speed: 3769 SFPM
- Disc Diameter: 9 in.
- Dust Port Size: 2 in.
- Motor: 1 HP
- Shaft Diameter: 11 in.
- Overall Dimensions (L x W x H) - sanding bracket parallel: 25-3/4 x 21-3/4 x 11-3/4 in.
- Overall Dimensions (L x W x H) - sanding bracket vertical: 25-3/8 x 21-3/4 x 20-3/4 in.
- Net Weight: 73 lbs.
- Gross Weight: 92 lbs.
- Prop 65: None
- Country of Origin: Taiwan
Frequently Asked Questions
- What size belt and disc does this grinder use?
- This grinder uses a 4 x 36 in. belt and a 9 in. disc. The belt ships with an 80-grit abrasive and runs at a speed of 3769 SFPM.
- Why is the disc made from aluminum?
- The 9" aluminum disc reduces heat buildup during operation, which helps prolong abrasive life and maintains more consistent grinding performance over extended use.
- Does this grinder include dust collection ports?
- Yes. The grinder features two dust collection ports to minimize debris buildup, and the dust port size is 2 in., making it compatible with standard shop dust collection setups.
- What safety features does the IBDG-436 include?
- The IBDG-436 includes a safety switch with a removable key to help prevent unauthorized or accidental startup, as well as full guarding of all non-work contact points for comprehensive operator protection. It is also CSA/CUS Certified.
