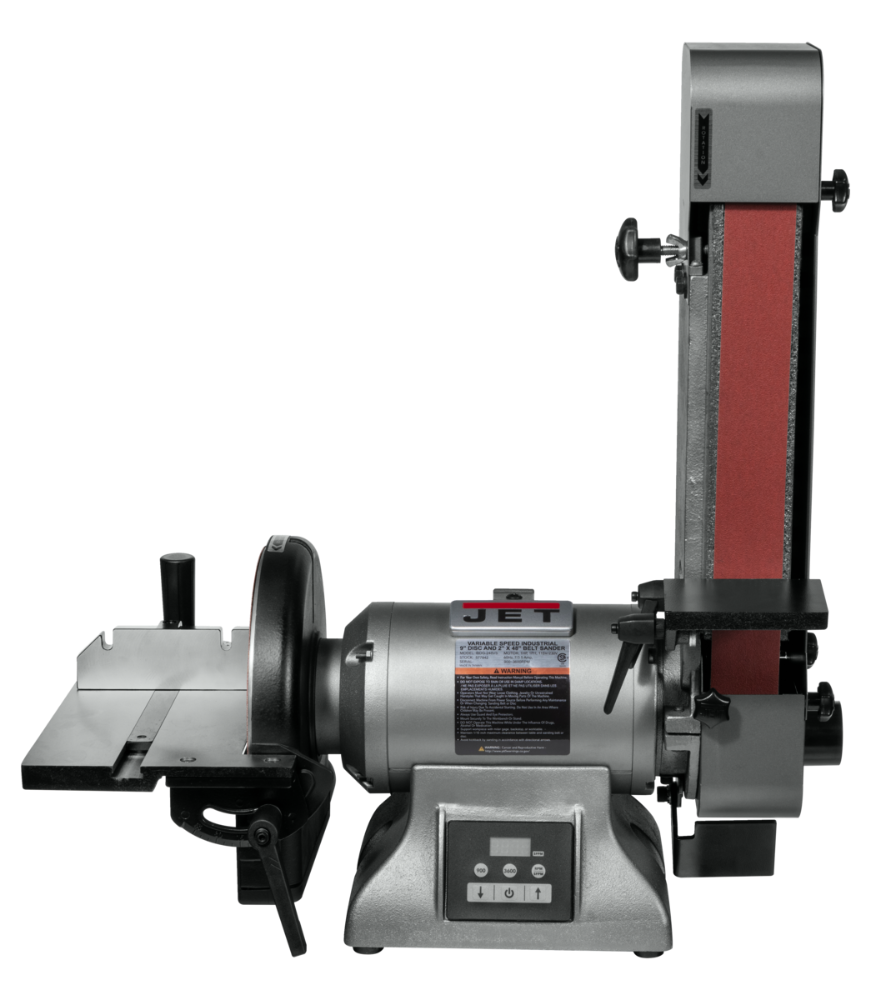

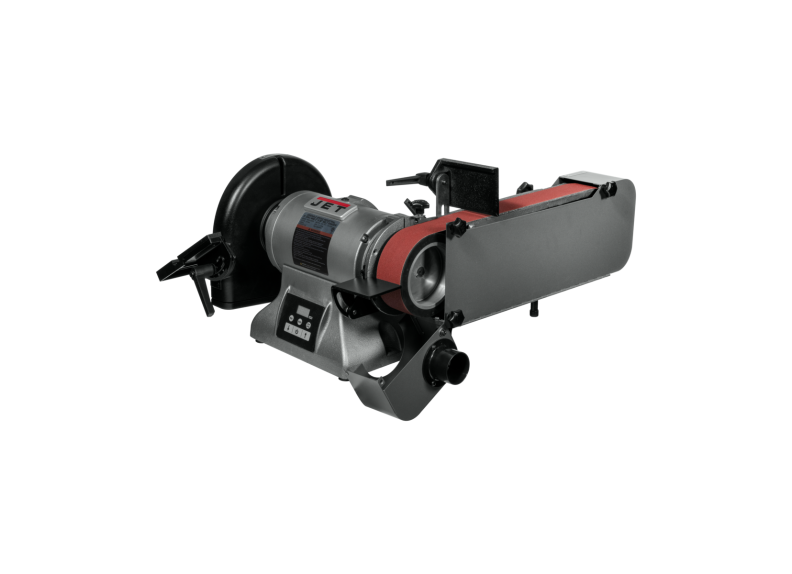

JET IBDG-248VS Variable Speed Industrial 2" x 48" Belt and 9" Disc Grinder by JET is a heavy-duty combination grinding machine built for demanding industrial environments. Engineered with a powerful 1 HP enclosed motor, heavy cast iron construction, and variable speed control ranging from 1,178 - 4,712 SFPM on the belt and 900 - 3,600 RPM on the disc, this grinder delivers precise, high-performance material removal for professional metalworking and fabrication applications. The variable speed models include a brake resistor that allows for rapid stopping of belt and disc movement, enhancing both safety and productivity on the shop floor.

Key Features

• 9" aluminum disc reduces heat buildup and prolongs abrasive life
• Cast iron work rests with tool-less adjustments for quick and convenient setup changes
• Contact wheel grinding with toolless access for fast belt changes and maintenance
• Easy-to-use belt tracking keeps the abrasive belt properly aligned during operation
• Full guarding of all non-work contact points for enhanced operator safety
• Heavy cast iron bases reduce vibration for smoother, more accurate grinding results
• Solid cast iron platen offers a rigid grinding surface for consistent stock removal
• Two dust collection ports minimize debris buildup and help maintain a cleaner work area
• VS model includes a brake resistor which allows for rapid stopping of belt and disc movement
• Digital readout allows operators to accurately monitor RPMs and SFPM
• Electric motor brake quickly stops the wheels from 3,600 RPM to 0 in less than 20 seconds
• CSA/CUS Certified for compliance with North American safety standards
• Sealed bearings and enclosed motor designed for heavy industrial usage

Specifications

• MPN: JT9-577842
• Stock Number: 577842
• Belt Size (W x L): 2 x 48 in.
• Belt Speed: 1178-4712 SFPM
• Belt Grit (Included): 80
• Disc Diameter: 9 in.
• Disc Speed: 900-3600 RPM
• Motor: 1 HP
• Amperage Draw @ 115V 1Ph: 7 A
• Dust Port Size: 2 in.
• Overall Dimensions (L x W x H) - Sanding Bracket Parallel: 23-1/2 x 26-3/4 x 12-1/4 in.
• Overall Dimensions (L x W x H) - Sanding Bracket Vertical: 23-1/2 x 15 x 25-7/8 in.
• Net Weight: 74 lbs.
• Gross Weight: 97 lbs.
• Style (Type): 7
• Prop 65: None
• Country of Origin: Taiwan

Frequently Asked Questions

What is the belt speed range on the IBDG-248VS?

The belt operates at a variable speed range of 1,178 - 4,712 SFPM, allowing operators to dial in the ideal speed for their specific material and grinding application.

How quickly does the brake resistor stop the machine?

The electric motor brake rapidly stops the wheels from 3,600 RPM to 0 in less than 20 seconds, providing a fast and safe shutdown after use.

Why is an aluminum disc used instead of steel?

The 9" aluminum disc is specifically designed to reduce heat buildup during grinding, which helps prolong abrasive life and maintain consistent grinding performance over time.

Does the IBDG-248VS support dust collection?

Yes, the machine is equipped with two dust collection ports that minimize debris buildup, helping keep the work area cleaner and improving visibility during operation.
