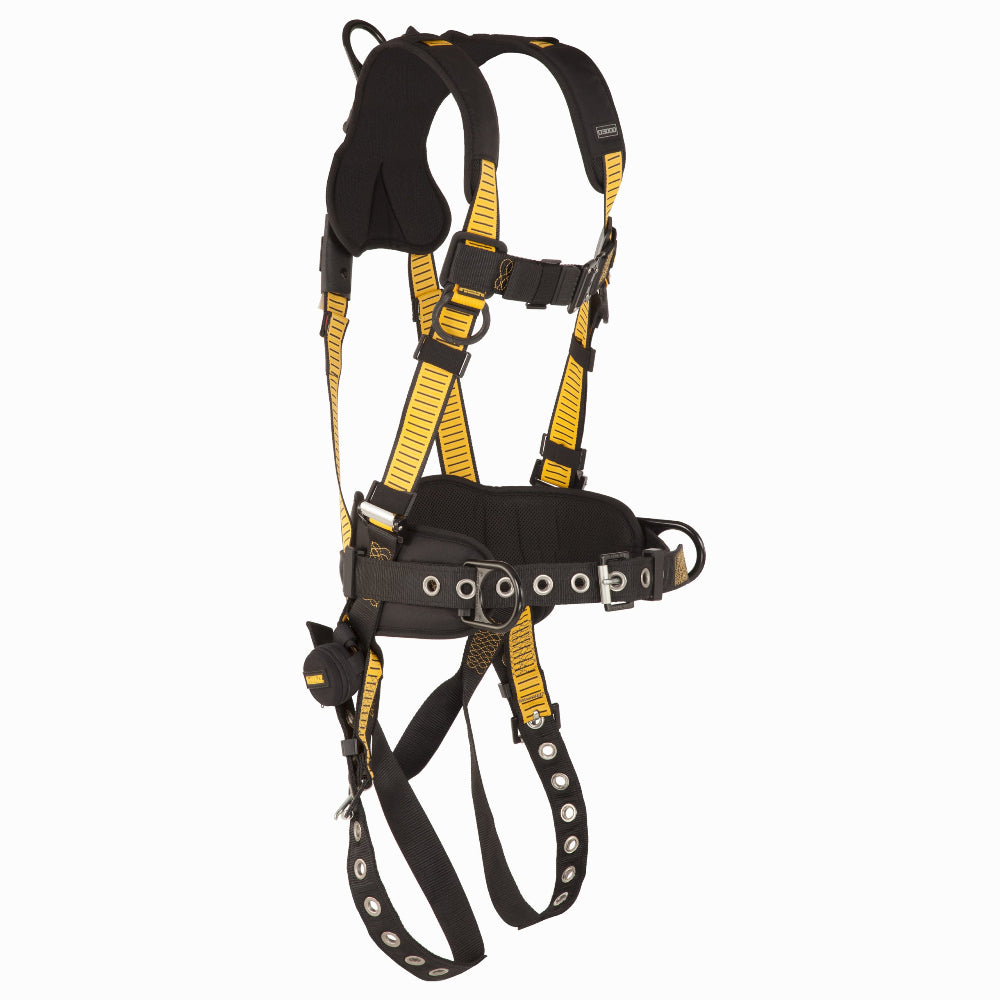

The DeWALT D3000 Vest Style Full Body Harness with Belt is a professional-grade fall protection solution engineered for workers in construction, general industry, and demanding job site environments. Featuring a 5-point attachment system with back and side D-rings, quick connect chest buckles, tongue buckle leg straps, and a padded waist belt, this full body harness delivers versatile anchor point options and all-day wearing comfort. Built with polyester webbing rated to a minimum 5,000 lb. static strength and plated alloy steel hardware, the D3000 meets ANSI Z359.11-21, OSHA 1910.140, and OSHA 1926.502 compliance standards - making it a dependable choice for both construction fall arrest and general industry fall restraint applications. Available in Small-Medium sizing and backed by a 2-year warranty, this vest-style safety harness is designed to handle harsh conditions while keeping setup, inspection, and compliance management fast and straightforward.

Key Features

• 5-point attachment system with back and side D-rings - provides multiple anchor connection points so workers can position themselves correctly for a wide range of tasks and rigging configurations without switching harnesses
• Polyester webbing with repellant coating - actively resists oil and water stains so the harness stays cleaner in harsh environments, making post-shift visual inspections faster and more reliable
• Integrated suspension trauma straps - attached directly to the harness and ready to deploy in the event of a fall, helping reduce the risk of suspension trauma during post-fall hang time
• Quick connect chest buckles - allow fast, tool-free donning and doffing so workers spend less time suiting up and more time on task, reducing frustration on busy job sites
• Tongue buckle leg straps - provide a secure, adjustable lower body fit that stays reliably locked under load and is easy to re-adjust as needed throughout the shift
• Padded waist belt - distributes pressure evenly around the midsection during extended wear, reducing fatigue on long shifts spent working at height
• Plated alloy steel hardware - delivers high tensile strength and durability in corrosive or abrasive job site conditions while maintaining a lighter overall harness weight
• Minimum 5,000 lb. static strength polyester webbing - meets the load rating requirements for fall arrest equipment, giving workers and safety managers confidence in the harness under worst-case fall force conditions
• ANSI Z359.11-21, OSHA 1910.140, and OSHA 1926.502 compliance - satisfies regulatory requirements for both construction and general industry fall protection programs, simplifying jobsite compliance audits
• 2-year warranty - provides documented coverage against manufacturing defects so safety managers can maintain harness programs with confidence in long-term product reliability

Why This Product

• Workers who need one harness to cover multiple job types benefit from the combination of back and side D-rings in a single vest-style design - no need to carry or swap between separate harnesses for different rigging setups
• Job sites subject to OSHA inspection under both 1910.140 (general industry) and 1926.502 (construction) standards can rely on this harness to satisfy both regulatory frameworks simultaneously, reducing compliance complexity
• The repellant-coated webbing and integrated suspension trauma straps address two of the most common practical challenges in fall protection programs - harness maintenance and post-fall emergency response - without requiring add-on accessories
• Small-Medium sizing with adjustable buckle and strap configurations makes this harness suitable for a broad range of worker builds, helping safety managers standardize on a single SKU for a larger portion of their crew

Specifications

• Brand: DeWALT
• Model Number: DXFP532131(S-M)
• Series: D3000
• Style: Vest Style
• Sizing: Small-Medium (S-M)
• Attachment Points: Back D-Ring, Side D-Rings
• Number of Attachment Points: 5-Point
• Chest Buckle Type: Quick Connect (QC)
• Leg Buckle Type: Tongue Buckle (TB)
• Includes Belt: Yes, Padded Waist Belt
• Webbing Material: Polyester with repellant coating
• Minimum Static Strength: 5,000 lb.
• Hardware Material: Plated alloy steel
• Compliance Standards: ANSI Z359.11-21, OSHA 1910.140, OSHA 1926.502
• Warranty: 2 years

Frequently Asked Questions

What compliance standards does the DeWALT D3000 harness meet?

The D3000 is compliant with ANSI Z359.11-21, OSHA 1910.140, and OSHA 1926.502, covering both general industry and construction fall protection requirements. This dual-standard compliance makes it suitable for a wide range of regulated work environments without the need for separate harnesses.

What type of buckles does the D3000 use for the chest and leg straps?

The chest connection uses quick connect (QC) buckles for fast, tool-free donning and doffing, while the leg straps use tongue buckles (TB) for a secure, adjustable lower body fit. This combination balances speed of use with reliable load-bearing performance at the leg attachment points.

What are the integrated suspension trauma straps and why do they matter?

Suspension trauma straps are built directly into the harness and are designed to be deployed after a fall event. They provide a foothold to help maintain blood circulation and reduce the risk of suspension trauma, which can occur when a worker is suspended motionless in a harness for an extended period while awaiting rescue.

What does the repellant coating on the webbing do for the harness?

The repellant coating applied to the polyester webbing actively resists oil and water penetration, helping the harness stay cleaner in messy or wet job site conditions. This makes mandatory pre-use visual inspections faster and more effective, since stains and contamination are less likely to obscure webbing wear or damage.
