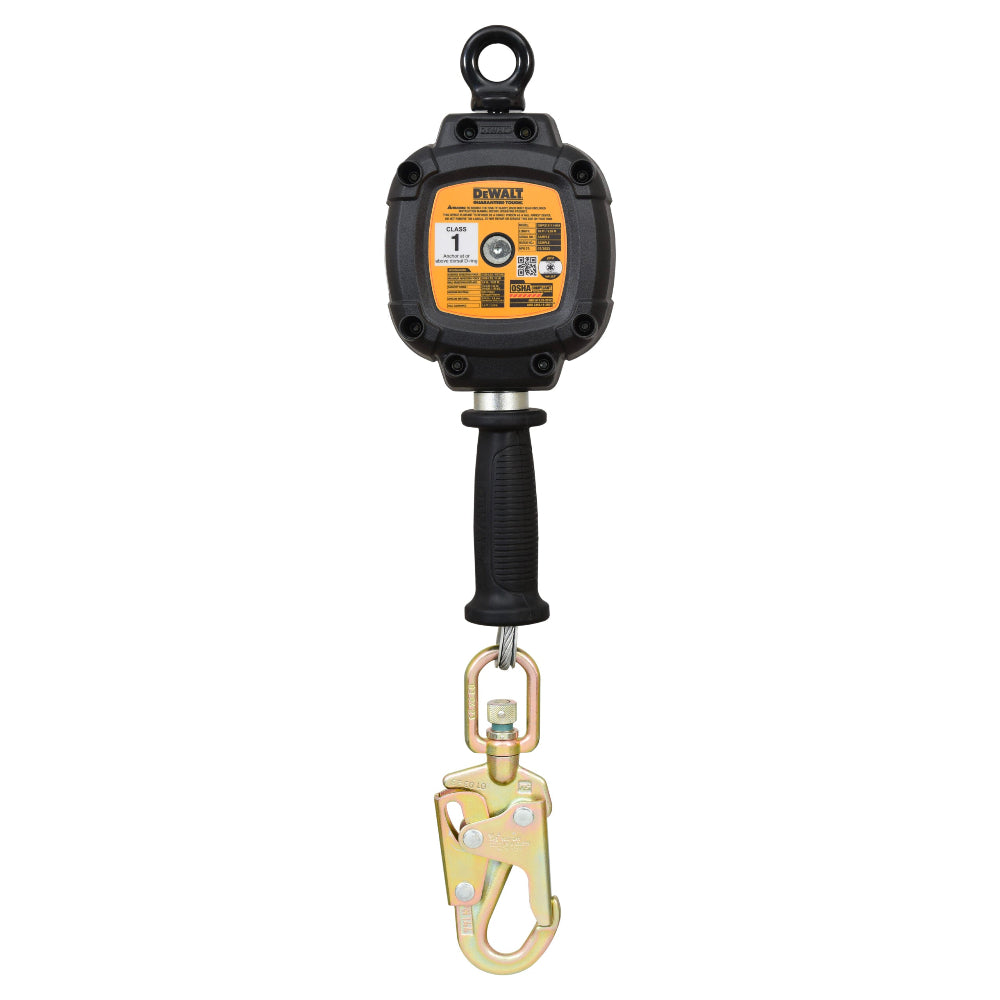

The DeWALT 10 Feet Self Retracting Lifeline with Galvanized Cable (DXFP210111-010) is an anchor-mounted self retracting lifeline engineered for workers who demand dependable, full-range fall protection on construction sites and general industry job sites. Built around a 3/16 in. galvanized steel cable and a high-impact polymer housing, this compact retractable lifeline continuously takes up slack as a worker moves, minimizing free fall distance and reducing arrest forces on the body. Certified to ANSI Z359.14-2021 Class 1, OSHA 1926.502, and OSHA 1910.66, the DeWALT D100 SRL delivers verified fall arrest performance that keeps compliance straightforward and workers protected during every shift at height.

Key Features

• 10 ft. (3.05 m) working length with 3/16 in. (4.8 mm) galvanized steel cable - the retractable lifeline stays taut as workers move throughout their work area, automatically minimizing slack and reducing trip hazards so workers can navigate their task zone with greater confidence and freedom of motion
• Dual weight ratings - ANSI 310 lbs. (141 kg) and OSHA 420 lbs. (191 kg) - a single unit satisfies both ANSI and OSHA capacity requirements, covering a broad range of workers and removing guesswork from compliance across construction and general industry applications
• High impact strength polymer housing - a lightweight yet rugged enclosure protects the internal retraction mechanism from jobsite abuse without adding unnecessary weight, so workers experience less fatigue during extended use at elevation
• Impact indicating snap hook at the harness end - provides a visible, immediate signal when the unit has been subjected to a fall event, enabling supervisors to quickly identify and remove a compromised lifeline from service before another worker is put at risk
• Compliant with ANSI Z359.14-2021 Class 1, OSHA 1926.502, and OSHA 1910.66 - third-party certified standards compliance means this self retracting lifeline can be used with confidence across a wide range of regulated work-at-height environments, from residential construction to general industry platforms

Why This Product

• The 10 ft. retractable cable design is purpose-built for close-anchor applications where a traditional 6 ft. lanyard would not allow enough reach - the extended working length gives workers more range without sacrificing the continuous tension that keeps slack from accumulating underfoot
• Meeting both ANSI Z359.14-2021 Class 1 and dual OSHA standards in a single lifeline simplifies procurement for safety managers who need one product that satisfies multiple regulatory frameworks on the same jobsite
• The impact indicating snap hook creates a clear post-fall inspection checkpoint - rather than guessing whether a lifeline was stressed during a near-miss event, supervisors get a built-in visual indicator that takes the uncertainty out of equipment retirement decisions
• The galvanized steel cable paired with the polymer housing delivers a balance of corrosion resistance and low weight, making this SRL practical for outdoor construction environments where moisture exposure and tool-belt clutter are both everyday realities

Specifications

• Brand: DeWALT
• Model Number: DXFP210111-010
• Series: D100
• Working Length: 10 ft. (3.05 m)
• Cable Material: 3/16 in. (4.8 mm) Galvanized Steel
• Housing Material: High Impact Strength Polymer
• ANSI Weight Rating: 310 lbs. (141 kg)
• OSHA Weight Rating: 420 lbs. (191 kg)
• Standards Compliance: ANSI Z359.14-2021 Class 1, OSHA 1926.502, OSHA 1910.66
• Connector Type: Impact Indicating Snap Hook (harness end)
• Mounting Style: Anchor-Mounted

Frequently Asked Questions

What standards does this self retracting lifeline comply with?

This lifeline is certified compliant with ANSI Z359.14-2021 Class 1, OSHA 1926.502 (construction fall protection), and OSHA 1910.66 (general industry), making it suitable for a wide range of regulated work-at-height applications.

What is the maximum weight capacity of this SRL?

This self retracting lifeline carries dual weight ratings - 310 lbs. (141 kg) per ANSI requirements and 420 lbs. (191 kg) per OSHA requirements - covering a broad range of workers under both regulatory frameworks.

What does the impact indicating snap hook do and why does it matter?

The impact indicating snap hook at the harness end provides a visible indicator when the lifeline has experienced a fall event. After any fall or significant shock load, the hook's indicator signals that the unit must be removed from service and inspected or replaced - this helps prevent a compromised lifeline from being unknowingly used again.

How does a self retracting lifeline differ from a standard shock-absorbing lanyard for construction use?

Unlike a fixed-length lanyard, this self retracting lifeline automatically keeps the cable taut as the worker moves, continuously retracting and extending to match their position. This minimizes the amount of slack that can accumulate, which in turn reduces free fall distance and the arrest forces experienced by the body during a fall - key advantages over traditional 6 ft. shock-absorbing lanyards in close-anchor applications.
