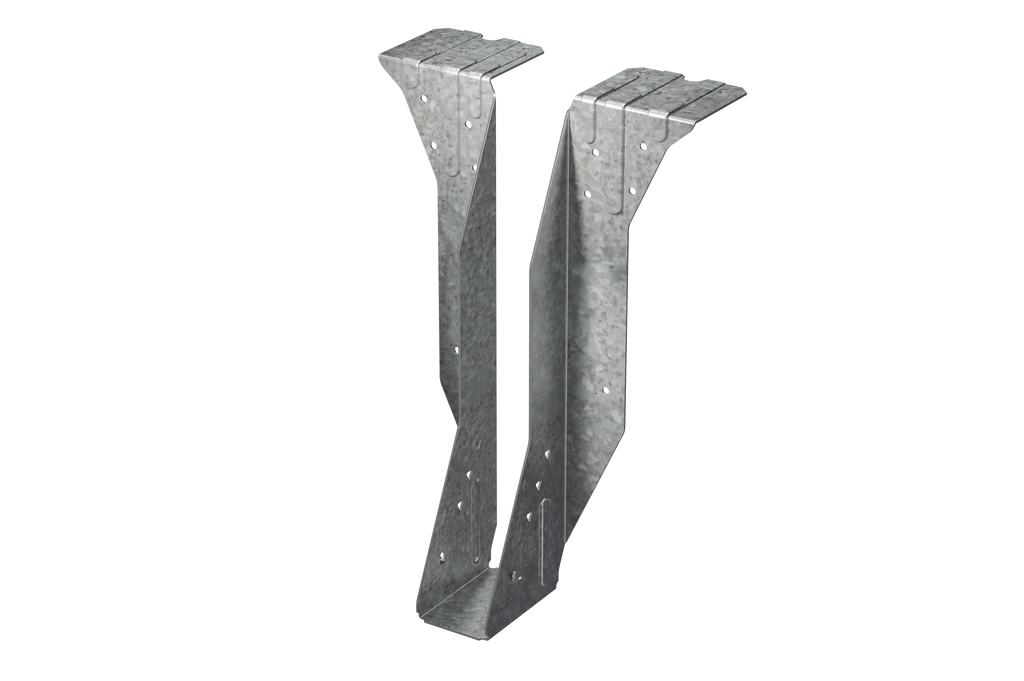

The Simpson BA1.81/7.25 BA Top-Flange Joist Hanger from Simpson is a cost-effective framing connector designed for 1-3/4 in. x 7-1/4 in. engineered wood and solid sawn lumber members. Built to carry medium loads with solid sawn lumber and higher loads with engineered wood products, this top-flange hanger gives framers and structural designers a reliable, versatile solution for a wide range of floor and roof framing applications. Min./max. nailing options add further flexibility, allowing the same hanger to meet varying load demands without switching hardware.

Key Features

• Two-level embossment at the top flange - provides increased stiffness, giving the hanger greater structural rigidity where it matters most and reducing flex under load.
• Full-height joist flange design - captures the top chord of the joist to prevent rotation and eliminate the need for web stiffeners, saving installation time and reducing material costs.
• Min./max. nailing options - minimum nailing targets moderate load demands, whereas maximum nailing allows higher loads, so one hanger handles a broader range of structural requirements without swapping components.
• Available for special order to accommodate sloped and/or skewed members - makes the BA series adaptable to complex framing geometry where standard-orientation hangers cannot be used.
• 14-gauge steel construction - delivers a solid strength-to-weight ratio suited to medium and higher load joist hanger applications in both residential and light commercial framing.
• Zinc galvanized G90 finish - provides extra corrosion resistance, helping the hanger maintain structural integrity in moisture-prone framing environments over the long term.

Why This Product

• Engineered wood and solid sawn lumber compatibility - the BA series is purpose-built to perform with both material types, making it a practical single-SKU choice for mixed framing projects where lumber species or product type may vary.
• No web stiffeners required - the full-height joist flange eliminates a common extra step in joist hanger installation, reducing labor time and the need for additional blocking or reinforcement materials.
• Flexible load capacity through nailing pattern - the ability to dial load capacity up or down simply by adjusting the nailing pattern means this hanger adapts to the job rather than requiring a different product for each load condition.
• Domestic manufacturing and G90 galvanized finish - the combination of 14-gauge steel and a G90 zinc galvanized coating means builders get a corrosion-resistant, structurally sound connector that is built to last in demanding framing conditions.

Specifications

• MPN: BA1.81/7.25
• Member Size: 1-3/4 in. x 7-1/4 in.
• Gauge: 14
• Coating/Finish: Zinc Galvanized, G90
• Install With: 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist
• Country of Origin: United States

Options

• Other widths are available; specify W dimension (the minimum W dimension is 1 9/16").

• For modified hangers, fastener quantity listed in tables may need to increase depending on joist size, skew and slope. All modified hangers are 12 ga.
• Hangers may be modified for slopes and/or skews up to 45 deg.. The top flanges may be sloped as much as 35 deg. and may be open or closed up to 30 deg.. See Modifications and Associated Load Reductions under Specifications
• Contact us for Customizations and Special orders

Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
