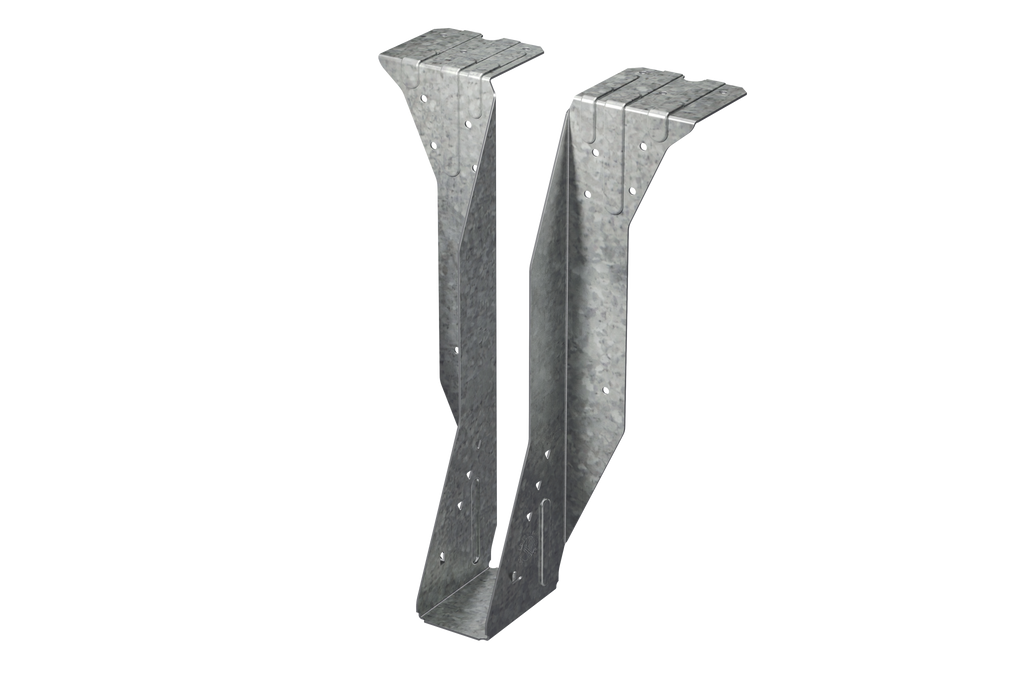

The Simpson BA1.81/16 Top-Flange Joist Hanger is built for engineered wood product framing and solid sawn lumber applications where reliable joist-to-header connections are essential. Designed to fit a 1-3/4 in. x 16 in. member, this top-flange hanger delivers medium load capacity with solid sawn lumber and higher load capacity when paired with engineered wood products. The BA series supports flexible nailing configurations - minimum nailing with positive-angle nailing (PAN) targets moderate load conditions, while maximum nailing accommodates higher load demands - giving framers precise control over performance without overbuilding.

Key Features

• Cost-effective one-piece design - eliminates the expense and variability of welded hangers, providing consistent strength from a single formed component
• Full-height joist flange - captures the top chord of the joist to prevent rotation and eliminate the need for web stiffeners, reducing material costs and installation steps
• Positive-angle nailing (PAN) support - allows minimum nailing for moderate load conditions, making installation faster while still meeting structural requirements
• Maximum nailing configuration - unlocks higher load capacity when engineered wood products are used, giving one hanger the flexibility to serve a wider range of framing scenarios
• 14-gauge steel construction - provides the structural rigidity needed for demanding residential and commercial framing applications
• G90 zinc galvanized finish - delivers extra corrosion resistance, extending service life in moisture-prone framing environments
• Available modified for sloped and/or skewed members - accommodates non-standard framing conditions, including slopes and skews up to 45 deg., so the hanger adapts to complex roof and floor framing layouts

Why This Product

• Dual-application versatility - a single hanger model supports both engineered wood products and solid sawn lumber at the same 1-3/4 in. x 16 in. member size, reducing the number of SKUs a framer needs to stock on the job site
• Rotation control without extra hardware - the full-height joist flange captures the top chord and eliminates the need for web stiffeners, cutting both material costs and installation time on every joist connection
• Scalable load performance - the choice between minimum PAN nailing and maximum nailing lets installers dial in the right load rating for the application rather than defaulting to a heavier, more expensive connector
• Corrosion-resistant finish for long-term reliability - the G90 zinc galvanized coating goes beyond standard galvanizing, making this hanger a sound choice for framing assemblies where moisture exposure is a concern

Specifications

• Model No.: BA1.81/16
• Member Size: 1-3/4 in. x 16 in.
• Steel Gauge: 14
• W (in.): 1-4/5
• H (in.): 16
• B (in.): 3
• TF (in.): 2-1/2
• Coating / Finish: Zinc Galvanized, G90
• Country of Origin: United States

Approved Applications

• Engineered wood product framing applications requiring top-flange hanger support
• Solid sawn lumber framing applications at medium load conditions
• Framing assemblies where web stiffeners are undesirable or impractical
• Applications requiring positive-angle nailing (PAN) for moderate loads
• Applications requiring maximum nailing configurations for higher load demands

Installation

• Install with 0.162 in. x 3-1/2 in. nails in the header
• Install with 0.148 in. x 1-1/2 in. nails in the joist

Options

• Other widths are available; specify W dimension (the minimum W dimension is 1 9/16").

• For modified hangers, fastener quantity listed in tables may need to increase depending on joist size, skew and slope. All modified hangers are 12 ga.
• Hangers may be modified for slopes and/or skews up to 45 deg.. The top flanges may be sloped as much as 35 deg. and may be open or closed up to 30 deg.. See Modifications and Associated Load Reductions under Specifications
• Contact us for Customizations and Special orders
