Product Features
Product Description

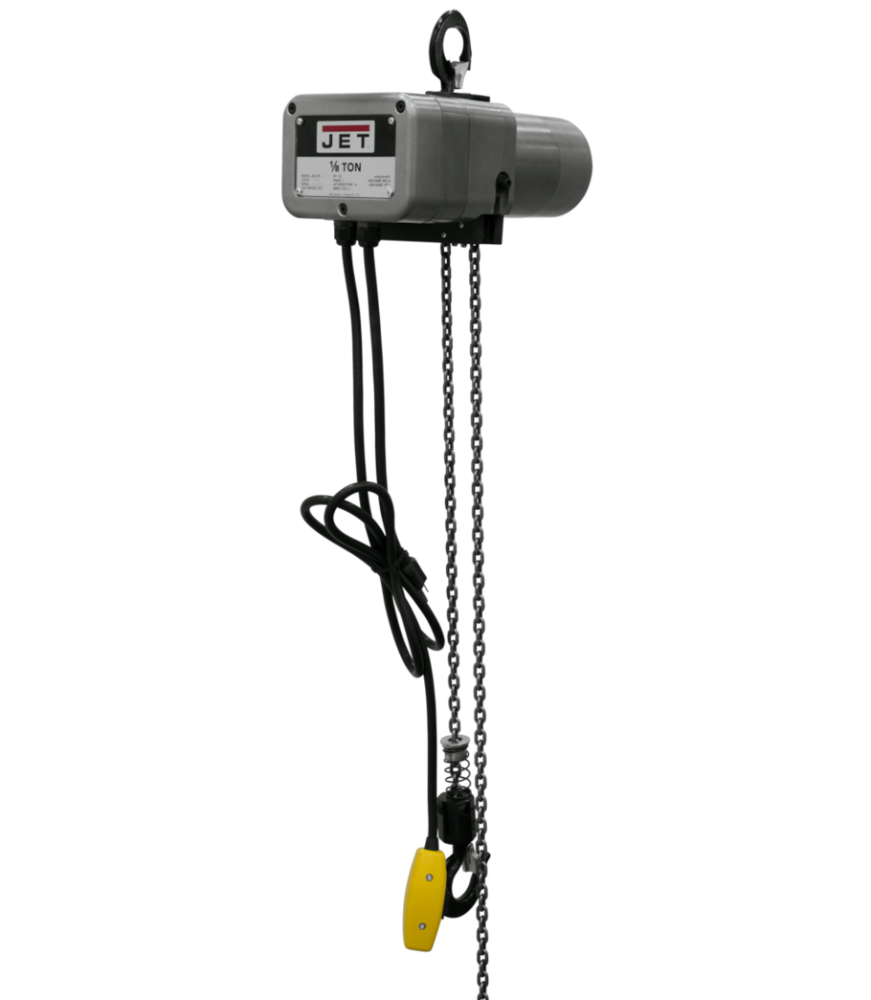

The JET JSH-275-15 1/8-Ton Electric Chain Hoist by JET is a lightweight, durable solution engineered for light-duty commercial and industrial lifting applications. With a 250 lb. capacity and a 15-foot lift, this 1-phase electric hoist combines an aluminum alloy housing for easy portability with a Grade 80 load chain and heat-treated alloy steel gears for long-lasting, reliable performance.
Key Features
- Aluminum Alloy Housing: Aluminum alloy housing decreases the weight for convenient transportation, making it easy to reposition and deploy across job sites.
- Grade 80 Load Chain: Grade 80 black oxide coated load chain for durability, providing exceptional strength and corrosion resistance under demanding load conditions.
- Heat Treated Gears: Heat treated alloy steel geared drive train for long lasting durability, ensuring reliable power transmission through repeated heavy-use cycles.
- Upper and Lower Limit Switches: Upper and lower limiting switches increase safety by preventing the load chain from over traveling, protecting both the load and the hoist mechanism.
- Slip Clutch Overload Protection: Built-in mechanism prevents the hoist from lifting loads above its rated capacity, guarding against damage caused by overloading.
- Thermal Overload Protection: Integrated thermal overload protection system keeps the hoist from overheating during extended operation.
- Magnetic Disk Brake: Industry-proven magnetic disk brake ensures rapid stops and secures the load in place for enhanced safety.
- Maintenance-Free Gear Train: Sealed oil bath design eliminates routine maintenance on the gear train, reducing downtime.
Specifications
- Stock Number: 110115
- Capacity: 250 lbs.
- Load Capacity (Tons): 1/8
- Lift: 15 ft.
- Lifting Speed: 16 FPM
- Motor: 1/6 HP, 115V, 1 Phase
- Duty Cycle: 25%
- Duty Cycle Rating: H3
- Max. Number of Starts (Per Hr.): 150
- Max. On Time: 15 min./hr.
- Headroom: 15-1/4 in.
- Overall Width: 8.61 in.
- Weight: 32.4 lbs.
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- Is the JET JSH-275-15 rated for outdoor or wet environment use?
- No. JET VOLT and SSC Series Electric Hoists and JET ET Series Electric Trolleys are not rated or designed for outdoor use or wet environments. This hoist is intended for indoor, dry-environment applications only.
- What type of load chain does this hoist use?
- This hoist uses a Grade 80 black oxide coated load chain, selected for its durability and strength under repeated loading conditions.
- How does the hoist protect against accidental overloading?
- The hoist incorporates a slip clutch overload protection mechanism that prevents it from lifting loads above its 250 lb. rated capacity, helping to protect both the hoist and the load from damage.
- What safety features prevent the chain from over traveling?
- Upper and lower limiting switches are built into the hoist to increase safety by preventing the load chain from over traveling in either direction during operation.
