Product Features
Product Description

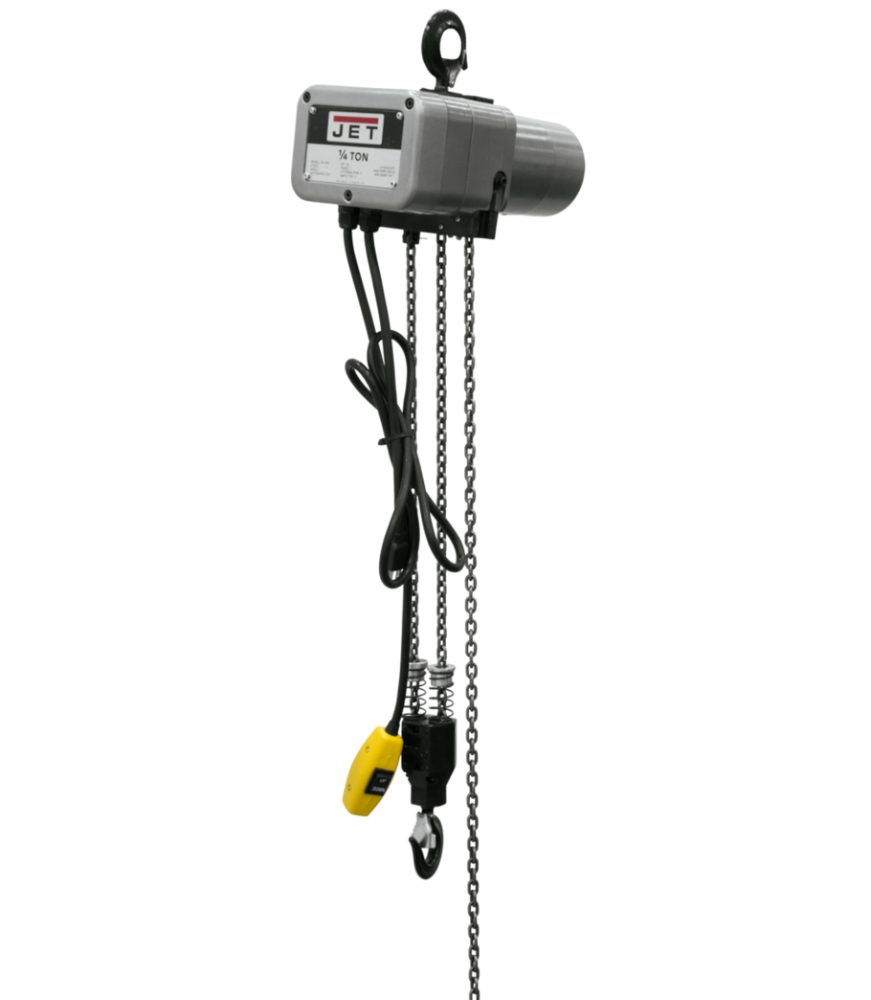

The JET 1/4-Ton Electric Chain Hoist 1-Phase 10' Lift JSH-550-10 by JET delivers a dependable combination of safety, durability, and portability for light duty commercial and industrial lifting applications. With a 500 lb. rated capacity and a lightweight aluminum alloy housing, this electric chain hoist is engineered for efficient, long-lasting performance across a wide range of overhead lifting tasks.
Key Features
- Aluminum Housing: Aluminum alloy housing decreases the weight for convenient transportation
- Grade 80 Load Chain: Grade 80 black oxide coated load chain for durability
- Heat Treated Gears: Heat treated alloy steel geared drive train for long lasting durability
- Limit Switches: Upper and lower limiting switches increase safety by preventing the load chain from over traveling
- Slip Clutch Overload Protection: Prevents the hoist from lifting loads above its rated capacity, protecting both the equipment and the load
- Built-In Thermal Overload Protection: Keeps the hoist from overheating during operation
- Magnetic Disk Brake: Industry proven magnetic disk brake increases safety by ensuring rapid stops and securing the load
- Maintenance-Free Gear Train: Sealed oil bath gear train eliminates the need for routine maintenance
- Indoor Use: JET VOLT and SSC Series Electric Hoists and JET ET Series Electric Trolleys are not rated or designed for outdoor use or wet environments
Specifications
- MPN: JT9-110110
- Stock Number: 110110
- Capacity: 500 lbs
- Load Capacity (Tons): 1/4
- Lift: 10 ft.
- Lifting Speed: 8 FPM
- Motor: 1/6 HP, 115V, 1 Ph
- Duty Cycle: 25%
- Duty Cycle Rating: H3
- Max. Number of Starts (Per Hr.): 150
- Max. On Time: 15 Min. / Hr.
- Headroom: 17-1/10 in.
- Overall Width: 6.81 in.
- Weight: 34.6 lbs.
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What is the maximum load capacity of the JET JSH-550-10 electric chain hoist?
- This hoist has a rated capacity of 500 lbs. (1/4 ton). It is equipped with a slip clutch overload protection mechanism that prevents the hoist from lifting loads above this rated capacity.
- Can this hoist be used outdoors or in wet environments?
- No. JET VOLT and SSC Series Electric Hoists and JET ET Series Electric Trolleys are not rated or designed for outdoor use or wet environments. This hoist should only be used in dry, indoor settings.
- What type of load chain does the JSH-550-10 use?
- The hoist uses a Grade 80 black oxide coated load chain, which is selected for its durability and strength in demanding lifting applications.
- What safety features are built into this electric chain hoist?
- The JET JSH-550-10 includes several safety features: upper and lower limit switches that prevent the load chain from over traveling, a slip clutch overload protection mechanism, a built-in thermal overload protection system to prevent overheating, and an industry proven magnetic disk brake that ensures rapid stops and secures the load.
