The Simpson 4.62 in End Column Cap L-Shaped for GFCMU and Concrete Piers is an engineered structural connector built for raised pier foundation construction at building corners, where heavy beams bear on concrete or concrete block (CMU) columns. Manufactured in the United States by Simpson, this L-shaped kit delivers the uplift and lateral resistance required for high-wind regions, while the included MSTQM straps and Strong-Drive SDS screws create a continuous load path from the column cap to the wall framing for a code-compliant connection.

Key Features

• L-shaped end column cap configuration - designed specifically for building corner installations, ensuring a flush edge fit where a standard cap cannot be used
• 7-gauge steel construction with Simpson Strong-Tie Gray Paint finish - provides heavy-duty structural integrity and corrosion resistance suited to demanding foundation environments
• Includes MSTQM straps and 1/4 in. x 2 1/2 in. Strong-Drive SDS Heavy-Duty Connector screws - everything needed to complete a continuous load path from the column cap to wall framing is provided in one kit, reducing the need to source additional hardware separately
• Compatible with concrete and GFCMU (concrete block) columns - engineered for both pier types, giving builders flexibility across raised pier foundation projects without switching connectors
• Engineered for high-wind uplift and lateral resistance - supports structural performance in regions where wind loading demands a verified, load-rated connection at the column-to-beam interface
• Requires minimum (4) #7 vertical rebar in the pier - clear rebar requirements make it straightforward to plan compliant piers and avoid under-reinforced installations

Why This Product

• Purpose-built for corner pier applications - the L-shaped geometry addresses a specific structural condition that standard column caps cannot accommodate, making this the correct solution for raised pier foundation corners rather than a workaround
• Complete kit means fewer gaps at the jobsite - the included MSTQM straps and Strong-Drive SDS screws are matched to the connector from the start, so the load path is complete without hunting for compatible supplemental hardware
• American-made, heavy-gauge steel construction - 7-gauge steel and Simpson Strong-Tie Gray Paint deliver the structural mass and finish quality expected in long-term foundation applications, whether the pier is concrete or CMU block
• Engineered uplift and lateral resistance for high-wind regions - for builders working in wind-prone areas, this connector is specifically approved for high-wind applications, providing documented performance where it matters most

Specifications

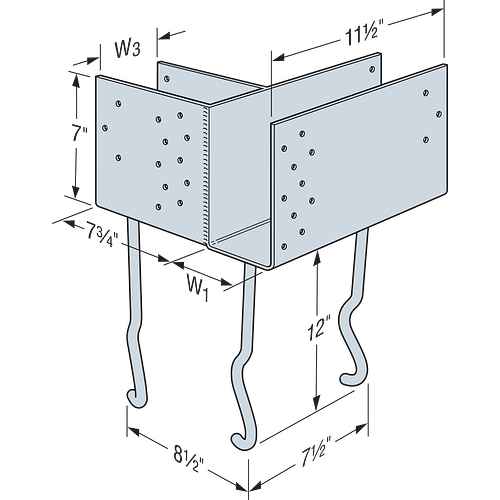

• Model Number: ECCLQM4.62-KT
• Main Channel Width (W1): 4-5/8 in.
• Side Stirrup Width (W3 and W4): 4-5/8 in.
• Main Channel Length (L1): 11-1/2 in.
• Side Stirrup Length (L2): 7-3/4 in.
• Material: 7-Gauge Steel
• Finish: Simpson Strong-Tie Gray Paint
• Country of Origin: United States

Approved Applications

• Raised pier foundation construction at building corners
• Applications where heavy beams rest on concrete or concrete block (CMU) columns
• High-wind regions requiring engineered uplift and lateral resistance
• Concrete pier and GFCMU column connections requiring a flush edge installation
• Structures requiring continuous load path from column cap to wall framing

What's Included

• 1x ECCLQM4.62 End Column Cap (L-shaped, 7-gauge steel, Simpson Strong-Tie Gray paint)
• MSTQM straps for connection from the ECCLQM to the wall framing
• 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws (provided in all round holes)

Installation Notes

• Install 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws (provided) in all round holes. Lag screws will not achieve the same load.
• Minimum (4) #7 vertical rebar (total for pier) is required.

Options

• Contact us for Configurable Options and Special orders
• Available in widths up to nominal 7-1/8" width.
• For variable widths on side stirrups, specify W3 (3 1/4" to 7 1/8") and add an "X" to the end of the core model name. Example: ECCLQM5.50GX-KT, W3 = 3 5/8

Frequently Asked Questions

What type of foundation or structure is the ECCLQM4.62-KT designed for?

The ECCLQM4.62-KT is engineered specifically for raised pier foundations and structural applications where heavy beams bear on concrete or concrete block (CMU) columns. It is intended for use at building corners, making it suitable for corner installations in raised pier foundation systems.

What components are included in the ECCLQM4.62-KT kit?

The kit includes a heavy-gauge L-shaped beam seat, Simpson Strong-Tie SSTB anchor bolts, MSTQM straps, and screws. The MSTQM straps connect the column cap to the wall framing to establish a continuous load path, and the screws are configured to provide high uplift design values.

Why is this column cap described as L-shaped, and why does that matter?

The L-shape is specifically designed for building corner installations, providing a precise fit at critical corner connection points. This geometry ensures structural integrity where two wall lines meet, making it the appropriate choice when a standard inline column cap would not suit the corner configuration.

How does the ECCLQM4.62-KT resist wind uplift forces?

The connector is designed with high uplift resistance through a combination of certified welds, screws configured for high uplift design values, and MSTQM straps that create a continuous load path from the column cap to the wall framing. The included SSTB anchor bolts also feature an offset that allows flush installation to the edge of the pier, contributing to a secure, code-compliant connection.
