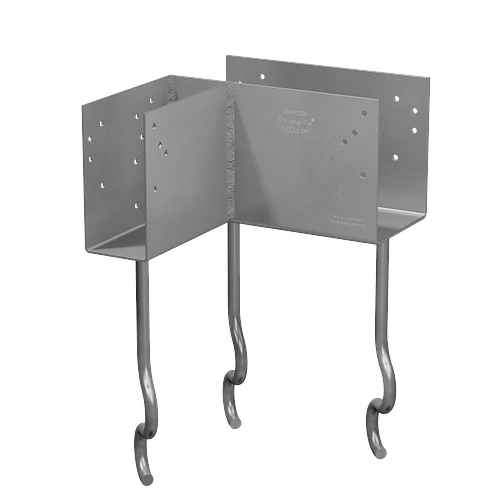

The Simpson 3.62 Inch End Column Cap L-Shaped for GFCMU and Concrete Piers is a heavy-duty connector kit from Simpson engineered to anchor heavy beams to concrete or concrete block (CMU) columns at building corners and raised pier foundations. The L-shaped profile pairs an embedded column cap with MSTQM straps and pre-selected Strong-Drive SDS screws, delivering a complete, field-ready connection solution built for high-wind zone construction and applications demanding certified uplift and lateral resistance.

Key Features

• L-Shaped (Corner / End) profile - purpose-built for building corner column cap connections, so the hardware fits the geometry of the installation without field modification.
• 7-Gauge steel construction - provides the structural mass required to resist the uplift and lateral forces common in raised pier and GFCMU pier applications.
• Simpson Strong-Tie Gray paint finish - protects the steel through the construction phase and beyond, reducing the risk of surface degradation before the structure is enclosed.
• Compatible with GFCMU and concrete pier systems - verified for use across Grade Foundation CMU piers and standard concrete piers, giving contractors a single connector that covers multiple substrate types.
• Kit includes MSTQM straps and 1/4 in. x 2 1/2 in. Strong-Drive SDS Heavy-Duty Connector screws - every component needed for a complete connection arrives together, eliminating the guesswork of sourcing matching hardware separately.
• Integral anchor bolt offset designed for flush pier-edge installation - allows the cap to sit flush to the edge of the pier so no additional standoff blocking or shimming is required.
• SSTB anchor bolt spacing calibrated to standard CMU cells - ensures a clean, code-ready fit within standard masonry cell layouts, reducing layout time on the jobsite.

Why This Product

• A true all-in-one kit for corner pier connections - the embedded column cap, MSTQM straps, and correctly sized SDS screws are packaged together, so installers have a pre-matched, code-consistent assembly from the start rather than assembling components from separate sources.
• Engineered specifically for high-wind and high-uplift demands - the combination of 7-gauge steel, SDS screw fastening (not lag screws), and compatibility with a minimum of four No. 7 vertical rebar means the connection is configured to meet the performance thresholds that high-wind zone projects require.
• Designed around standard CMU and concrete pier geometry - flush pier-edge installation and cell-aligned anchor bolt spacing mean the product works with existing foundation layouts rather than requiring special modifications, saving time and reducing installation error.
• American-made product from a recognized structural connector brand - produced in the United States by Simpson, a name specifiers and contractors reference directly in structural plans, which supports smooth plan review and inspection approval.

Specifications

• Model Number: ECCLQM3.62-KT

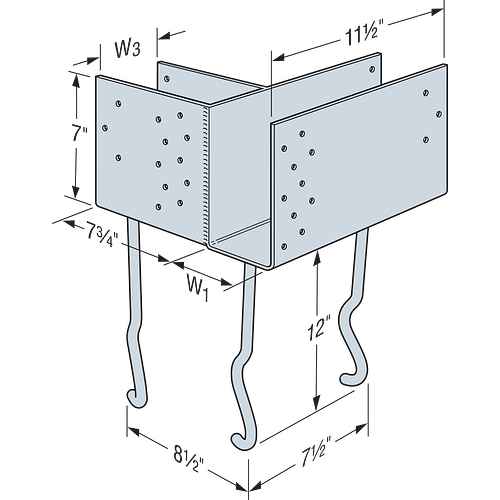

• Main Channel Width (W1): 3 5/8 in.
• Side Stirrup Width (W3 and W4): 3 5/8 in.
• Main Channel Length (L1): 11 1/2 in.
• Side Stirrup Length (L2): 7 3/4 in.
• Material: 7-Gauge Steel
• Finish: Simpson Strong-Tie Gray Paint
• Profile: L-Shaped (Corner / End)
• Compatible Systems: GFCMU & Concrete Piers
• Country of Origin: United States

Approved Applications

• Raised pier foundations with concrete or concrete block (CMU) columns
• Heavy beam-to-column connections on concrete piers
• Building corner column cap connections requiring high uplift resistance
• High-wind zone construction requiring certified weld and uplift performance
• GFCMU (Grade Foundation CMU) pier systems
• Applications requiring flush installation to the edge of the pier

What's Included

• 1x ECCLQM3.62 Embedded Column Cap (L-shaped)
• MSTQM straps for wall framing connection
• 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws (for use in all round holes)

Installation Notes

• Install 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws (provided) in all round holes. Lag screws will not achieve the same load.
• Minimum (4) #7 vertical rebar (total for pier) required.

Options

• Contact us for Configurable Options and Special orders
• Available in widths up to nominal 7-1/8" width.
• For variable widths on side stirrups, specify W3 (3 1/4" to 7 1/8") and add an "X" to the end of the core model name. Example: ECCLQM5.50GX-KT, W3 = 3 5/8".

Frequently Asked Questions

What type of foundation applications is the ECCLQM3.62-KT designed for?

The ECCLQM3.62-KT is engineered specifically for raised pier foundations where heavy beams bear on concrete or concrete block (CMU) columns. Its L-shaped design makes it purpose-built for corner applications at these types of foundations.

What components are included in the ECCLQM3.62-KT kit?

The kit includes the ECCLQM embedded column cap, MSTQM straps, and pre-selected screws. The MSTQM straps make the structural connection from the ECCLQM cap to the wall framing, and the screws are configured to provide high uplift design values.

What is the main channel width of the ECCLQM3.62-KT, and what gauge steel is used?

The main channel width (W1) is 3 5/8 in., and the connector is constructed from 7-gauge steel with a Simpson Strong-Tie Gray paint finish.

How does the SSTB anchor bolt design simplify installation on CMU piers?

The integral SSTB anchor bolt offset allows for flush installation to the edge of the pier, and the SSTB spacing is calibrated to fit standard CMU cells, resulting in a clean, code-ready installation without the need for custom adjustments.
