Product Description

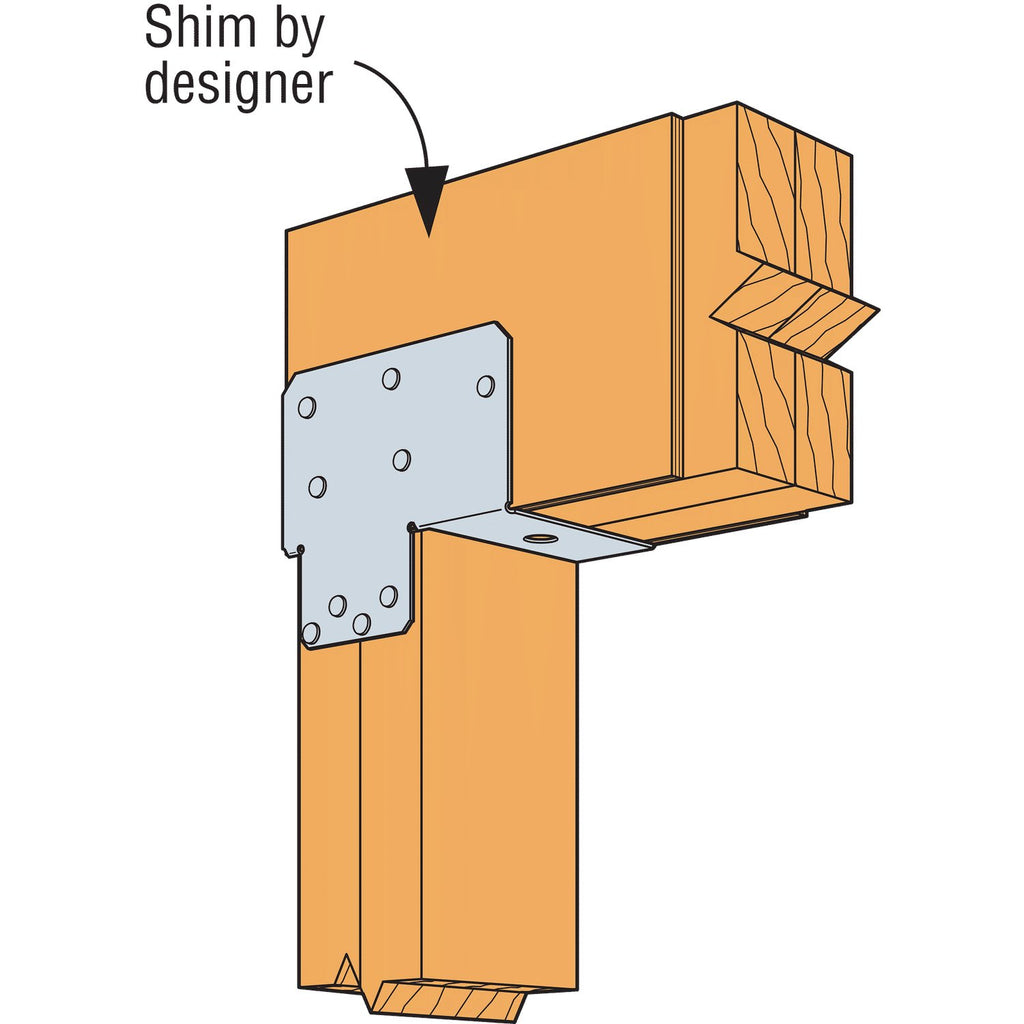

The Simpson Strong-Tie EPC4Z End Post Cap for 4x is a ZMAX galvanized structural connector engineered for post-to-beam end conditions. Designed by Simpson Strong-Tie, this end post cap features post and beam flanges in-line, allowing a single model to accommodate several post sizes for versatile, fast, and easy installation.
Key Features
- The ZMAX finish is standard to meet exposure conditions in many environments
- Easy installation with 0.148 in. x 3 in. nails or Strong-Drive SD Connector screws
- Seat width: 3-9/16 in.
- Nominal post size: 4x
- Made from 16-gauge steel

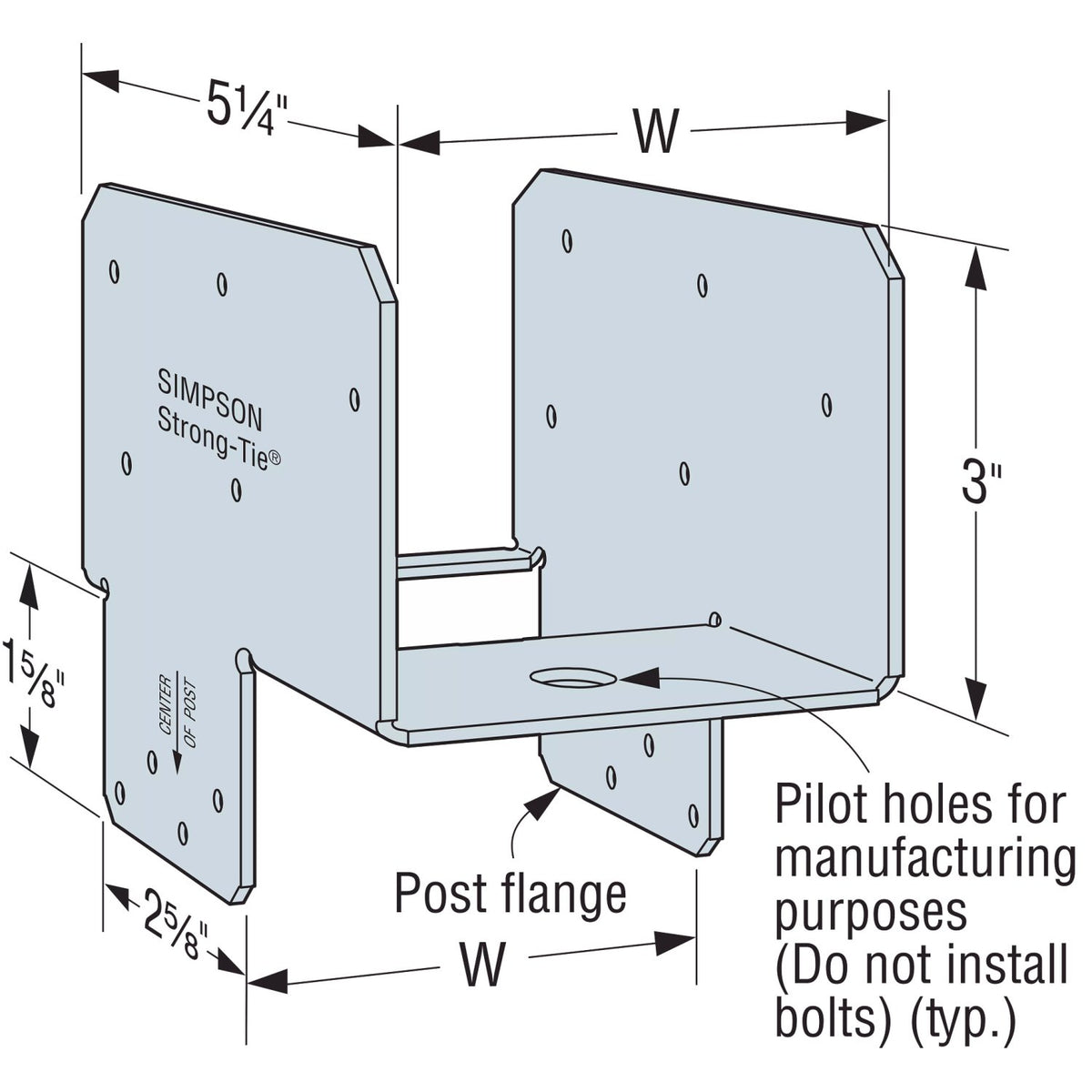

- Post and beam flanges in-line so that one model can accommodate several post sizes
- Designed for solid sawn and rough lumber post-to-beam connections
- Made in the United States
Specifications
- Model Number: EPC4Z
- Nominal Post Size: 4x
- Gauge: 16
- Seat Width: 3-9/16 in.
- Coating/Finish: ZMAX
- Installation Fasteners: Installs with 0.148 in. x 3 in. nails or the #9 x 1-1/2 in. Strong-Drive SD Connector screw (sold separately)
- Width: 3-9/16 in.
- Country of Origin: United States
Downloads and Resources
Frequently Asked Questions
- What type of connection is the EPC4Z designed for?
- The EPC4Z is designed for post-to-beam end conditions, providing a fast and easy end post cap connection for 4x solid sawn and rough lumber posts.
- What fasteners are required to install the EPC4Z?
- The EPC4Z installs with 0.148 in. x 3 in. nails or the #9 x 1-1/2 in. Strong-Drive SD Connector screw.
- What does the ZMAX finish provide?
- The ZMAX finish is standard on the EPC4Z to meet exposure conditions in many environments, offering enhanced corrosion resistance compared to standard galvanized coatings.
- Can one EPC4Z model fit multiple post sizes?
- Yes. Because the post and beam flanges are in-line with each other, one EPCZ model can accommodate several post sizes, adding flexibility to your post-to-beam end connection applications.
