Product Description

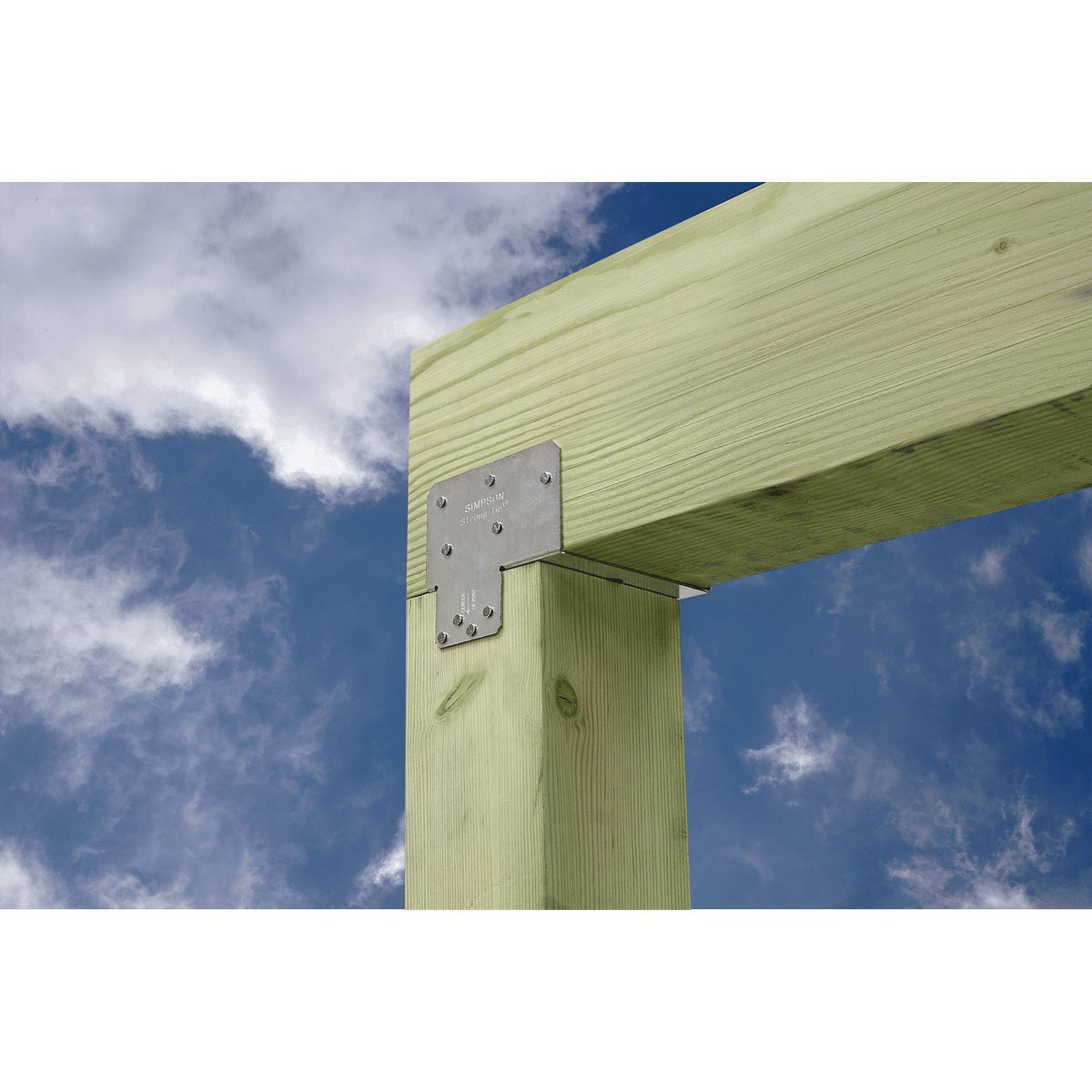

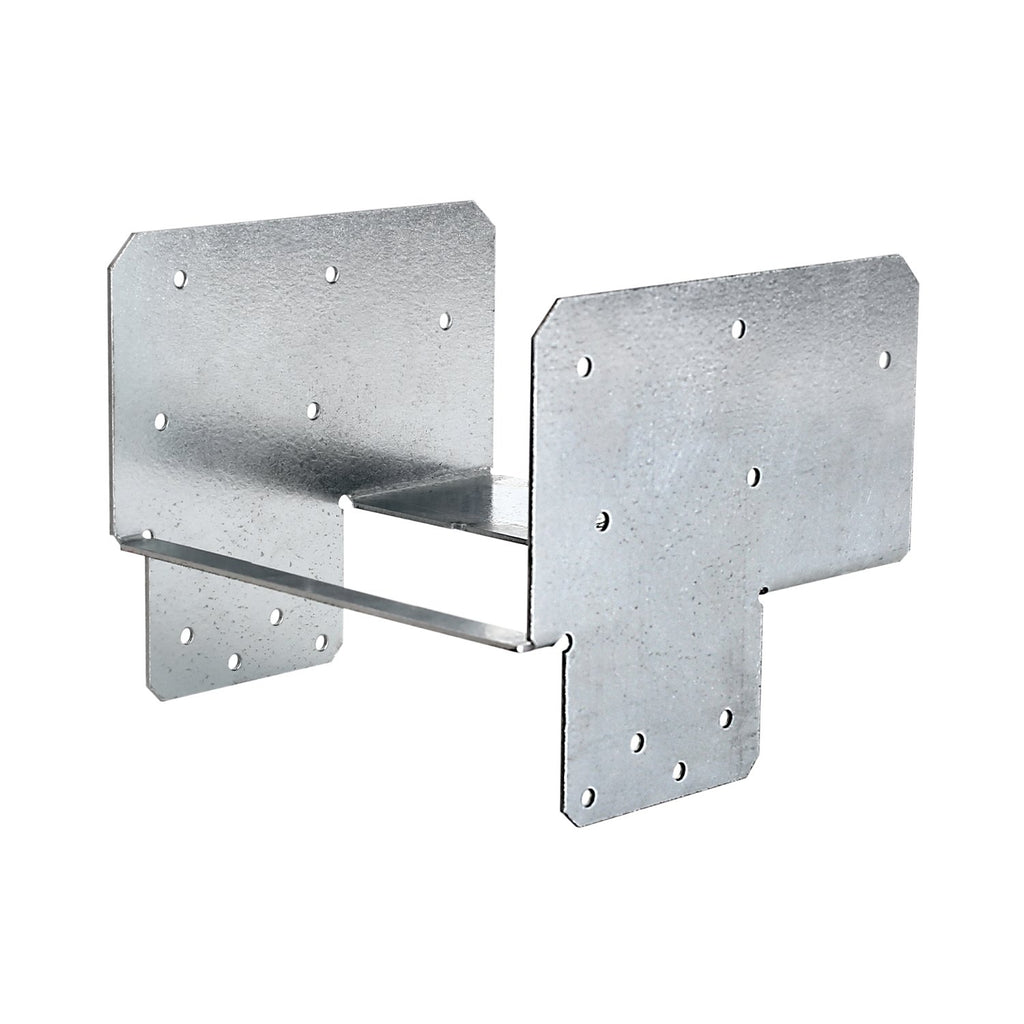

The Simpson Strong-Tie EPC6Z End Post Cap for 6x is a ZMAX galvanized structural connector engineered for post-to-beam end conditions. Designed for fast and easy installation, this end post cap features post and beam flanges positioned in-line, allowing a single model to accommodate several post sizes in solid sawn and rough lumber applications. The heavy-duty 16-gauge steel construction and ZMAX protective finish make it well suited for use in a wide range of exposure environments.
Key Features
- The ZMAX finish is standard to meet exposure conditions in many environments
- Easy installation with 0.148 in. x 3 in. nails or Strong-Drive SD Connector screws
- Seat width: 5-1/2 in.
- Nominal post size: 6x
- Made from 16-gauge steel
- Post and beam flanges in-line design allows one model to accommodate several post sizes
- Compatible with solid sawn and rough lumber post-to-beam connections
Specifications
- Model Number: EPC6Z
- Nominal Post Size: 6x
- Gauge: 16
- Seat Width: 5-1/2 in.
- Coating/Finish: ZMAX
- Install With: Installs with 0.148 in. x 3 in. nails or the #9 x 1-1/2 in. Strong-Drive SD Connector screw
- Width: 5-1/2 in.
- Country of Origin: United States
Downloads and Resources
Frequently Asked Questions
- What post size is the EPC6Z designed for?
- The EPC6Z is designed for use with nominal 6x posts. Because the post and beam flanges are positioned in-line with each other, one model can accommodate several post sizes in solid sawn and rough lumber post-to-beam connections.
- What fasteners are required to install the EPC6Z?
- The EPC6Z installs with 0.148 in. x 3 in. nails or the #9 x 1-1/2 in. Strong-Drive SD Connector screw, making installation fast and straightforward.
- What is the ZMAX finish and why does it matter?
- The ZMAX finish is a high-performance galvanized coating that is standard on the EPC6Z. It is designed to meet exposure conditions in many environments, providing enhanced corrosion resistance compared to standard galvanizing.
- What gauge steel is used in the construction of the EPC6Z?
- The EPC6Z is made from 16-gauge steel, providing the structural strength required for reliable post-to-beam end connections.
