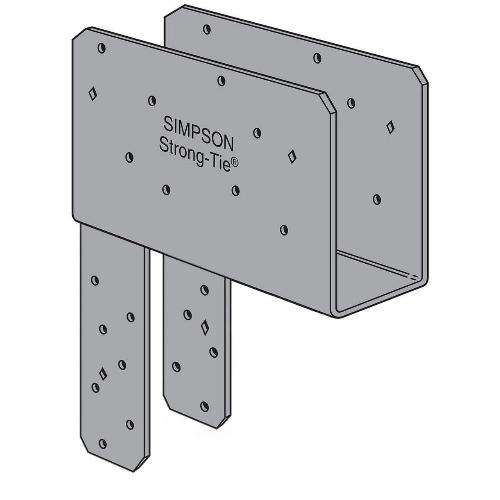

The Simpson ECCQ96SDS2.5ROT 8-3/4 in. Beam 6x Post End Column Cap with Rotated Straps and SDS2.5 Screws is a heavy-duty structural connector engineered for end-of-beam column-to-beam connections in wood construction. Built by Simpson from 3-gauge steel with a Simpson Strong-Tie Gray paint finish, this end column cap is designed to handle demanding structural loads at the end of a beam where reliable, certified performance matters most. Rotated straps reposition the connection hardware to accommodate specific framing configurations, and the cap ships complete with Strong-Drive SDS Heavy-Duty Connector screws so installation can begin immediately.

Key Features

• Rotated Strap Configuration - Straps are repositioned to suit end-of-beam framing layouts where a standard orientation would not align, giving builders the flexibility to achieve a secure connection without field modification.
• 3-Gauge Steel Construction - Heavy-gauge steel provides the structural integrity needed for post-and-beam applications subject to high loads, seismic forces, or high-wind uplift demands.
• Extended Bearing Seat - The seat reaches beyond the side of the column to distribute beam loads across a broader bearing surface, improving load transfer at the connection point.
• Simpson Strong-Tie Gray Paint Finish - Factory-applied finish provides a consistent, professional appearance and baseline protection for interior structural applications.
• Includes Strong-Drive SDS Heavy-Duty Connector Screws - The cap comes with all required fasteners for both the beam and post connections, enabling a low-profile screw installation without the need for standard through-bolts.
• Certified for Seismic and High-Wind Applications - Approved for use in structures requiring enhanced uplift resistance due to earthquake or high-wind loading, making it a dependable choice for code-compliant builds in demanding regions.
• Made in the United States - Domestic production supports consistent quality standards across the manufacturing process.

Why This Product

• A complete, ready-to-install connection solution - The cap includes all the SDS screws needed for both the beam-side and post-side fastening, so there is no separate hardware sourcing required before the job can start.
• Engineered specifically for end-of-beam positions - Unlike standard column caps, this connector is designed for the unique geometry of end-of-beam column-to-beam connections, reducing the need for custom fabrication or field workarounds.
• Suitable for the most demanding structural environments - With approvals covering seismic loading and high-wind uplift zones, this cap is a practical choice for projects where structural performance requirements go beyond typical conditions.
• Screw-based installation instead of through-bolts - The Strong-Drive SDS screw connection provides a low-profile fastening method that simplifies installation in tight framing conditions while maintaining certified structural performance.

Specifications

• Model Number: ECCQ96SDS2.5ROT
• Beam Width: 8-3/4 in.
• Dimension W1: 8-7/8 in.
• Dimension W2: 5-1/2 in.
• Dimension L: 8-1/2 in.
• Dimension H: 7 in.
• Material: 3-Gauge Steel
• Finish: Simpson Strong-Tie Gray Paint
• Fastener Type: 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector Screws
• Country of Origin: United States

Approved Applications

• End-of-beam column-to-beam connections in wood construction
• Structural applications requiring enhanced uplift resistance due to seismic (earthquake) loading
• Structural applications in high-wind load zones requiring increased uplift capacity
• Post-and-beam construction requiring strong, certified welded column cap connections
• Installations where a low-profile screw connection is preferred over standard through-bolt assembly

What's Included

• 1x ECCQ96SDS2.5ROT End Column Cap (Rotated Straps)
• 14x 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector Screws (Beam)
• 14x 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector Screws (Post)

Installation

Fasten with the included 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What beam and post sizes is the ECCQ96SDS2.5ROT designed for?

The ECCQ96SDS2.5ROT is designed for use with an 8-3/4" beam and a 6x post, making it suitable for end-of-beam column-to-beam connections in wood construction applications.

What does "rotated straps" mean on this column cap?

Rotated straps means the straps on this column cap have been repositioned or rotated from their standard orientation, which is reflected in the "ROT" designation in the model number. This configuration is intended for specific installation scenarios where the standard strap orientation would not be suitable.

Are fasteners included with this column cap, and what type are they?

Yes, the ECCQ96SDS2.5ROT comes complete with Strong-Drive SDS Heavy-Duty Connector screws. These screws attach to a greater net section area of the column compared to standard bolt attachment, offer a lower profile than standard through-bolts, and are included for fast, efficient installation straight out of the box.

What material and finish is this column cap made from?

The ECCQ96SDS2.5ROT is fabricated from heavy-duty 3-gauge steel and features a Simpson Strong-Tie Gray paint finish, making it well-suited for demanding structural environments.
