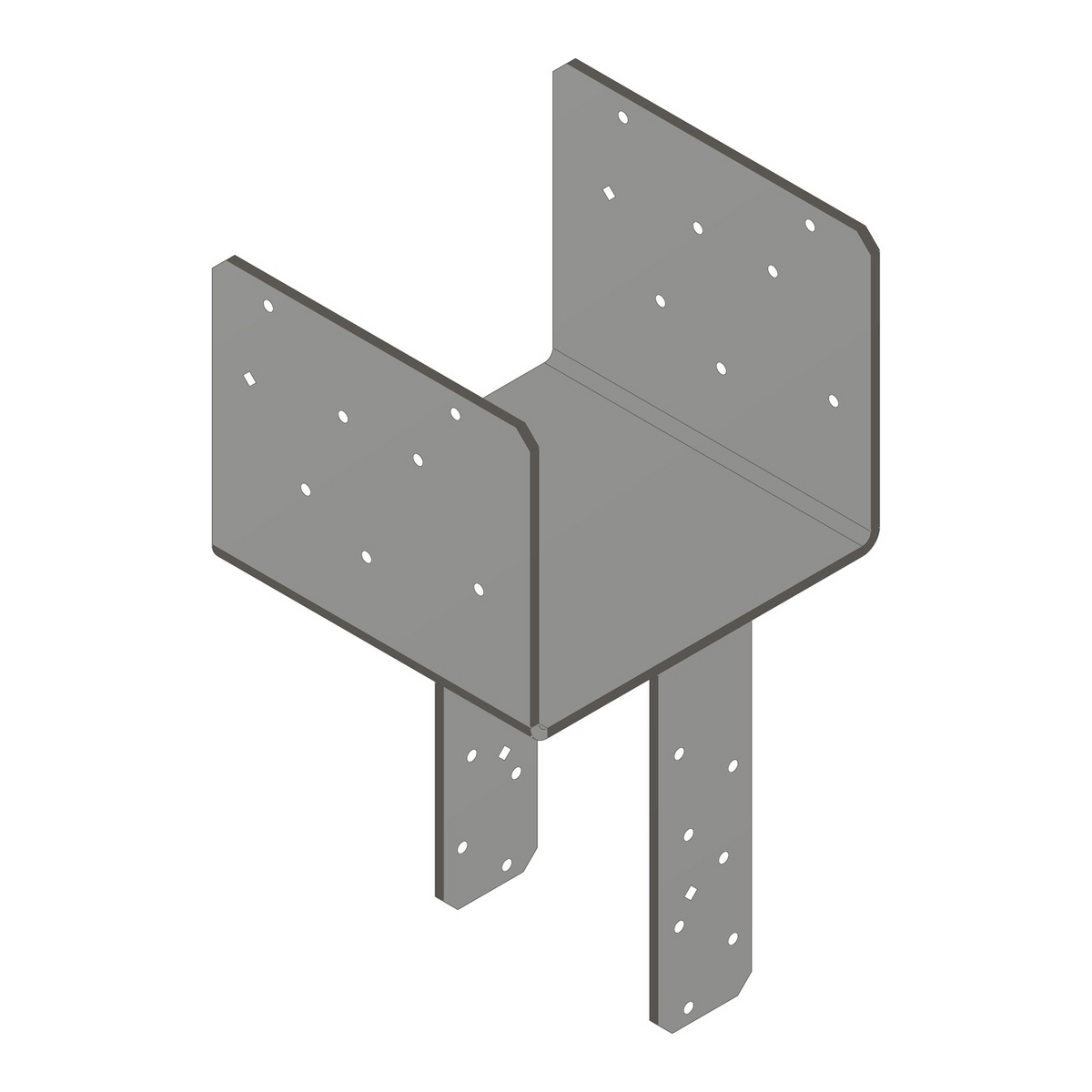

The Simpson ECCQ96SDS2.5 ECCQ End Column Cap delivers a high-capacity connection for column-beam combinations in end-of-beam applications in wood construction. Engineered by Simpson Strong-Tie for an 8-3/4 in. beam width paired with a 6x post, this end column cap is built from heavy-duty 7-gauge steel with a Simpson Strong-Tie gray paint finish and arrives with 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws included - giving structural builders and contractors everything needed for a fast, reliable installation right out of the box. Engineered and tested to perform and manufactured to the highest quality standards, it is the connector choice of engineers and contractors for residential and commercial structural framing alike.

Key Features

• Includes 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws - no separate fastener purchase required, so installation can begin immediately on the job site.
• Strong-Drive SDS screw installation - provides faster installation compared to bolts and preserves a greater net section area of the column, maintaining the structural integrity of the post.
• Low-profile fastener design - SDS screws sit lower than standard through bolts, resulting in a cleaner finish and less interference with surrounding framing members.
• 7-gauge steel construction - heavy-duty material thickness delivers the load capacity required for demanding structural column-beam connections in both residential and commercial projects.
• Simpson Strong-Tie gray paint finish - provides a consistent, finished appearance suitable for exposed structural applications.
• Sized specifically for 8-3/4 in. beam width and 6x post combinations - purpose-built dimensions mean a precise, secure fit with no guesswork for end-of-beam column cap applications.

Why This Product

• Engineered for high-capacity structural performance - end column caps from Simpson Strong-Tie are purpose-built to provide strong, reliable connections for column-beam combinations, making this connector well suited for projects requiring compliance with building codes, including those subject to earthquake or wind uplift loading.
• Faster installation without sacrificing strength - the included Strong-Drive SDS screws drive faster than traditional through bolts and preserve more of the column's net section area, helping crews work efficiently while maintaining structural performance.
• A trusted connector from engineers and contractors - Simpson Strong-Tie connectors are engineered and tested to perform and manufactured to the highest quality standards, making this end column cap a dependable choice for both home projects and code-compliant commercial construction.
• Everything included for a complete connection - the SDS screws needed for installation are included with the cap, reducing the chance of missing hardware delays and simplifying procurement for structural framing projects.

Specifications

• Model Number (MPN): ECCQ96SDS2.5
• Beam Width: 8-3/4 in.
• Width 2: 5-1/2 in.
• Width 1: 8-7/8 in.
• Height: 7 in.
• Length: 8-1/2 in.
• Post Size: 6x Post
• Material: Steel
• Gauge: 7-Gauge Steel
• Coating / Finish: Simpson Strong-Tie Gray Paint
• Fastener Type: 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector Screws
• Country of Origin: United States

Approved Applications

• End-of-beam column-to-beam connections in wood construction
• High-capacity structural column-beam combinations requiring strong, reliable connections
• Residential and commercial construction projects requiring compliance with building codes
• Structural connections subject to earthquake or wind uplift loading

What's Included

• 1 x Simpson Strong-Tie ECCQ96SDS2.5 End Column Cap
• 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector Screws (included)

• Contact us for Configurable Options and Special orders

• Straps may be rotated 90 deg.


Frequently Asked Questions

What beam width and post size is the ECCQ96SDS2.5 designed for?

The ECCQ96SDS2.5 is specifically designed for an 8-3/4 in. beam width paired with a 6x post, making it suitable for end-of-beam column-beam applications in wood construction.

What fasteners are required to install this end column cap, and are they included?

This end column cap installs using 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws, which are included with the product. No separate fastener purchase is necessary.

Why use SDS screws instead of standard through bolts for this connection?

Strong-Drive SDS screws offer two key advantages over standard through bolts: they provide faster installation and result in a greater net section area of the column, since screws remove less material than bolts. They also deliver a lower profile, resulting in a cleaner, more streamlined connection.

What material and finish is the ECCQ96SDS2.5 made from?

The ECCQ96SDS2.5 is made from heavy-duty 7-gauge steel and features a Simpson Strong-Tie gray paint finish, manufactured to high quality standards for reliable structural performance.
