Product Description

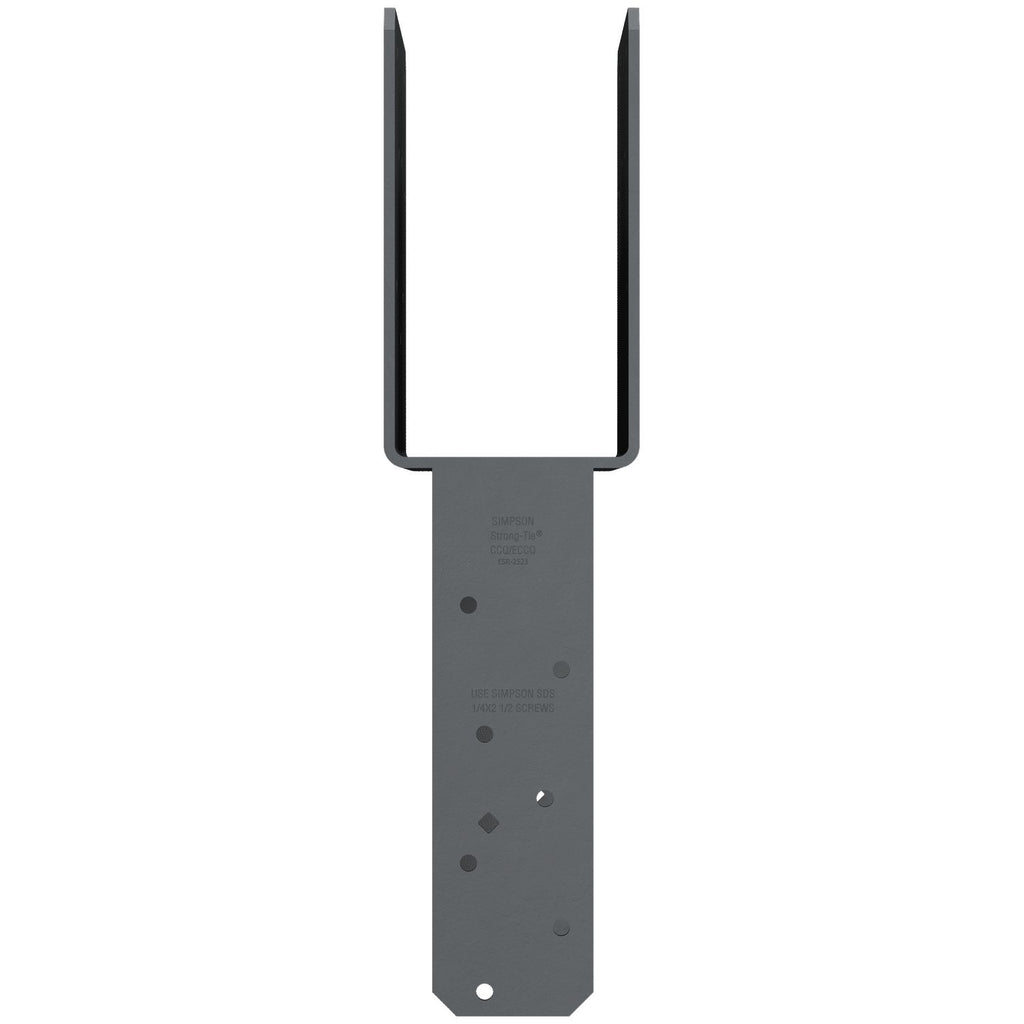

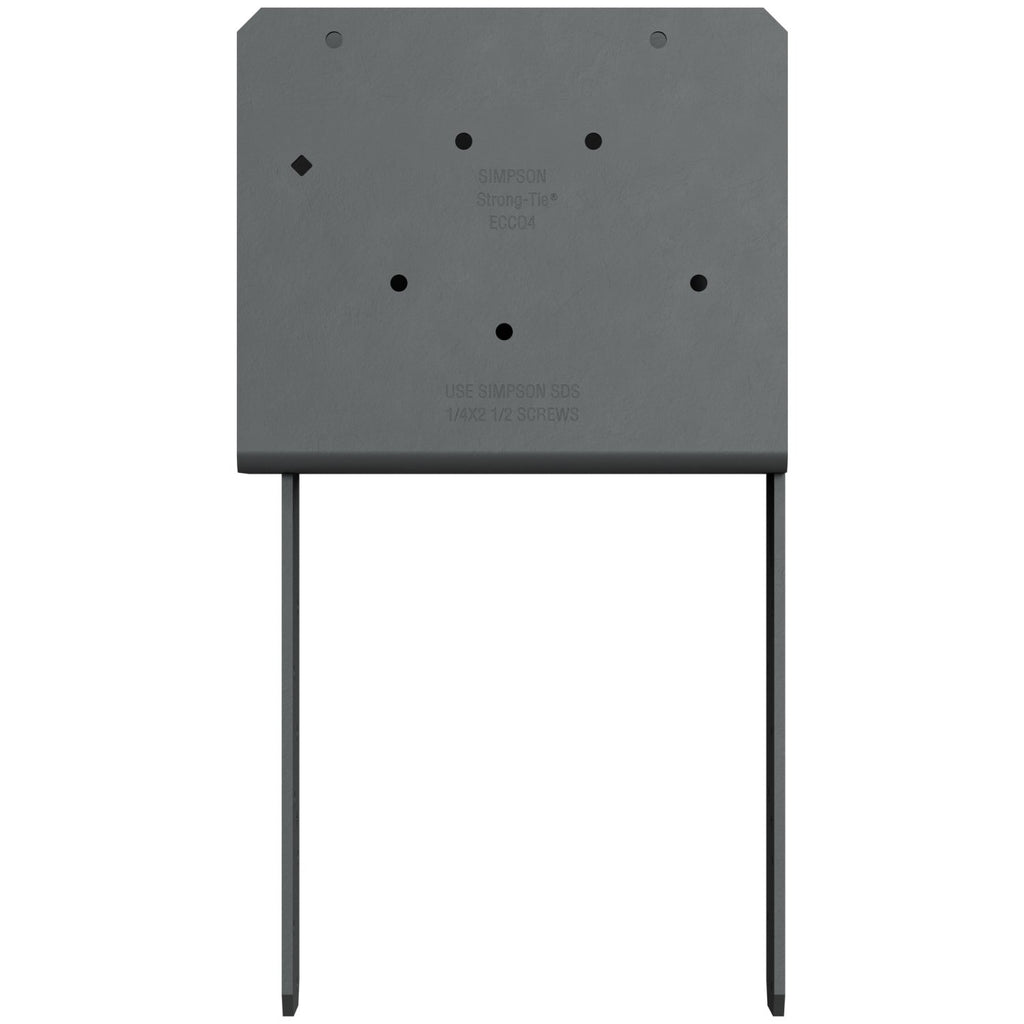

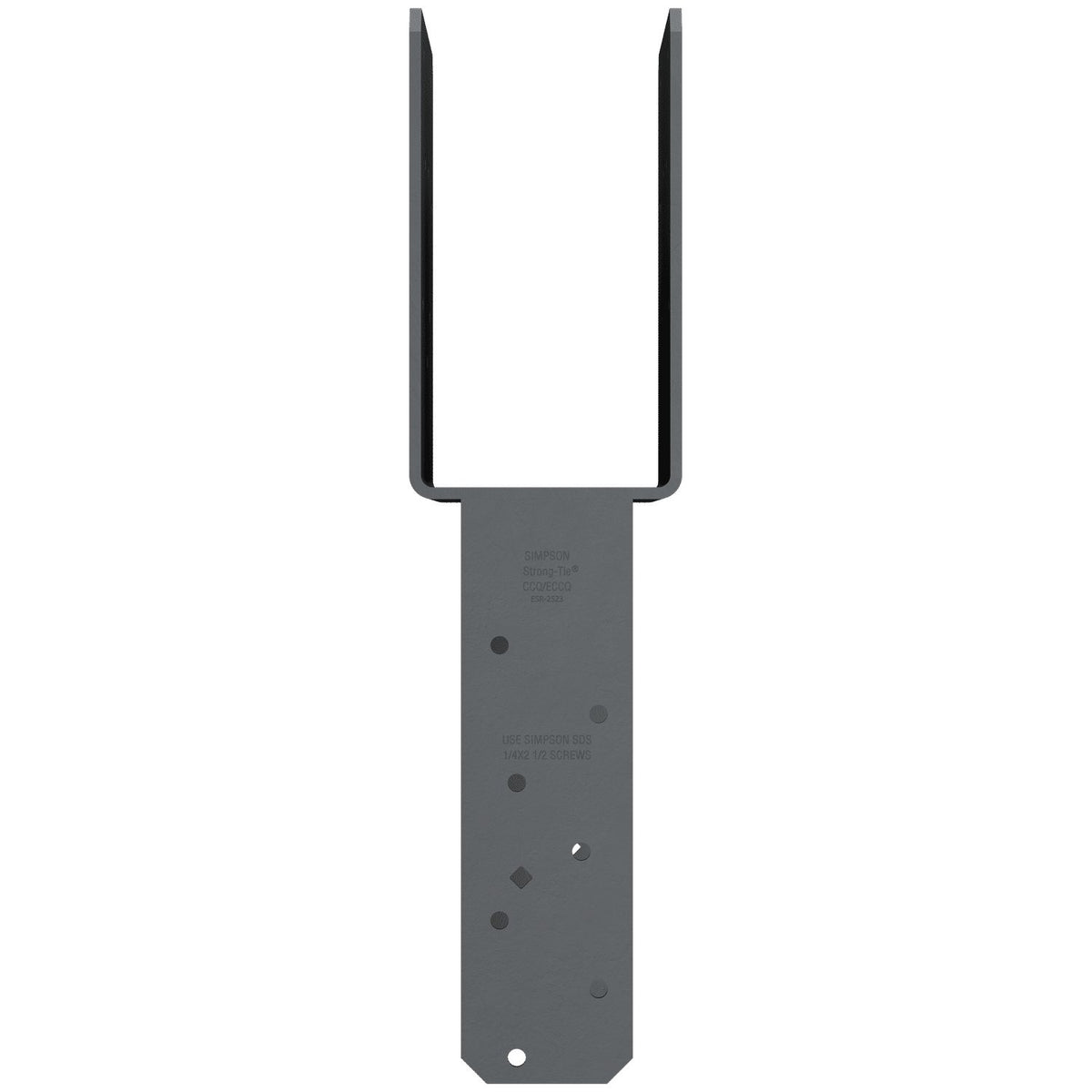

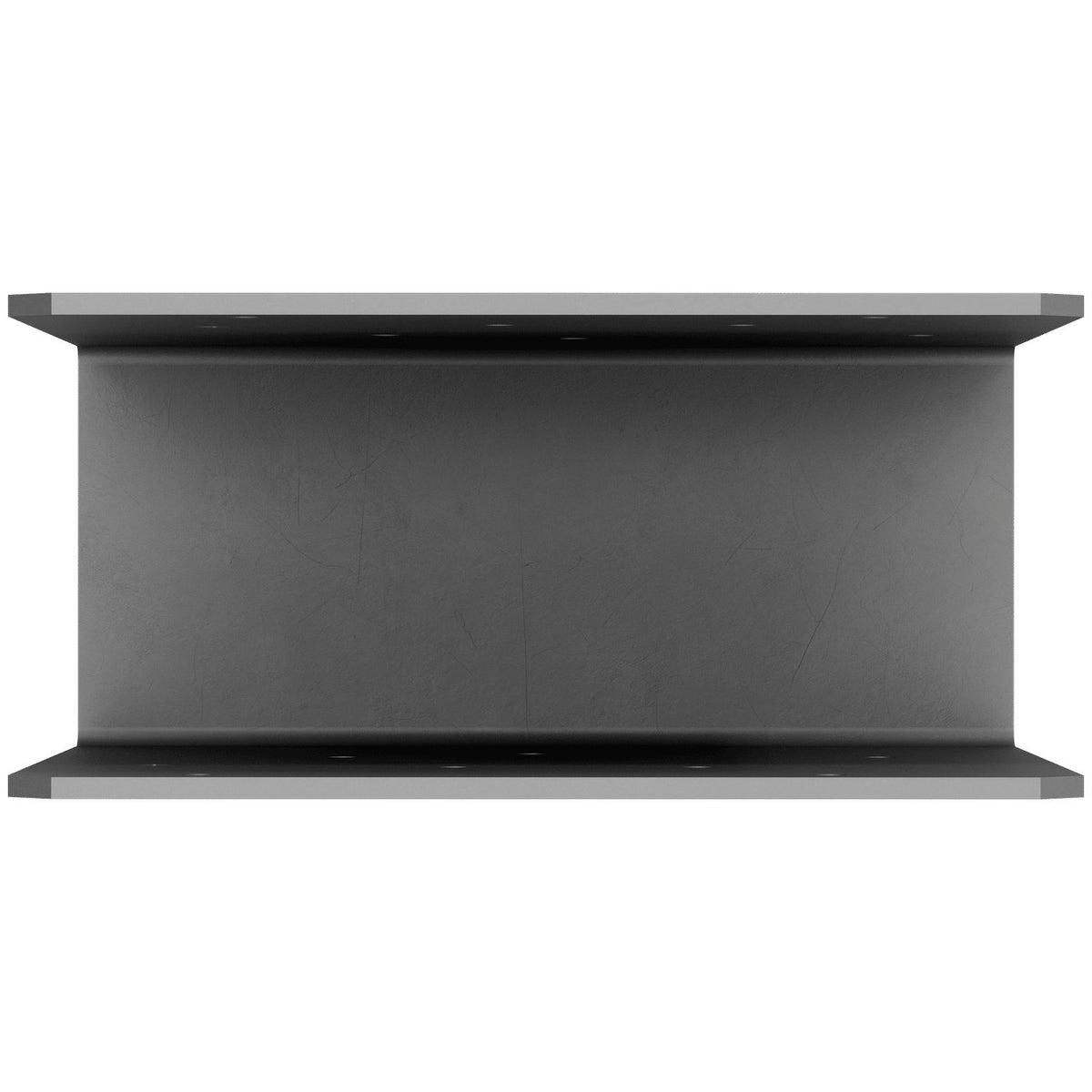

The Simpson ECCQ End Column Cap for 4x Beam, 8x Post with Strong-Drive SDS Screws is a Simpson Strong-Tie engineered connector built to deliver a high-capacity connection for column-beam combinations in end-of-beam wood construction applications. The seat of the column cap extends beyond the side of the column to provide additional bearing surface area, helping to distribute load from the beam and support the overall connection. Engineered, tested, and manufactured to the highest quality standards, this connector is the trusted choice of engineers and contractors for structural projects where strength and safety are non-negotiable.
Key Features
- Installs with Strong-Drive SDS screws (included) - faster to drive than standard through bolts, getting your column-beam connection secured more quickly with less hardware hassle
- SDS screws preserve greater net section area of the column compared to bolts - less wood fiber is removed during installation, helping maintain the structural integrity of the post
- Low-profile fastener connection - SDS screws sit closer to the surface than standard through bolts, resulting in a cleaner, less obtrusive finished appearance
- Made from 7-gauge steel - heavy-duty material thickness provides the load-bearing strength required for demanding column-beam structural applications
- Simpson Strong-Tie gray paint finish - provides a consistent, professional appearance and a baseline level of surface protection for the connector
Why This Product
- Engineered for high-capacity end-column connections - this connector is specifically designed for column-beam combinations, giving contractors and builders a purpose-built solution rather than a generic bracket that requires extra fabrication or guesswork
- Included SDS screws mean fewer trips to the supply house - the 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws ship with the cap, so you have the correct, manufacturer-specified fasteners on hand the moment installation begins
- Trusted Simpson Strong-Tie engineering behind every connector - Simpson Strong-Tie products are engineered, tested, and manufactured to the highest quality standards, giving engineers, inspectors, and building owners documented confidence in the connection
- Domestically produced to consistent quality standards - this connector is made in the United States, supporting reliable production quality and consistent dimensional tolerances across units
Specifications
- Model Number: ECCQ48SDS2.5
- Member Size: 4x beam
- Width 2: 7-1/2 in.
- Width 1: 3-5/8 in.
- Height: 7 in.
- Length: 8-1/2 in.
- Material: 7-gauge steel
- Finish / Coating: Simpson Strong-Tie Gray Paint
- Country of Origin: United States
- Install With: 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
What's Included
Each pack contains (1) ECCQ48SDS2.5 Beam, 8x Post End Column Cap, 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws.
Options
-
Contact us for Configurable Options and Special orders
- Straps may be rotated 90 deg.
Downloads and Resources
Frequently Asked Questions
- What size beam and post is the ECCQ48SDS2.5 designed for?
- The ECCQ48SDS2.5 is designed for use with a 4x nominal beam width and an 8x post, making it suitable for end-of-beam column-beam connection applications in wood construction.
- What fasteners are used with this end column cap, and are they included?
- This column cap installs with 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws, which are included with the connector.
- Why are SDS screws used instead of standard through bolts?
- Strong-Drive SDS screws provide faster installation and attach to a greater net section area of the column than standard through bolts. They also result in a lower profile connection compared to standard through bolts.
- What material and finish is the ECCQ48SDS2.5 made from?
- The ECCQ48SDS2.5 is manufactured from 7-gauge steel and features a Simpson Strong-Tie gray paint finish.
Note: Product dimensions and/or screw or bolt holes may differ from picture.
