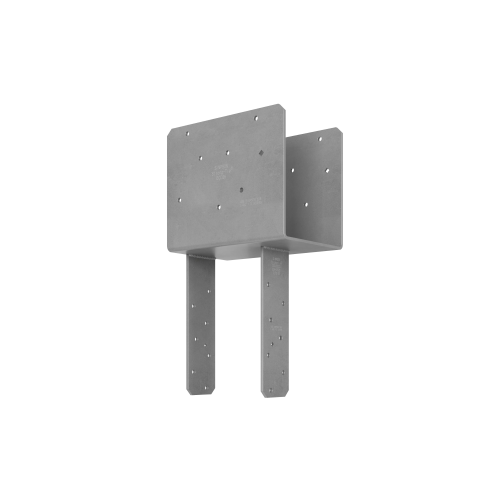

Simpson ECCQ68SDS2.5 ECCQ End Column Cap for 6x Beam, 8x Post, with Strong-Drive SDS Screws is a Simpson Strong-Tie engineered connector designed to provide a high-capacity connection for column-beam combinations in end-of-beam applications in wood construction. Built from 7-gauge steel and fastened with included Strong-Drive SDS Heavy-Duty Connector screws, this end column cap delivers a strong, low-profile connection that meets the demands of engineers and contractors alike.

Key Features

• Uses Simpson Strong-Tie Strong-Drive SDS screws to provide faster installation and provides a greater net section area of the column compared to bolts
• SDS screws provide for a lower profile compared to standard through bolts
• Nominal beam width: 6x
• Made from 7-gauge steel
• Simpson Strong-Tie gray paint finish
• Certified welds for confidence in strength and loading
• Uplift loads have been increased for earthquake or wind loading
• Diamond holes for temporary fastening
• The seat of the column cap provides an additional surface area of bearing that extends beyond the side of the column, helping distribute load from the beam
• Engineered and tested to perform, and manufactured to the highest quality standards

Specifications

• MPN: ECCQ68SDS2.5
• Brand: Simpson Strong-Tie
• Member Size (Beam): 6x
• Post Size: 8x
• Beam Width (in.): 5-1/4, 5-1/2
• Width 2: 7-1/2 in.
• Width 1: 5-1/2 in.
• Height: 7 in.
• Length: 8-1/2 in.
• Dimensions W1 (in.): 5-1/2
• Dimensions W2 (in.): 7-1/2
• Dimensions L (in.): 8-1/2
• Dimensions H (in.): 7
• Gauge: 7
• Material: Steel
• Coating/Finish: Simpson Strong-Tie Gray Paint
• Install With: 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
• Country of Origin: United States

What's Included

Each pack contains (1) ECCQ68SDS2.5 Beam, 8x Post End Column Cap, 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws.

Options

• Contact us for Configurable Options and Special orders

• Straps may be rotated 90 deg.


Downloads and Resources

• View Specifications

Frequently Asked Questions

What type of fasteners are used with the ECCQ68SDS2.5, and are they included?

The ECCQ68SDS2.5 is installed using 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws, which are included with the connector. These screws enable faster installation and attach to a greater net section area of the column compared to standard bolt attachment.

Why are SDS screws preferred over standard through bolts for this connector?

Strong-Drive SDS screws provide two key advantages over standard through bolts: they result in a lower profile connection, and they engage a greater net section area of the column, which contributes to a stronger and more efficient connection.

What beam and post sizes is the ECCQ68SDS2.5 designed for?

The ECCQ68SDS2.5 is designed for use with a 6x nominal beam and an 8x post. The beam width accommodates dimensions of 5-1/4 in. and 5-1/2 in.

What material and finish is the ECCQ68SDS2.5 made from?

The ECCQ68SDS2.5 is made from 7-gauge steel and features a Simpson Strong-Tie gray paint finish, providing durability suited for structural wood construction applications.

Note: Product dimensions and/or screw or bolt holes may differ from picture.
