Product Description

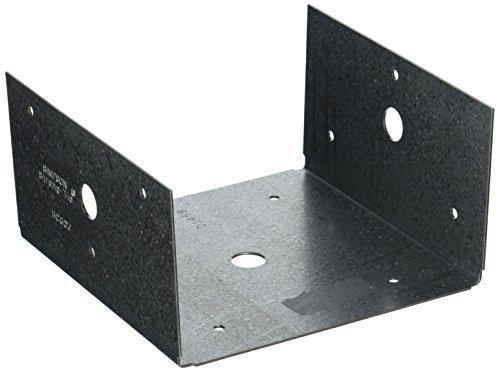

Simpson BC60Z BC ZMAX Galvanized Post Base for 6x by Simpson Strong-Tie is an 18-gauge steel post and column base designed to secure the bottom of a 6x post or column to concrete - ideal for decks, patio covers, and similar light base applications. The ZMAX galvanized finish delivers enhanced corrosion resistance, making this connector well suited for exterior environments and treated-wood construction where long-term durability matters.
Key Features

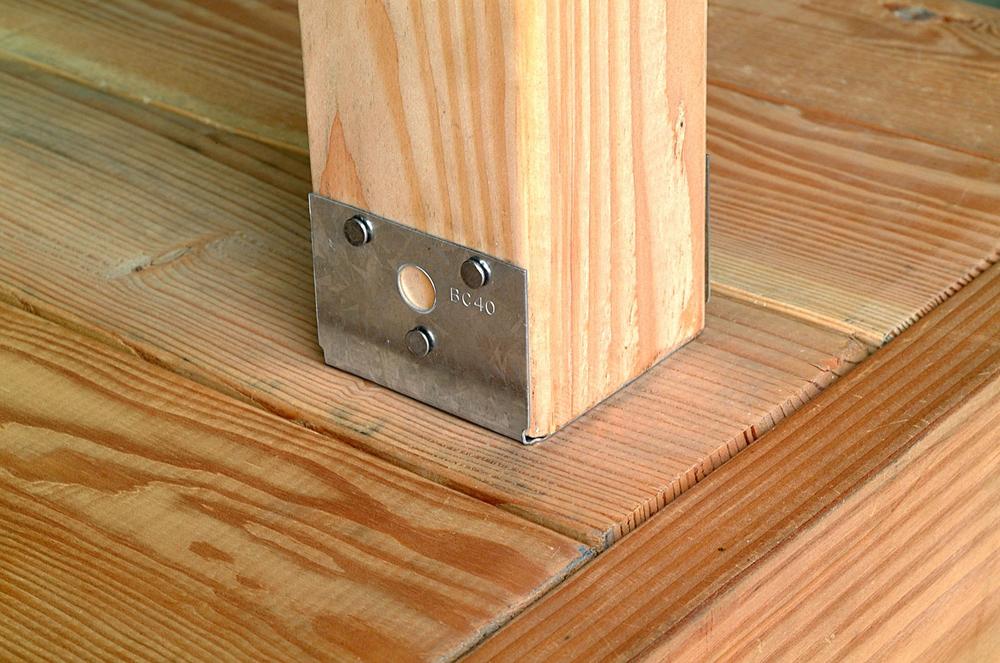

- Provides a positive connection for a post to a wood deck
- Stronger than angled nailing or screw fastening
- Reduces the chance of the post splitting and eliminates nailing into end grain
- Not recommended for non top-supported installations (such as fences or unbraced carports)
- Nominal post size: 6x
- Made from 18-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Specifications
- Manufacturer: Simpson Strong-Tie
- MPN: BC60Z
- Member Size: 6x
- Gauge: 18
- Coating / Finish: ZMAX

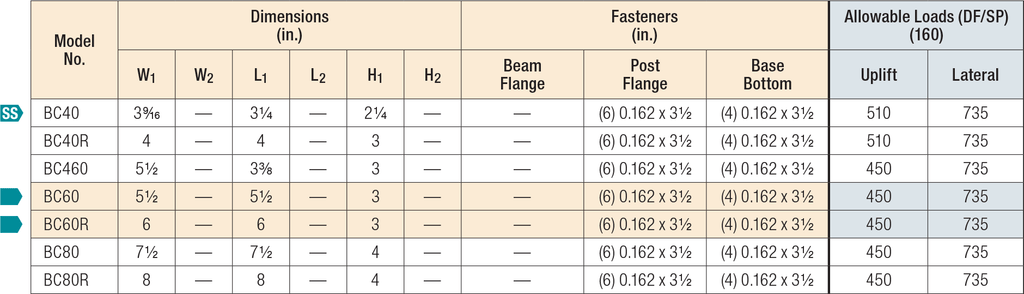

- Fasteners Required - Post Flange: (6) 0.162 x 3-1/2" Nails
- Fasteners Required - Base Bottom: (4) 0.162 x 3-1/2" Nails
- Install With: 16d commons or 16d x 2 1/2" joist hanger nails
- Country of Origin: United States
Approved Applications
- Securing posts and columns to concrete for decks and patio covers
- Attaching to existing hardened concrete or wet concrete
- Light post base connection applications
- Exterior and treated-wood environments where corrosion resistance is required
Downloads and Resources
Frequently Asked Questions
- What size post is the BC60Z designed for?
- The BC60Z is designed for a nominal 6x post size, providing a secure connection between the base of a 6x post or column and the concrete surface below.
- Why is ZMAX galvanization important for this post base?
- ZMAX galvanization offers extra corrosion resistance compared to standard galvanized finishes, making the BC60Z especially suitable for exterior applications and installations involving treated lumber, where moisture and chemical exposure can accelerate corrosion.
- Can the BC60Z be used for fences or unbraced carports?
- No. The BC60Z is not recommended for non top-supported installations such as fences or unbraced carports. Post bases do not provide adequate resistance to prevent members from rotating about the base in those types of applications.
- What fasteners should be used to install the BC60Z?
- Install with 16d commons or 16d x 2 1/2" joist hanger nails. All specified fasteners must be used: the post flange requires (6) 0.162 x 3-1/2" nails and the base bottom requires (4) 0.162 x 3-1/2" nails. Do not install bolts into pilot holes.
