Product Description

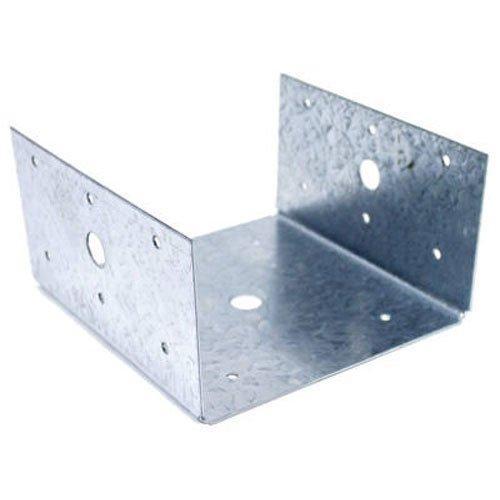

The Simpson BC60 BC Galvanized Post Base for 6x Posts by Simpson Strong-Tie is an 18-gauge steel post base designed to secure the bottom of 6x posts or columns to concrete - ideal for decks and patio covers. With a G90 galvanized zinc finish for superior corrosion resistance, the BC60 delivers a stronger, more reliable connection than angled nailing or screw fastening while eliminating the risk of nailing into end grain.
Key Features
- Provides a positive connection for a post to a wood deck
- Stronger than angled nailing or screw fastening
- Reduces the chance of the post splitting and eliminates nailing into end grain
- Not recommended for non top-supported installations (such as fences or unbraced carports)
- Nominal post size: 6x
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance

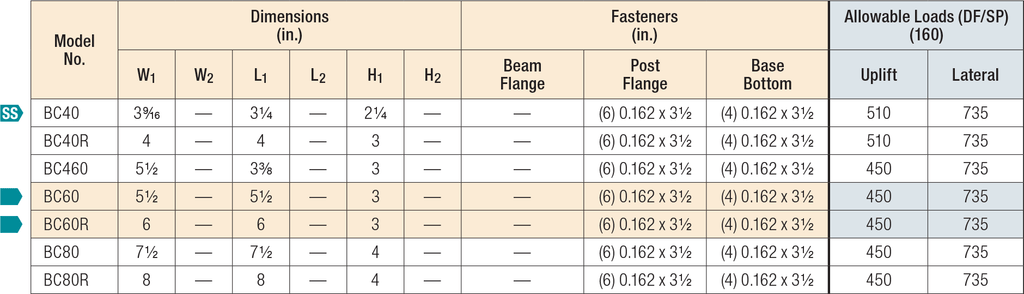

Specifications
- MPN: BC60
- Brand: Simpson Strong-Tie
- Member Size: 6x
- Gauge: 18
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: Install with 16d commons or 16d x 2 1/2" joist hanger nails
- Post Flange Fasteners: (6) 0.162 x 3-1/2" Nails
- Base Bottom Fasteners: (4) 0.162 x 3-1/2" Nails
- Country of Origin: United States
Approved Applications
- Securing posts or columns to concrete for decks
- Securing posts or columns to concrete for patio covers
- Light base connection applications
- Top-supported post installations where lateral rotation resistance is provided by the structure above
Downloads and Resources
Frequently Asked Questions
- What post size is the BC60 designed to fit?
- The BC60 is designed for nominal 6x post sizes, making it the appropriate choice for standard 6x lumber used in decks, patio covers, and similar light structural applications.
- Why is the BC60 a better choice than angled nailing or screw fastening?
- The BC60 provides a stronger, more positive mechanical connection between the post and the deck or concrete surface. It also reduces the chance of the post splitting and eliminates the need to nail into end grain, which is a weaker and less reliable fastening method.
- Can the BC60 be used for fences or unbraced carports?
- No. The BC60 is not recommended for non top-supported installations such as fences or unbraced carports. Post bases in the BC series do not provide adequate resistance to prevent members from rotating about the base and require the post to be stabilized from above.
- What fasteners should be used to install the BC60?
- The BC60 should be installed with 16d commons or 16d x 2 1/2" joist hanger nails. Use all specified fasteners as directed - post flange requires (6) 0.162 x 3-1/2" nails and the base bottom requires (4) 0.162 x 3-1/2" nails. Do not install bolts into pilot holes.
Note: Product dimensions and/or nail or screw holes may differ from picture.
