Product Description

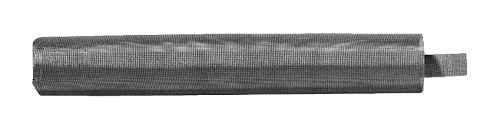

The Simpson Strong-Tie ETS5010 10-in. Steel Epoxy-Adhesive Screen Tube is a 60 mesh carbon steel screen tube engineered for hollow base material applications. Designed by Simpson Strong-Tie, it contains adhesive around the anchor and prevents it from running into voids, ensuring thorough coating and bonding of the rod to the screen tube and base material. This screen tube is specifically designed to work with Simpson Strong-Tie ET-3G adhesive to precisely control the amount of adhesive that passes through the mesh.
Key Features
- Caution: Screen tubes are designed for a specific adhesive type
- This epoxy screen tube must be used with ET-3G formulations
- For 1/2-in. rod diameter
- Hole size: 11/16 in.
- Length: 10 in.
- Made from 60 mesh carbon steel
Specifications
- MPN: ETS5010
- Brand: Simpson Strong-Tie
- Material: Carbon Steel
- Finish: Carbon Steel
- Bolt/Rod Diameter: 1/2 in.
- Hole Size: 11/16 in.
- Outside Diameter: 19/32 in.
- Length: 10 in.
- Install With: For use with Simpson Strong-Tie ET-3G epoxy adhesive
- Packaging: Packs of 1 and Cartons of 50
- Country of Origin: China
Frequently Asked Questions
- What type of adhesive must be used with the ETS5010 screen tube?
- The ETS5010 epoxy screen tube must be used exclusively with Simpson Strong-Tie ET-3G epoxy adhesive formulations. Screen tubes are designed for a specific adhesive type, and using an incompatible adhesive can compromise performance.
- What rod diameter is the ETS5010 screen tube designed for?
- The ETS5010 is designed for use with a 1/2-in. rod diameter. The corresponding hole size is 11/16 in., and the outside diameter of the screen tube is 19/32 in.
- Why are screen tubes used in hollow base material applications?

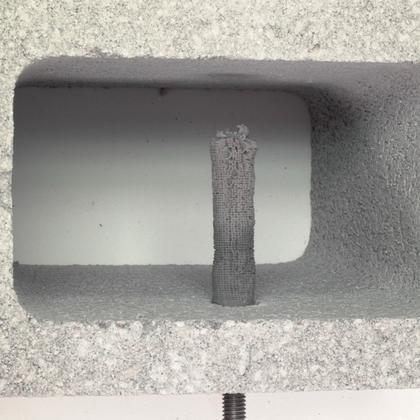

- Screen tubes are used in hollow base material applications to contain adhesive around the anchor and prevent it from running into voids. This ensures thorough coating and bonding of the rod to the screen tube and base material for a secure, reliable connection.
- How does the 60 mesh carbon steel construction benefit performance?
- The 60 mesh carbon steel construction precisely controls the amount of ET-3G adhesive that passes through the mesh. This results in consistent, thorough adhesive distribution for optimal bonding of the rod to the screen tube and surrounding base material.
