Product Description

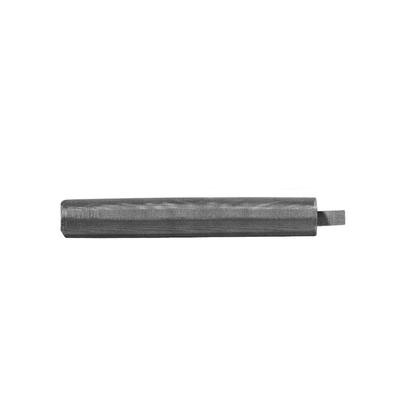

The Simpson ETS6210 10-in. Steel Epoxy-Adhesive Screen Tube for 5/8-in. Rod by Simpson Strong-Tie is an essential accessory for hollow base material anchoring applications. Designed to contain adhesive around the anchor and prevent it from running into voids, this screen tube works in precise coordination with Simpson Strong-Tie ET-3G epoxy adhesive to deliver thorough, consistent coating and bonding of the rod to both the screen tube and the surrounding base material.
Key Features
- Caution: Screen tubes are designed for a specific adhesive type
- This epoxy screen tube must be used with ET-3G formulations
- For 5/8-in. rod diameter
- Hole size: 7/8 in.
- Length: 10 in.
- Made from 60 mesh carbon steel
Specifications
- MPN: ETS6210
- Brand: Simpson Strong-Tie
- Material: Carbon Steel
- Finish: Carbon Steel
- Length: 10 in.
- Diameter: 25/32 in.
- Bolt/Rod Diameter: 5/8 in.
- Hole Size: 7/8 in.
- Mesh: 60 mesh carbon steel
- Install With: For use with Simpson Strong-Tie ET-3G epoxy adhesive
- Packaging: Packs of 1 and Cartons of 25
- Country of Origin: China
Frequently Asked Questions
- Which adhesive must be used with the ETS6210 screen tube?
- The ETS6210 epoxy screen tube must be used exclusively with Simpson Strong-Tie ET-3G epoxy adhesive formulations. Screen tubes are designed for a specific adhesive type, and using the wrong adhesive can compromise performance and bonding results.
- What rod diameter is the ETS6210 compatible with?
- The ETS6210 is designed for use with a 5/8-in. rod diameter. The recommended hole size for installation is 7/8 in., and the outside diameter of the screen tube itself measures 25/32 in.
- Why are screen tubes necessary for hollow base material applications?

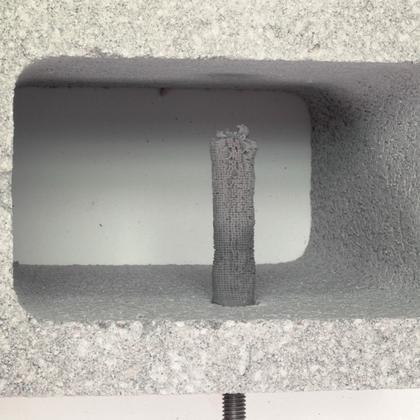

- Screen tubes are used in hollow base material applications to contain adhesive around the anchor and prevent it from running into voids. The 60 mesh carbon steel construction of the ETS6210 precisely controls the amount of adhesive that passes through, resulting in thorough coating and bonding of the rod to the screen tube and base material.
- How long is the Simpson ETS6210 screen tube?
- The Simpson ETS6210 screen tube measures 10 inches in length, making it suitable for anchoring applications that require proper adhesive containment along the full embedment depth of the rod.
Note: Screen tubes are designed for a specific adhesive type. The ETS6210 epoxy screen tube must be used with ET-3G formulations only. Always verify compatibility before installation.
