Product Features
Product Description

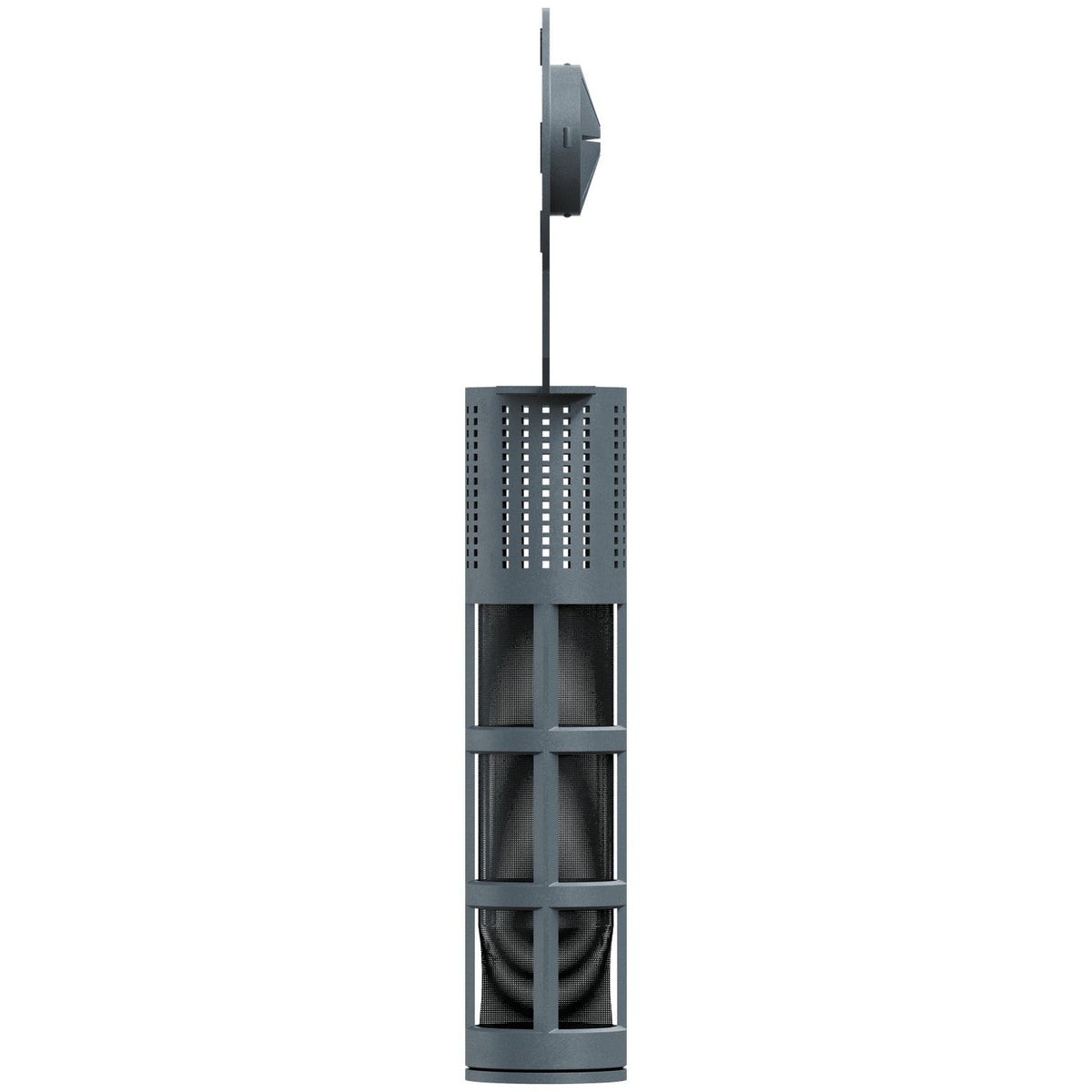

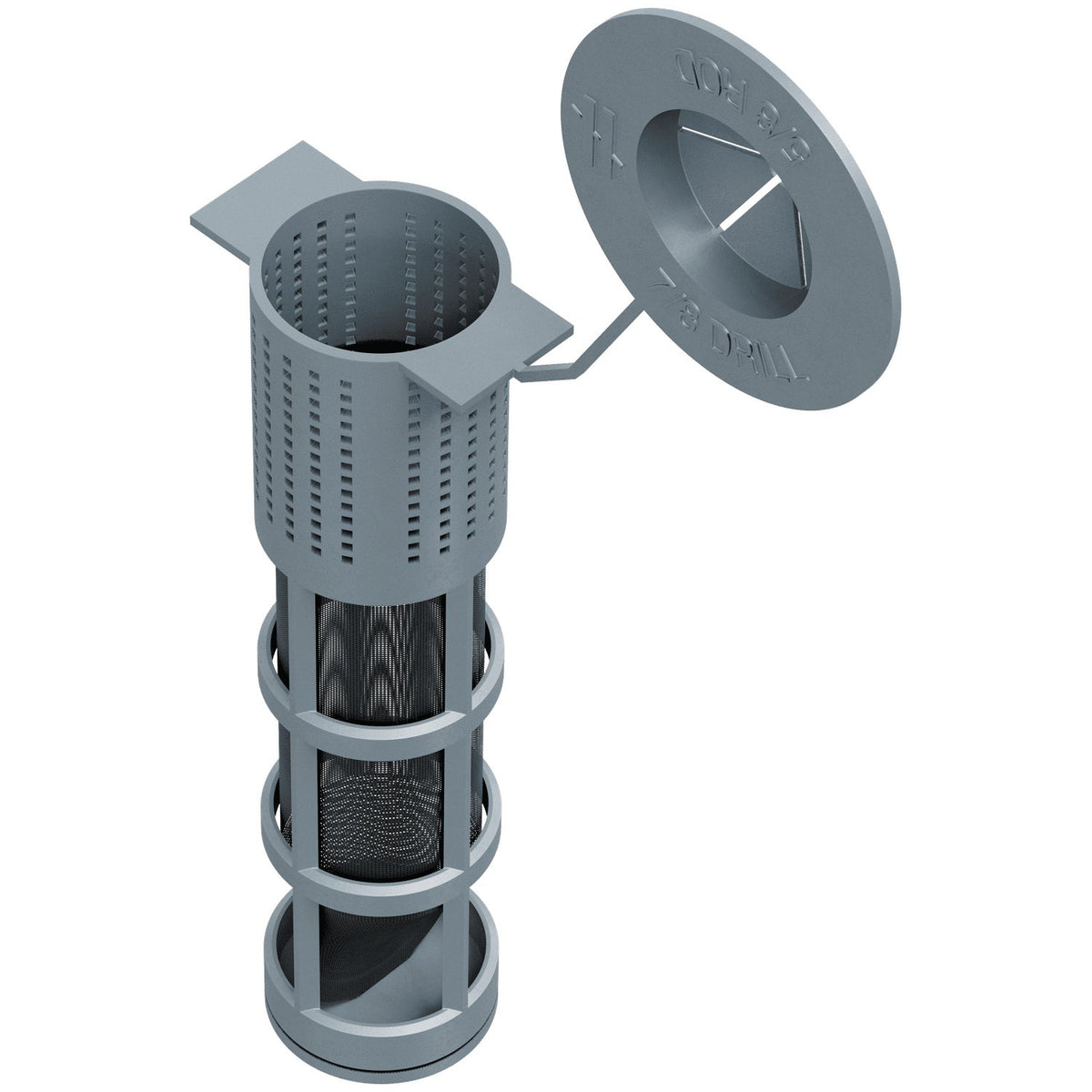

Simpson Strong-Tie Opti-Mesh 3-1/2 in. Epoxy Adhesive Plastic Screen Tube for 5/8 in. Rod (SET-3G) is engineered by Simpson Strong-Tie to maximize the performance of adhesive anchors in hollow or void-containing base materials such as hollow block and brick. The Opti-Mesh screen tube features a woven mesh insert that delivers the economical advantage of a plastic screen tube while providing superior performance compared to steel screen tubes and competitive plastic screen tubes. Designed exclusively for use with the SET-3G epoxy formulation, this screen tube ensures precise adhesive flow control and reliable anchoring results.
Key Features

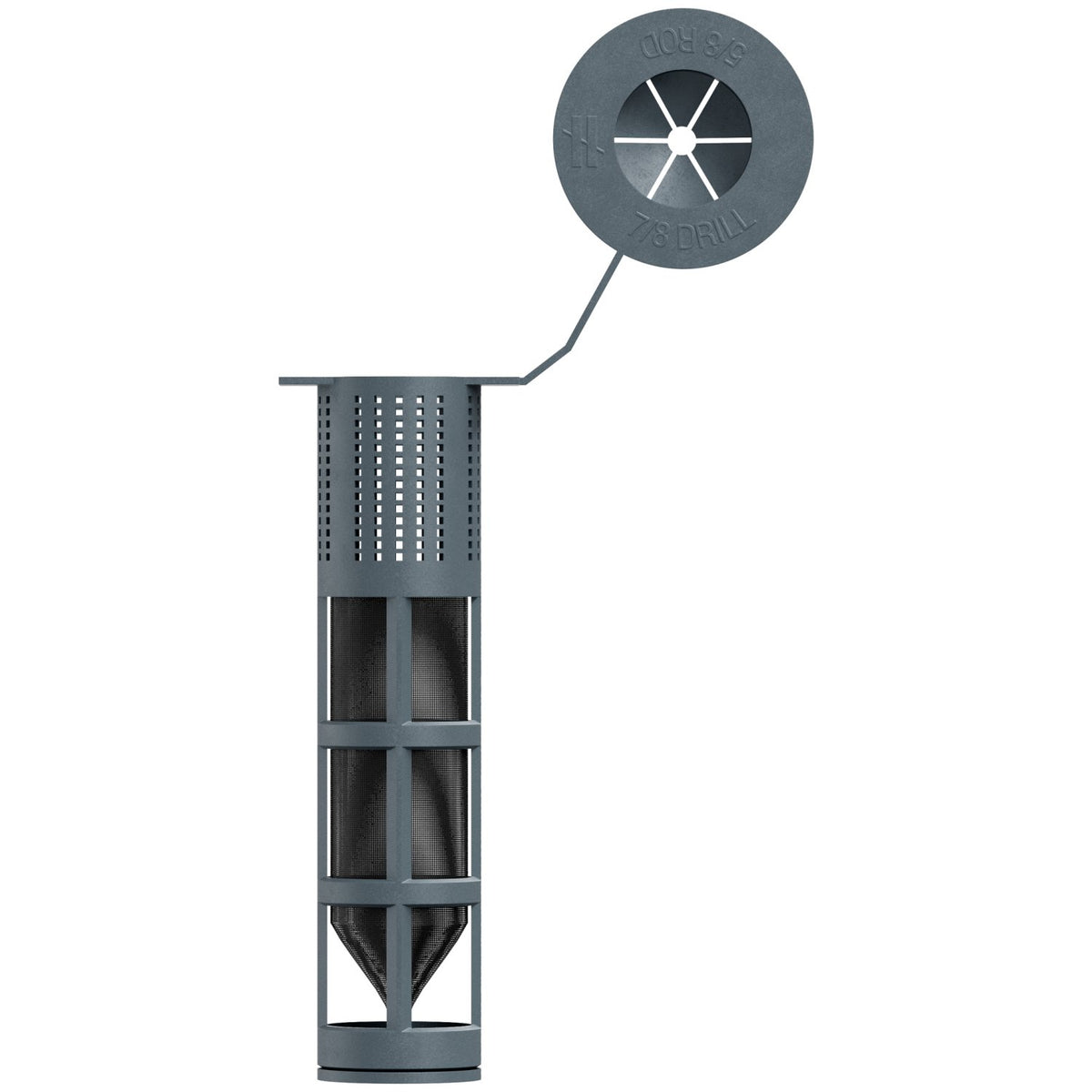

- Integral cap centers the rod and displays drill bit and rod diameter
- Flanges prevent the screen tube from slipping into over-drilled holes
- Formula-specific woven mesh design controls flow of adhesive out of the screen
- Open-mesh collar allows extra adhesive flow in hollow block applications
- Made from durable plastic construction for an economical yet high-performing solution
- Gray color for easy identification in the field
- Caution: Screen tubes are designed for a specific adhesive type; epoxy screen tubes must be used with SET-3G formulation
Specifications
- MPN: 3GWS623P
- Brand: Simpson Strong-Tie
- Compatible Adhesive: SET-3G (Epoxy)
- Rod Diameter: 5/8 in.
- Hole Size: 7/8 in.
- Length: 3-1/2 in.
- Material: Plastic
- Color: Gray
- Packaging: Packs of 1 and Cartons of 50
- Country of Origin: United States
Frequently Asked Questions
- What adhesive must be used with this screen tube?
- This Opti-Mesh screen tube is designed specifically for the SET-3G epoxy formulation. Screen tubes are designed for a specific adhesive type, and epoxy screen tubes must be used with the SET-3G formulation only.
- What rod diameter is this screen tube compatible with?
- This screen tube is designed for a 5/8 in. rod diameter and requires a 7/8 in. drilled hole size for proper installation.
- Why are screen tubes necessary for hollow block or brick applications?
- Screen tubes are vital to the performance of adhesive anchors in base materials that are hollow or contain voids, such as hollow block and brick. The open-mesh collar on this Opti-Mesh tube allows extra adhesive flow specifically for hollow block applications, ensuring a complete and reliable bond.
- How does the Opti-Mesh screen tube prevent installation errors?
- The integral cap centers the rod and displays the drill bit and rod diameter for easy reference, while the flanges prevent the screen tube from slipping into over-drilled holes - both features working together to help ensure a correct and consistent installation.
Note: Product dimensions may differ from picture. Please refer to the specifications listed above for exact dimensions.
