Product Description

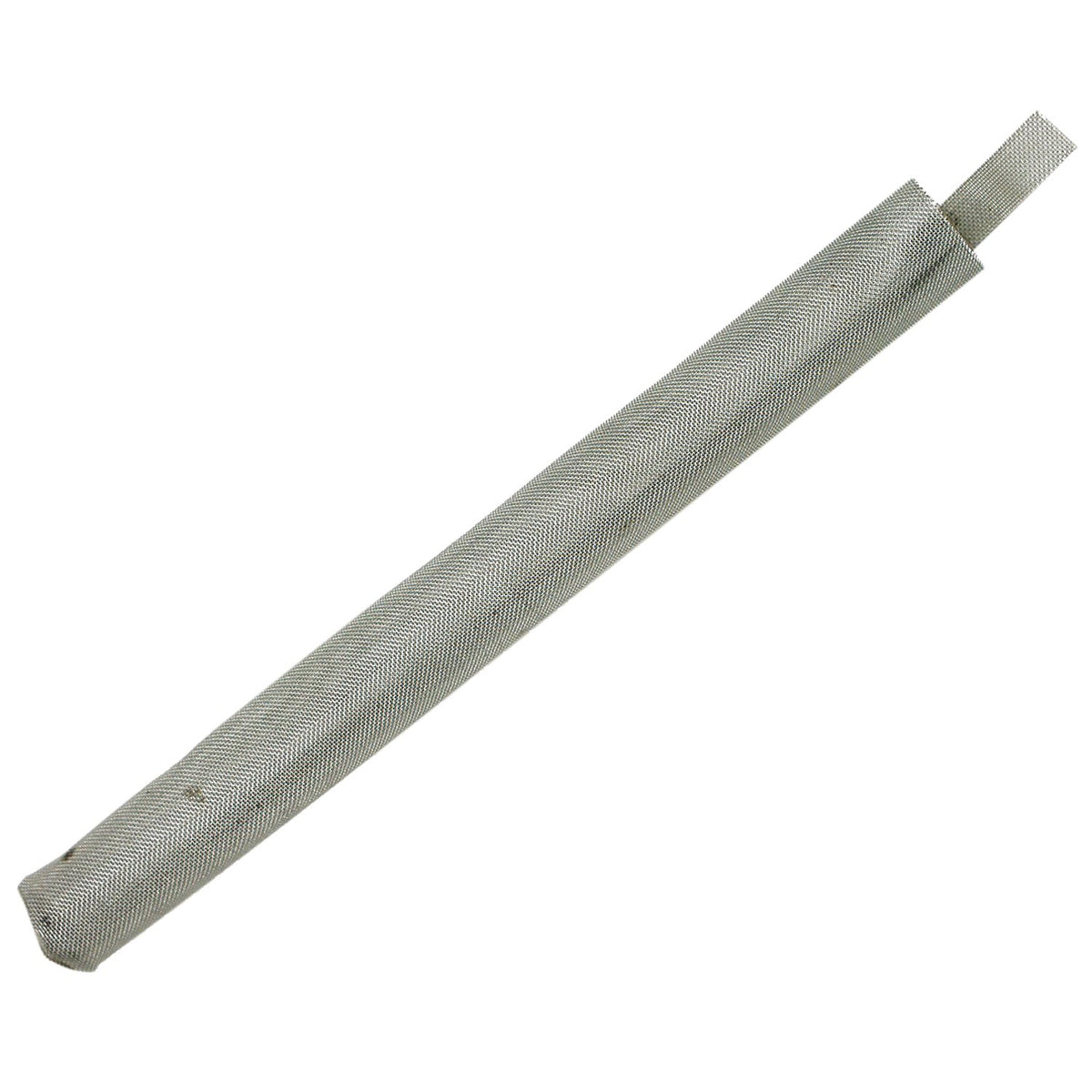

The Simpson ETS626 6-in. Steel Epoxy-Adhesive Screen Tube for 5/8-in. Rod by Simpson Strong-Tie is an essential accessory for hollow base material anchoring applications. Engineered from 60 mesh carbon steel, this screen tube contains adhesive around the anchor and prevents it from migrating into voids, ensuring thorough coating and a reliable bond between the rod, the screen tube, and the surrounding base material.
Key Features
- Caution: Screen tubes are designed for a specific adhesive type
- This epoxy screen tube must be used with ET-3G formulations
- For 5/8-in. rod diameter
- Hole size: 7/8 in.
- Length: 6 in.
- Made from 60 mesh carbon steel
Specifications
- Manufacturer Part Number (MPN): ETS626
- Brand: Simpson Strong-Tie
- Material: Carbon Steel
- Finish: Carbon Steel
- Bolt/Rod Diameter: 5/8 in.
- Hole Size: 7/8 in.
- Diameter: 25/32 in.
- Length: 6 in.
- Mesh: 60 mesh
- Compatible Adhesive: Simpson Strong-Tie ET-3G epoxy adhesive
- Packaging: Packs of 1 and Cartons of 50
- Country of Origin: China
Approved Applications

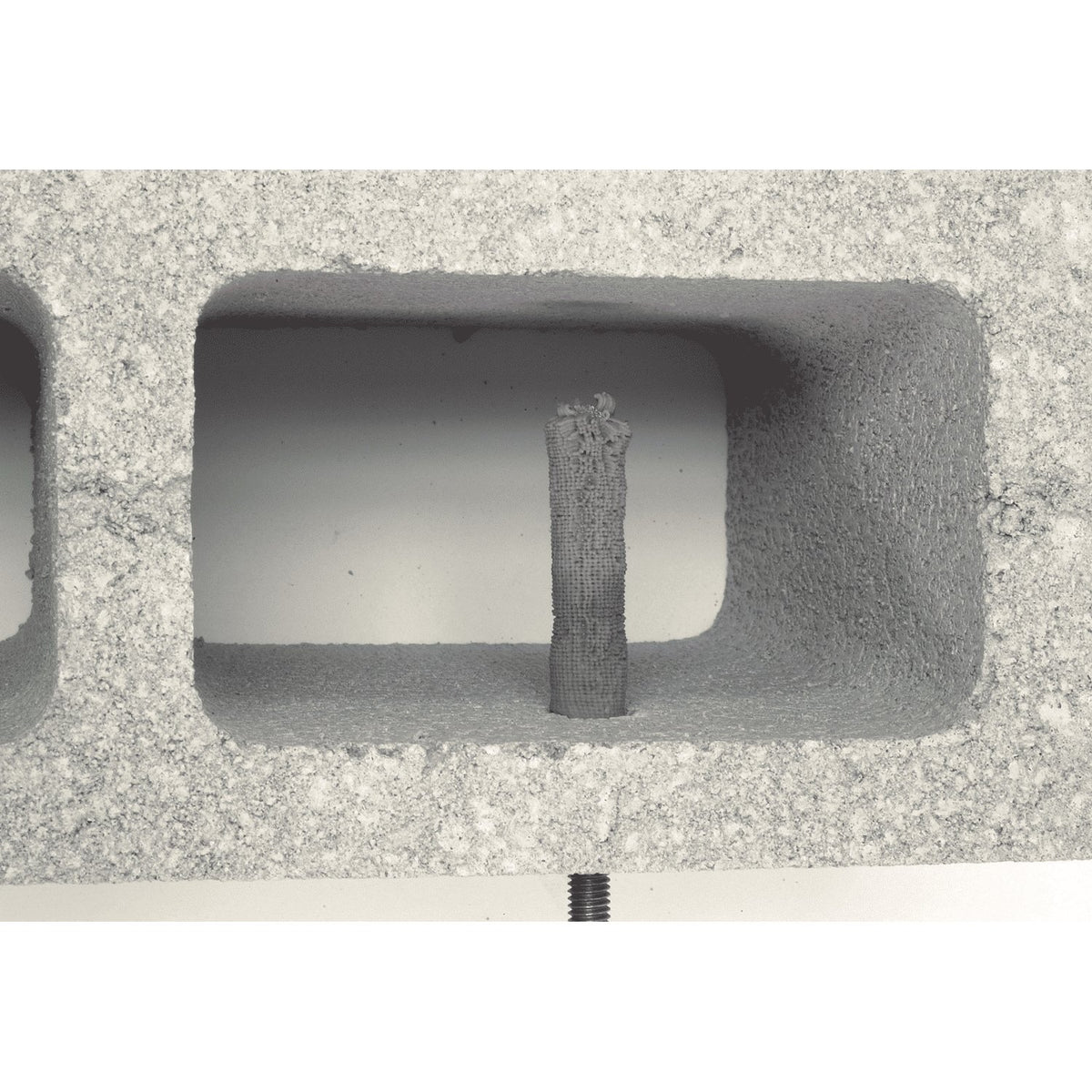

- Hollow base material anchoring applications requiring adhesive containment
- Use with Simpson Strong-Tie ET-3G epoxy adhesive to precisely control adhesive flow through the mesh
- Anchoring threaded rod or rebar where voids in the base material could cause adhesive loss
Frequently Asked Questions
- What adhesive is this screen tube compatible with?
- The ETS626 epoxy screen tube is specifically designed for use with Simpson Strong-Tie ET-3G epoxy adhesive formulations. Using it with any other adhesive type is not recommended, as screen tubes are engineered to work with a specific adhesive in order to precisely control the amount of adhesive that passes through the mesh.
- What rod diameter is the ETS626 designed to accommodate?
- This screen tube is designed for a 5/8-in. rod diameter. The corresponding hole size for installation is 7/8 in., and the outside diameter of the screen tube itself is 25/32 in.
- Why are screen tubes used in hollow base material applications?
- Screen tubes are used in hollow base material applications to contain the adhesive around the anchor and prevent it from running into voids. This ensures thorough coating and bonding of the rod to both the screen tube and the base material, resulting in a strong, reliable connection.
- What is the ETS626 screen tube made of?
- The ETS626 screen tube is made from 60 mesh carbon steel, which provides the precise mesh sizing needed to control adhesive flow and achieve consistent, thorough coverage around the anchor rod.
Note: Screen tubes are designed for a specific adhesive type. This epoxy screen tube must be used exclusively with Simpson Strong-Tie ET-3G formulations. Always verify adhesive compatibility before installation.
