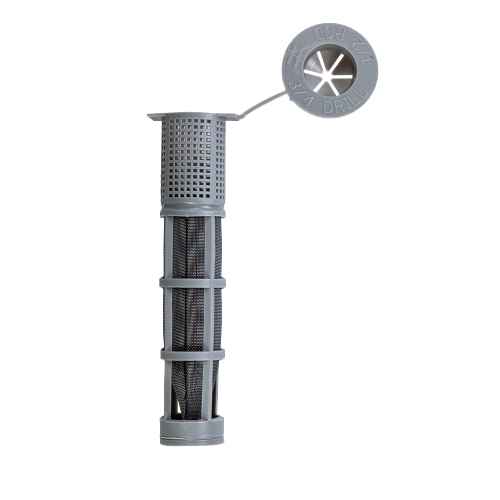

Simpson Strong-Tie Opti-Mesh 6 in. Epoxy Adhesive Plastic Screen Tube for 3/8 in. Rod (SET-3G) - Model 3GWS376P is engineered by Simpson Strong-Tie to deliver reliable, controlled adhesive dispensing in hollow or void-containing base materials such as hollow block and brick. Designed exclusively for use with the SET-3G epoxy adhesive formulation, this gray plastic screen tube features a woven mesh insert that provides the economical advantage of a plastic screen tube while delivering superior performance compared to steel screen tubes and competitive plastic screen tubes.

Key Features

• Integral cap centers the rod and displays drill bit and rod diameter
• Flanges prevent the screen tube from slipping into over-drilled holes
• Formula-specific woven mesh design controls flow of adhesive out of the screen
• Open-mesh collar allows extra adhesive flow in hollow block applications
• Made in the United States from durable plastic construction
• Caution: Screen tubes are designed for a specific adhesive type; epoxy screen tubes must be used with SET-3G formulation

Specifications

• MPN: 3GWS376P
• Brand: Simpson Strong-Tie
• Compatible Adhesive: SET-3G Epoxy
• Rod Diameter: 3/8 in.
• Hole Size: 9/16 in.
• Length: 6 in.
• Material: Plastic
• Color: Gray
• Packaging: Packs of 1 and Cartons of 150
• Country of Origin: United States

Frequently Asked Questions

What adhesive formulation must be used with this screen tube?

This Opti-Mesh screen tube is designed specifically for use with the SET-3G epoxy adhesive formulation. Epoxy screen tubes must not be substituted with screen tubes designed for other adhesive types, as each screen tube is formula-specific to ensure proper adhesive flow and anchor performance.

What rod diameter and hole size is this screen tube compatible with?

This screen tube is designed for a 3/8 in. rod diameter and requires a 9/16 in. hole size. The integral cap conveniently displays both the required drill bit size and rod diameter to help prevent installation errors.

Why use a plastic screen tube instead of a steel screen tube?

The Simpson Strong-Tie Opti-Mesh screen tube with woven mesh insert provides the economical advantage of a plastic screen tube while delivering superior performance to both steel screen tubes and competitive plastic screen tubes, making it a cost-effective yet high-performing choice for adhesive anchor applications.

What prevents the screen tube from slipping into an over-drilled hole?

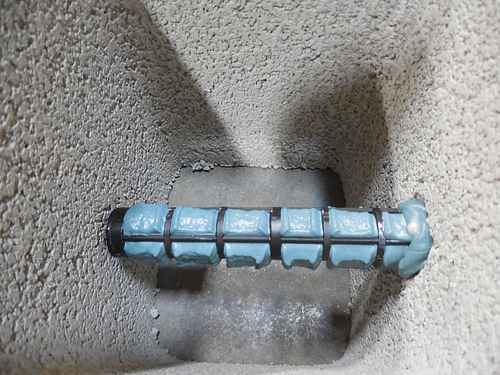

The screen tube is equipped with flanges that prevent it from slipping into over-drilled holes, helping to maintain proper positioning during adhesive dispensing. Additionally, the open-mesh collar allows extra adhesive flow specifically in hollow block applications where voids are present.

Note: Product dimensions may differ from picture. Please see the item description above for specifications.
