Product Description

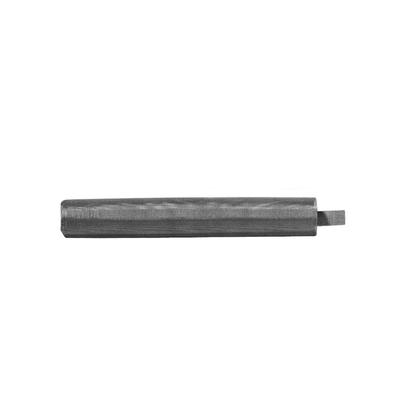

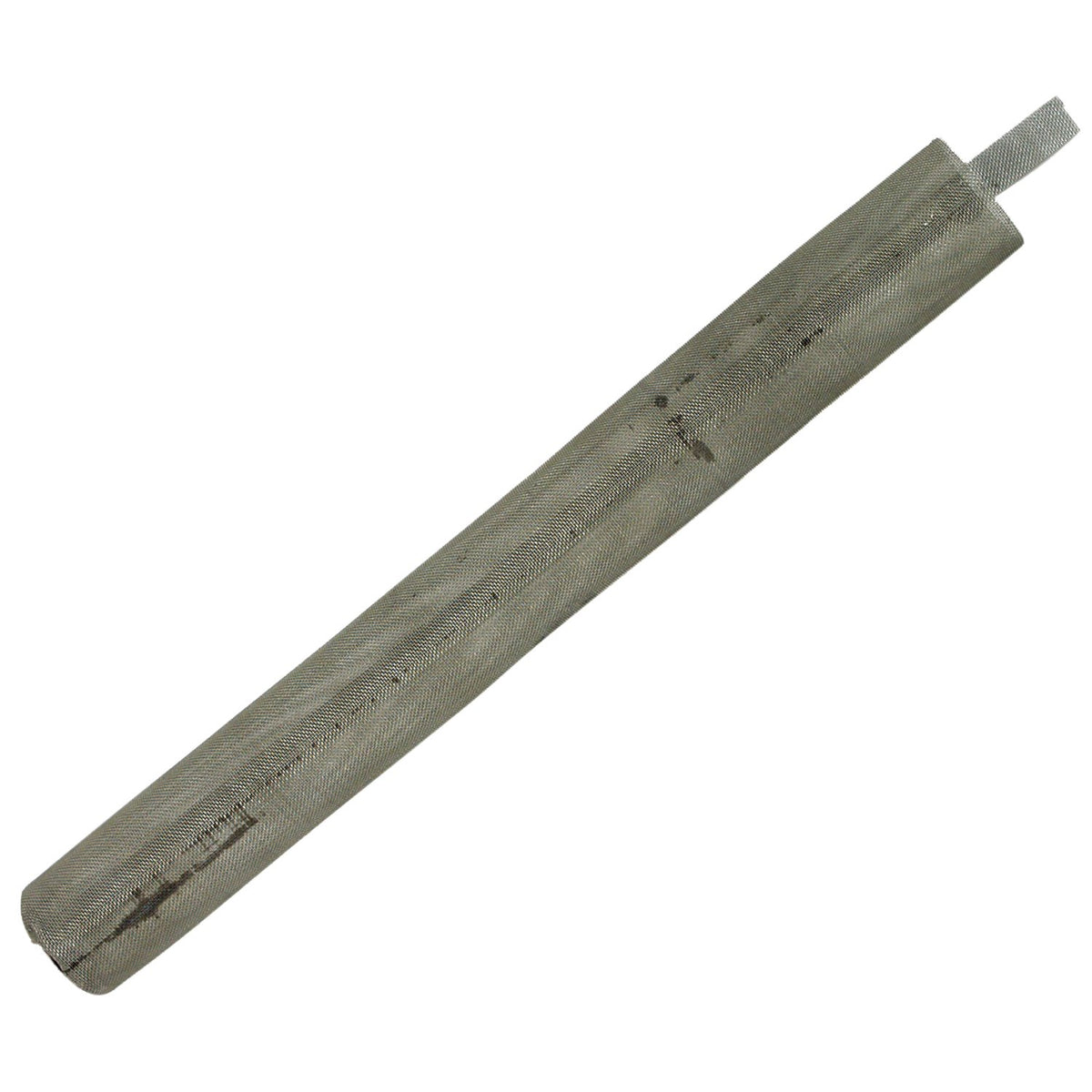

The Simpson Strong-Tie ETS758 8-in. Steel Epoxy-Adhesive Screen Tube is a 60 mesh carbon steel screen tube engineered for use in hollow base material applications where adhesive must be precisely contained around the anchor. Designed by Simpson Strong-Tie to work exclusively with ET-3G epoxy adhesive formulations, this screen tube controls the amount of adhesive that passes through the mesh, resulting in thorough coating and bonding of the rod to the screen tube and base material - preventing adhesive from running into voids.
Key Features
- Specifically designed for use in hollow base material applications to contain adhesive around the anchor and prevent it from running into voids
- Precisely controls the amount of adhesive that passes through the mesh for thorough coating and bonding of the rod to the screen tube and base material
- Caution: Screen tubes are designed for a specific adhesive type - this epoxy screen tube must be used with ET-3G formulations
- Sized for 3/4-in. rod diameter
- Requires a 1-in. hole size
- 8-in. length for deep embedment applications
- Made from 60 mesh carbon steel for durable, consistent adhesive flow control
Specifications
- MPN: ETS758
- Brand: Simpson Strong-Tie
- Material: Carbon Steel
- Finish: Carbon Steel
- Mesh: 60 mesh
- Bolt/Rod Diameter: 3/4 in.
- Outside Diameter: 31/32 in.
- Hole Size: 1 in.
- Length: 8 in.
- Compatible Adhesive: Simpson Strong-Tie ET-3G epoxy adhesive
- Packaging: Packs of 1 and Cartons of 25
- Country of Origin: China
Approved Applications

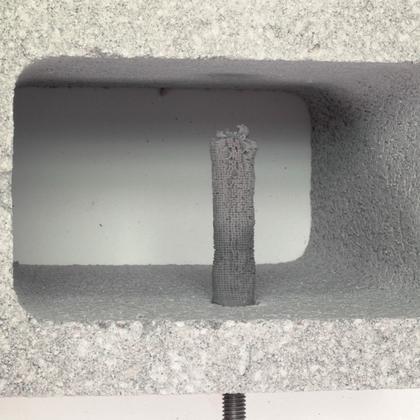

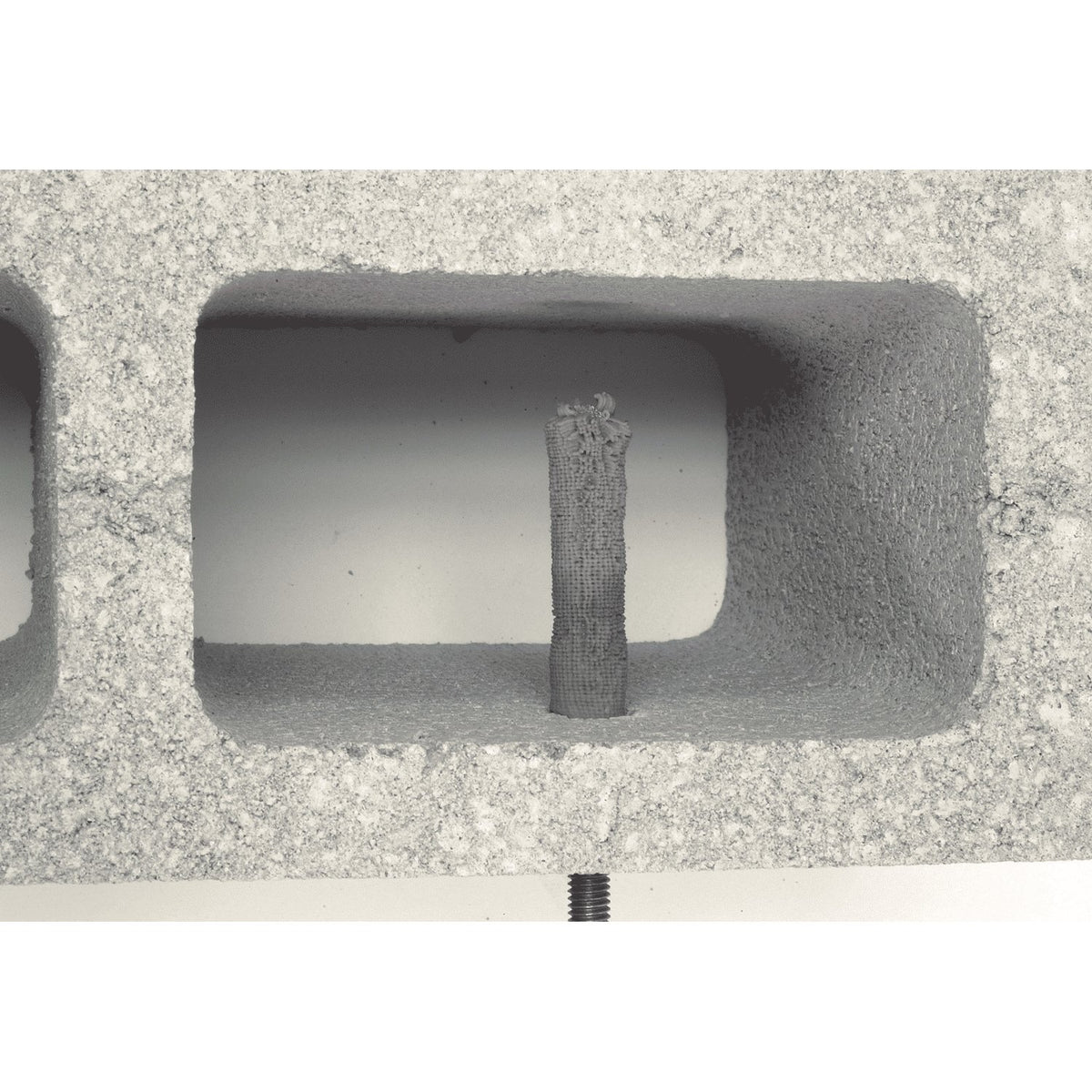

- Hollow base material anchoring applications requiring adhesive containment
- Post-installed anchor rod installations using ET-3G epoxy adhesive
- Applications where adhesive must be prevented from running into voids within the base material
Frequently Asked Questions
- Which adhesive must be used with the ETS758 screen tube?
- The ETS758 epoxy screen tube is specifically designed to work with Simpson Strong-Tie ET-3G epoxy adhesive formulations. Using a different adhesive type with this screen tube is not recommended, as screen tubes are designed for a specific adhesive type to ensure proper adhesive flow through the mesh.
- What rod diameter is the ETS758 screen tube designed to accept?
- The ETS758 screen tube is sized for a 3/4-in. rod diameter. It has an outside diameter of 31/32 in. and requires a 1-in. drilled hole in the base material.
- Why are screen tubes used in hollow base material applications?
- Screen tubes are used in hollow base material applications to contain the adhesive around the anchor and prevent it from running into voids within the material. The 60 mesh carbon steel construction of the ETS758 precisely controls the amount of adhesive that passes through, resulting in thorough coating and bonding of the rod to the screen tube and base material.
- What is the length of the ETS758 screen tube?
- The Simpson Strong-Tie ETS758 screen tube has a length of 8 in., making it suitable for applications that require deeper embedment of the anchor rod in hollow base materials.
