Product Description

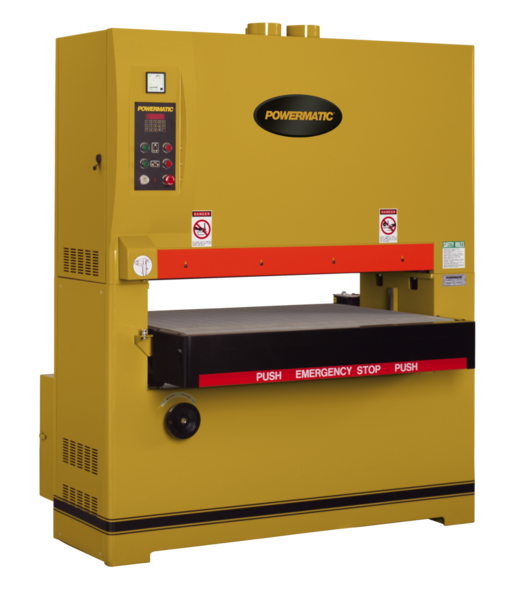

The Powermatic WB-43 43" Wide Belt Sander is a professional-grade sanding solution engineered for precision surface finishing. Powered by a robust 25HP, 3-phase, 460V electrical system, this machine combines centralized controls, a digital readout, and a three-motor drive system to deliver exceptional accuracy and a flawless finish on every workpiece.
Key Features

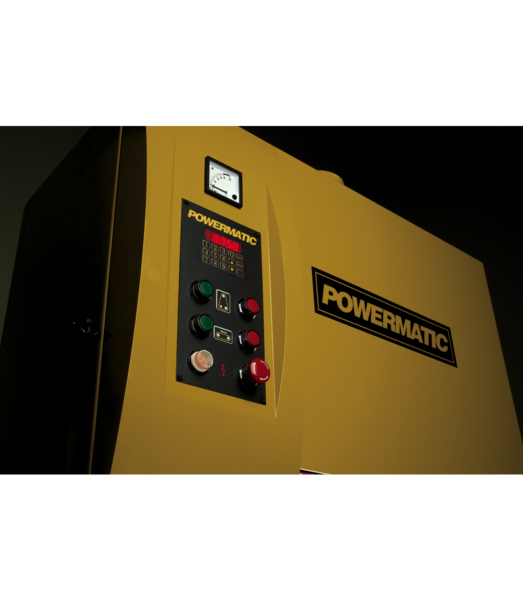

- Centralized controls allow you to access all the needed buttons on one simple panel
- Digital readout will show the user the exact thickness of the finished piece, or will allow you to preset exactly the thickness you prefer for the finished piece

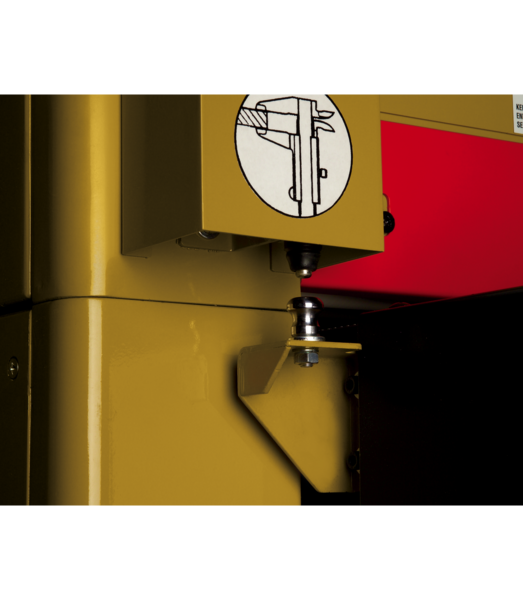

- The auto thicknesser will capture the piece of wood to give the user the exact starting thickness

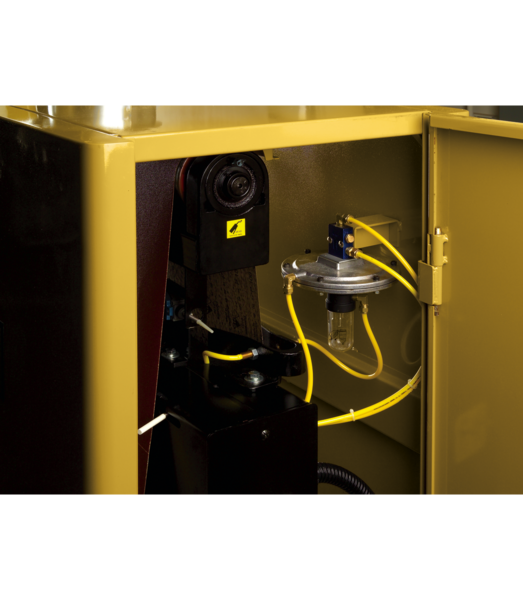

- The pneumatic sensor system controls the sanding belt oscillation to prevent the belt from running off the ends of the drums, as well as use the sanding surface more uniformly without leaving sanding lines on the workpiece
- The three motor system allows for maximum horsepower to independently power the sanding drums, the variable speed feed, and the feed table movement
- The variable speed feed belt allows you to accurately dial in the exact feed speed to best suit your project
- Disc brake slows the machine quickly and will activate immediately to stop machine in an emergency
- Includes 2 sanding belts, 100 and 180 grit, ready for immediate use
Specifications
- Model: WB-43
- MPN: PM9-1790843-4
- Sanding Width: 43"
- Motor Power: 25HP
- Phase: 3-Phase
- Voltage: 460V
- Drive System: Three motor system
- Feed System: Variable speed feed belt
- Belt Oscillation Control: Pneumatic sensor system
- Readout: Digital readout (DRO)
- Braking: Disc brake
- Country of Origin: Taiwan
What's Included
- Powermatic WB-43 43" Wide Belt Sander
- 2 Sanding belts - 100 grit and 180 grit
Frequently Asked Questions
- What does the digital readout (DRO) do on the WB-43?
- The digital readout will show the user the exact thickness of the finished piece, or will allow you to preset exactly the thickness you prefer for the finished piece, giving you precise, repeatable results on every pass.
- How does the WB-43 prevent sanding lines from appearing on the workpiece?
- The pneumatic sensor system controls the sanding belt oscillation to prevent the belt from running off the ends of the drums, as well as use the sanding surface more uniformly without leaving sanding lines on the workpiece.
- What is the purpose of the three motor system on this sander?
- The three motor system allows for maximum horsepower to independently power the sanding drums, the variable speed feed, and the feed table movement, ensuring each function operates at optimal performance without compromising another.
- What safety features are built into the Powermatic WB-43?
- The WB-43 is equipped with a disc brake that slows the machine quickly and will activate immediately to stop the machine in an emergency, providing an important layer of operator safety during use.
