Product Description

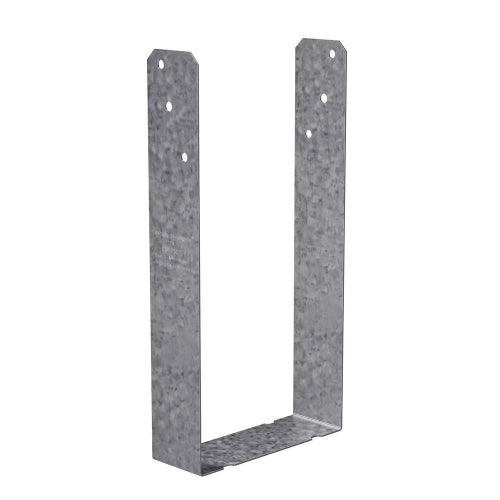

The Simpson SP4Z SP 3-9/16 in. x 7-1/4 in. ZMAX Galvanized Stud Plate Tie by Simpson Strong-Tie is a U-shaped structural connector engineered to create a reliable stud-to-plate connection that resists uplift forces in wood-framed walls. Designed to bear against wood-wall top plates or sill plates via its horizontal portion, with two vertical legs nailed directly to the edges of a wood stud, this tie delivers a cost-effective solution for resisting wind and seismic forces when installed prior to wall placement.
Key Features
- Load rated for structural confidence in residential and light commercial framing applications
- Designed to resist wind and seismic forces, helping walls meet modern building code requirements
- Does not require top or bottom track attachment, simplifying installation
- U-shaped profile with a horizontal bearing portion and two vertical legs that nail to the edges of a wood stud
- Nominal stud size: 2x
- Nominal plate width: 4x
- Made from 20-gauge steel for a balance of strength and workability
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Made in the United States
Specifications
- Model Number: SP4Z
- Width: 3-9/16 in.
- Length: 7-1/4 in.
- Gauge: 20
- Coating/Finish: ZMAX
- Member Size: 2x stud; 4x plate
- Install With: (6) 0.148 in. x 1-1/2 in. nails
- Country of Origin: United States
Frequently Asked Questions
- What is the SP4Z stud plate tie designed to do?

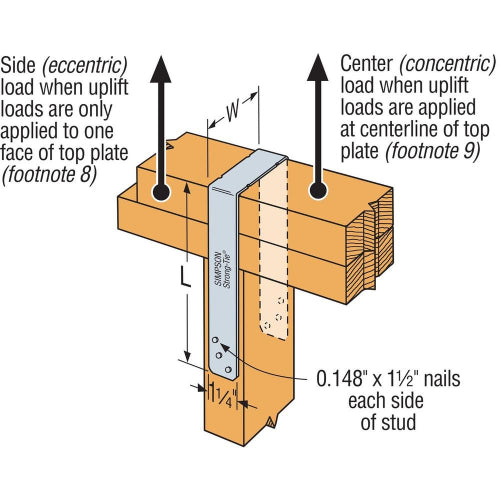

- The SP4Z is designed as a stud-to-plate connection to resist uplift. Its U-shaped profile features a horizontal portion that bears against the wood-wall top plates or sill plates and two vertical legs that are nailed to the edges of a wood stud, helping the wall assembly resist wind and seismic forces.
- What size stud and plate is the SP4Z compatible with?
- The SP4Z is sized for a nominal 2x stud and a nominal 4x plate, with a width of 3-9/16 in. and a length of 7-1/4 in.
- What fasteners are required to install the SP4Z?
- Installation requires (6) 0.148 in. x 1-1/2 in. nails. For best results, the tie should be properly installed before the placement of the wall.
- Why does the SP4Z feature ZMAX galvanization?
- ZMAX galvanization offers extra corrosion resistance, making the SP4Z well suited for exterior applications and installations involving treated wood, where standard galvanization may not provide adequate long-term protection.
