Product Description
Simpson THGWV7.25/9 Truss Hanger for Girders, Wraparound Design, Bolted is an extra-high-capacity, bolted hanger from Simpson Strong-Tie engineered for the reliable installation of multi-ply girder trusses. This welded hanger attaches to a vertical web and features a unique wraparound shape that supports higher loads through a double-shear design, making it an ideal choice for demanding structural applications.
Key Features
- Extra-high-capacity, bolted design engineered for multi-ply girder truss installations
- Unique wraparound shape supports higher loads with a double-shear design
- Welded construction for enhanced structural integrity
- Attaches directly to a vertical web for secure, stable support
- Finished with Simpson Strong-Tie Gray Paint for corrosion resistance
- 14-gauge steel construction for heavy-duty performance
- Accommodates joist sizes from 7 x 9 1/4 up to 14
Specifications
- Model Number: THGWV7.25/9
- Brand: Simpson Strong-Tie
- Joist Size: 7 x 9 1/4 - 14
- Gauge: 14
- Width: 3 in.
- HB (Height of Back): 9 in.
- Coating/Material: Simpson Strong-Tie Gray Paint
- Country of Origin: United States
Frequently Asked Questions
- What type of structural application is the THGWV7.25/9 designed for?
- The THGWV7.25/9 is designed specifically for installing multi-ply girder trusses. It is an extra-high-capacity, bolted hanger that attaches to a vertical web and uses a wraparound shape to support higher loads with a double-shear design.
- What is the minimum requirement for the carrying member when using this hanger?
- The carrying member must be a minimum two-ply girder truss to allow for the required minimum screw penetration. Additionally, the carrying member must have a maximum 11 7/8" bottom chord to allow for the minimum bolt end distance.
- Are there any important installation guidelines for the bolts?
- Yes. Bolts must be installed symmetrically when fewer than the maximum number of bolts are used on the backplate. All multiple members must also be fastened together to act as a single unit to ensure proper load transfer and structural performance.
- Is lateral bracing required when using this truss hanger?
- Yes. Girders must have adequate lateral bracing to prevent excessive displacement due to secondary torsional stresses. This requirement is in accordance with ANSI/TPI 1-2014 Section 7.5.3.5.

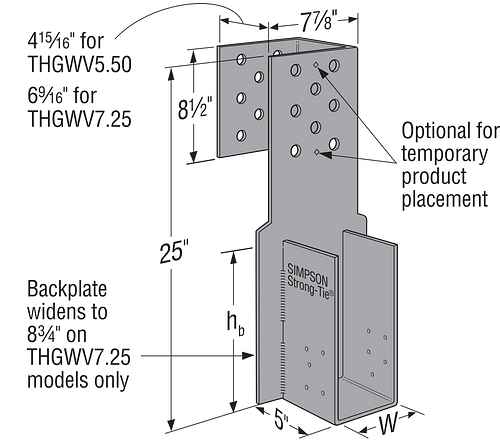

Note: Product dimensions and/or screw or bolt holes may differ from picture.
