Product Description
Simpson THGWV5.50/9 Truss Hanger for Girders with Wraparound Design is a heavy-duty, bolted connector from Simpson Strong-Tie engineered for installing multi-ply girder trusses with exceptional load capacity. This welded hanger attaches to a vertical web and features a unique wraparound shape that supports higher loads through a double-shear design, making it a trusted solution for demanding structural framing applications.
Key Features
- Extra-high-capacity, bolted hanger designed specifically for multi-ply girder truss installation
- Wraparound design attaches to a vertical web for enhanced structural support
- Double-shear design enables higher load performance compared to standard hangers
- Welded construction for superior strength and durability
- Finished in Simpson Strong-Tie Gray Paint for corrosion resistance
- 14-gauge steel construction provides robust, reliable performance
- Joist size compatibility: 5-1/4 x 9-1/4 through 14
- 3-inch width with 5-1/2-inch HB dimension
- Made in the United States
Specifications
- Model Number: THGWV5.50/9
- Brand: Simpson Strong-Tie
- Joist Size: 5-1/4 x 9-1/4 - 14
- Gauge: 14
- Width: 3 inches
- HB (in.): 9
- Coating/Material: Simpson Strong-Tie Gray Paint
- Country of Origin: United States
Frequently Asked Questions
- What type of structural members is the THGWV5.50/9 designed to support?
- This hanger is specifically designed for installing multi-ply girder trusses. The carrying member must be a minimum two-ply girder truss to allow for required minimum screw penetration.
- What is the maximum bottom chord size allowed in the carrying member?
- The maximum bottom chord in the carrying member is 11-7/8 inches to allow for the minimum required bolt end distance.
- Are there specific requirements for bolt installation on the backplate?
- Yes. Bolts must be installed symmetrically when fewer than the maximum number of bolts are used on the backplate to ensure proper load distribution and structural integrity.
- Is lateral bracing required for girders installed with this hanger?
- Yes. Girders must have adequate lateral bracing to prevent excessive displacement due to secondary torsional stresses, as referenced in ANSI/TPI 1-2014 Section 7.5.3.5. Additionally, all multiple members must be fastened together to act as a single unit.

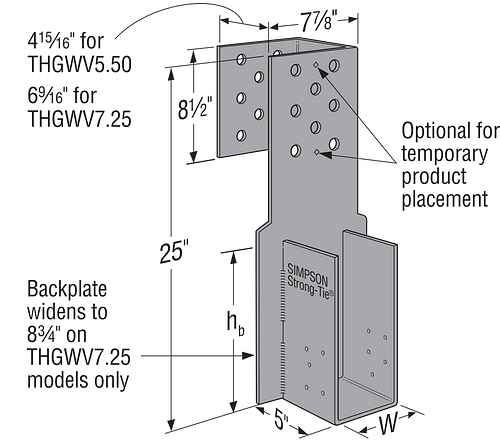

Note: Product dimensions and/or screw or bolt holes may differ from picture.
