Product Description

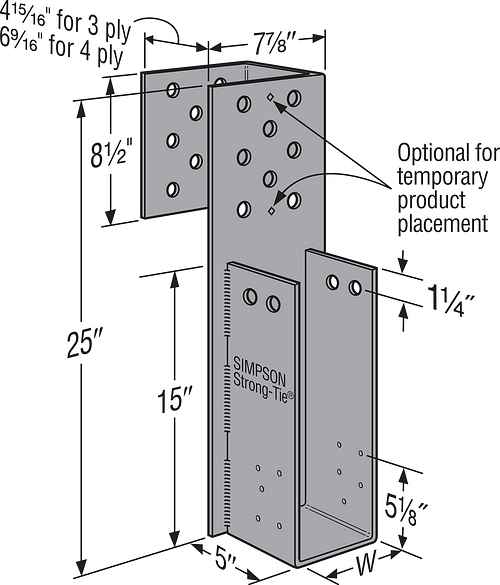

Simpson THGW3-3 THGW 4-15/16 in. Heavy Bolted Wraparound Girder Truss Hanger is an extra-high-capacity, welded truss hanger engineered by Simpson Strong-Tie for installing multi-ply girder trusses. The bolted THGW series features a unique wraparound design that supports higher loads through a double-shear configuration, attaching to a vertical web for secure, dependable connections. Engineered and tested to the highest quality standards, this hanger is the choice of engineers and contractors for projects requiring strength, safety, and code compliance.
Key Features
- A 3-ply carrying member is required for the THGW3-3
- Seat width: 4-15/16 in.
- Made from 3-gauge steel
- Simpson Strong-Tie gray paint finish
- Wraparound design supports higher loads with double-shear configuration
- High-capacity welded construction designed for multi-ply girder trusses
- All multiple members must be fastened together to act as a single unit
- Maximum 11-7/8 in. bottom chord in the carrying member to allow for the minimum bolt end distance
- Bolts must be installed symmetrically when fewer than the maximum number of bolts are used on the backplate
- Girders must have adequate lateral bracing to prevent excessive displacement due to secondary torsional stresses
Specifications
- Model Number: THGW3-3
- Brand: Simpson Strong-Tie
- Seat Width: 4-15/16 in.
- Gauge: 3
- Coating/Finish: Simpson Strong-Tie Gray Paint
- Install With: Install with 10d common nails and 3/4 in. machine bolts
- Country of Origin: United States
Frequently Asked Questions
- What carrying member is required for the THGW3-3?
- A 3-ply carrying member is required for the THGW3-3 to ensure proper load transfer and structural performance.
- What fasteners are needed to install the THGW3-3?
- Install with 10d common nails and 3/4 in. machine bolts as specified by Simpson Strong-Tie for this hanger model.
- What gauge steel is the THGW3-3 made from?
- The THGW3-3 is made from heavy-duty 3-gauge steel, providing the high-capacity strength required for multi-ply girder truss applications.
- Why is lateral bracing important when using the THGW3-3?
- Girders must have adequate lateral bracing to prevent excessive displacement caused by secondary torsional stresses, in accordance with ANSI/TPI 1-2014 Section 7.5.3.5.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
