Product Description

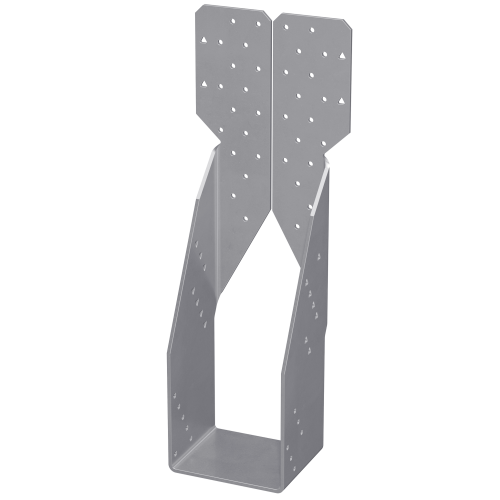

The Simpson THGQH4-SDS6 THGQH 6-9/16 in. Heavy-Duty Girder Truss Hanger with Strong-Drive SDS Screws by Simpson Strong-Tie is a heavy hanger engineered for a girder truss or a structural composite lumber beam attached to a girder truss. A lower-cost alternative to bolted hangers, the THGQH uses Strong-Drive SDS Heavy-Duty Connector screws to provide high load capacities and easier installation, while offering minimum and maximum fastener quantities to accommodate varying design needs.
Key Features
- Strong-Drive SDS Heavy-Duty Connector screws are included to help transfer the load between the plies of the supporting girder when they penetrate all plies
- Increased allowable loads available when wider vertical web is used
- Various models may be skewed 45 deg.
- Seat width: 6-9/16 in.
- Height: 25 in.
- Made from 3-gauge steel
- Simpson Strong-Tie gray paint finish
Specifications
- Model Number: THGQH4-SDS6
- Gauge: 3
- Seat Width: 6-9/16 in.
- Height: 25 in.
- Coating/Finish: Simpson Strong-Tie Gray Paint
- Install With: 1/4 in. x 6 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
- Country of Origin: United States
What's Included
- 1/4 in. x 6 in. Strong-Drive SDS Heavy-Duty Connector screws
Frequently Asked Questions
- What is the THGQH4-SDS6 designed to support?
- The THGQH4-SDS6 is a heavy hanger designed for a girder truss or a structural composite lumber beam attached to a girder truss, providing high load capacities in demanding structural applications.
- What fasteners are used with this hanger, and are they included?
- This hanger installs with 1/4 in. x 6 in. Strong-Drive SDS Heavy-Duty Connector screws, which are included with the product. These screws help transfer the load between the plies of the supporting girder when they penetrate all plies.
- Can the THGQH4-SDS6 be skewed for angled installations?
- Yes, various models in the THGQH series may be skewed 45 deg., offering flexibility for angled structural connections depending on your design requirements.
- How does this hanger compare to bolted hangers in terms of cost and installation?
- The THGQH4-SDS6 is a lower-cost alternative to bolted hangers. By using Strong-Drive SDS Heavy-Duty Connector screws instead of bolts, it delivers high load capacities while providing easier installation, and offers minimum and maximum fastener quantities to accommodate varying design needs.
Note: Product dimensions and/or screw or bolt holes may differ from picture.
