Product Description
Simpson THGQH3-SDS4.5 THGQH 4-15/16 in. Heavy-Duty Girder Truss Hanger with Strong-Drive SDS Screws is a heavy hanger from Simpson Strong-Tie designed for a girder truss or a structural composite lumber beam attached to a girder truss. A lower-cost alternative to bolted hangers, the THGQH uses Strong-Drive SDS Heavy-Duty Connector screws to provide high load capacities and easier installation. The THGQH offers minimum and maximum fastener quantities to accommodate varying design needs.
Key Features
- Strong-Drive SDS Heavy-Duty Connector screws are included to help transfer the load between the plies of the supporting girder when they penetrate all plies
- Increased allowable loads available when wider vertical web is used
- Various models may be skewed 45 deg.
- Seat width: 4-15/16 in.
- Height: 25 in.
- Made from 3-gauge steel
- Simpson Strong-Tie gray paint finish
Specifications
- MPN: THGQH3-SDS4.5
- Gauge: 3
- Seat Width: 4-15/16 in.
- Height: 25 in.
- Coating/Finish: Simpson Strong-Tie Gray Paint
- Country of Origin: United States
- Install With: 1/4 in. x 4-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
What's Included
- 1/4 in. x 4-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
Frequently Asked Questions
- What type of structural applications is the THGQH3-SDS4.5 designed for?
- The THGQH is a heavy hanger designed for a girder truss or a structural composite lumber beam attached to a girder truss, making it well suited for demanding structural framing applications.
- What fasteners are used with the THGQH3-SDS4.5, and are they included?
- This hanger is installed with 1/4 in. x 4-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws, which are included with the hanger. These screws help transfer the load between the plies of the supporting girder when they penetrate all plies.
- How does the THGQH compare to bolted hangers?
- The THGQH is a lower-cost alternative to bolted hangers. It uses Strong-Drive SDS Heavy-Duty Connector screws to provide high load capacities while offering easier installation compared to traditional bolted connections.
- Can the THGQH3-SDS4.5 be skewed, and can load capacity be increased?
- Yes, various models may be skewed 45 deg.. Additionally, increased allowable loads are available when a wider vertical web is used, providing flexibility to accommodate varying design needs.

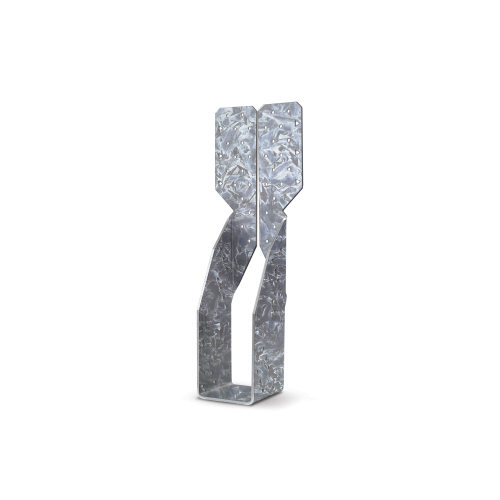

Note: Product dimensions and/or screw or bolt holes may differ from picture.
