Key Features

• Strong-Drive SDS Heavy-Duty Connector Screws Included: Supplied screws penetrate all plies of the supporting girder, helping to transfer load effectively between plies for a secure, high-capacity connection.
• High Load Capacity: Increased allowable loads are available when a wider vertical web is used, offering flexibility for demanding structural applications.
• Lower-Cost Alternative to Bolted Hangers: The THGQH design provides high performance comparable to bolted hangers while simplifying the installation process.
• Flexible Fastener Quantities: Minimum and maximum fastener quantities are offered to accommodate varying design needs and engineering requirements.
• Skewable Design: Various models in the THGQH line may be skewed up to 45 deg. to suit angled framing conditions.
• Gray Paint Finish: Simpson Strong-Tie Gray Paint coating provides corrosion resistance suitable for interior structural environments.
• Made in the USA: Manufactured domestically to Simpson Strong-Tie's stringent quality standards.

Specifications

• Model Number: THGQH3.62-SDS
• Manufacturer Part Number (MPN): THGQH3.62-SDS
• Gauge: 3
• Width: 3-5/8 in.
• Height: 24-1/2 in.
• HB: 11 in.
• Coating / Material: Simpson Strong-Tie Gray Paint
• Fastener Type Included: Strong-Drive SDS Heavy-Duty Connector Screws
• Country of Origin: United States

Approved Applications

• Attaching a girder truss to a supporting girder truss
• Connecting a structural composite lumber (SCL) beam to a girder truss
• Applications requiring high load-capacity hanger connections without traditional bolted hardware
• Framing situations that demand flexible minimum or maximum fastener configurations to meet design specifications
• Installations where angled connections are required (up to 45 deg. skew on compatible models)

What's Included

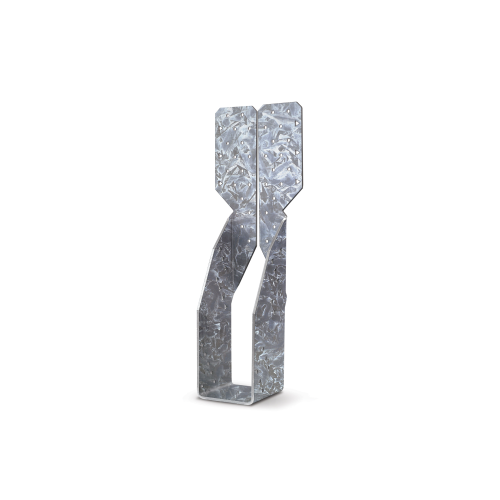

• 1x Simpson THGQH3.62-SDS Heavy Truss Hanger
• Strong-Drive SDS Heavy-Duty Connector Screws (supplied for all round and triangle holes)

Frequently Asked Questions

What type of connection is the THGQH3.62-SDS designed for?

The THGQH3.62-SDS is designed to attach a girder truss or a structural composite lumber beam to a supporting girder truss. It is intended for heavy structural applications requiring high load capacity connections.

Do the required fasteners come included with this hanger?

Yes, Strong-Drive SDS Heavy-Duty Connector screws are included with the hanger. These screws are engineered to penetrate all plies of the supporting girder, helping to transfer load effectively between plies for a secure, high-capacity connection.

How does this hanger compare to traditional bolted hangers?

The THGQH3.62-SDS is designed as a lower-cost alternative to bolted hangers. It delivers high performance comparable to bolted hanger connections while simplifying the installation process by using Strong-Drive SDS screws instead of traditional bolt hardware.

Is there any flexibility in how this hanger can be installed for angled framing conditions?

Yes, models in the THGQH line feature a skewable design that allows the hanger to be skewed up to 45 deg. to accommodate angled framing conditions. Additionally, increased allowable loads are available when a wider vertical web is used, and flexible minimum and maximum fastener quantities are offered to suit varying design and engineering requirements.
