Product Description

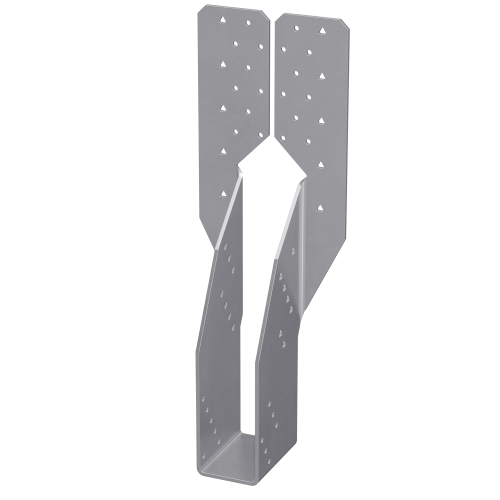

The Simpson THGQH2-SDS3 THGQH 3-5/16 in. Heavy-Duty Girder Truss Hanger with Strong-Drive SDS Screws by Simpson Strong-Tie is a heavy-duty hanger engineered for supporting a girder truss or a structural composite lumber beam attached to a girder truss. Serving as a lower-cost alternative to bolted hangers, it leverages included Strong-Drive SDS Heavy-Duty Connector screws to deliver high load capacities while simplifying installation. The THGQH offers minimum and maximum fastener quantities to accommodate varying design needs.
Key Features
- Strong-Drive SDS Heavy-Duty Connector screws are included to help transfer the load between the plies of the supporting girder when they penetrate all plies
- Increased allowable loads available when wider vertical web is used
- Various models may be skewed 45 deg.
- Seat width: 3-5/16 in.
- Height: 25 in.
- Made from 3-gauge steel
- Simpson Strong-Tie gray paint finish
Specifications
- MPN: THGQH2-SDS3
- Brand: Simpson Strong-Tie
- Gauge: 3
- Seat Width: 3-5/16 in.
- Height: 25 in.
- Coating/Finish: Simpson Strong-Tie Gray Paint
- Install With: 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
- Country of Origin: United States
What's Included
- 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws
Frequently Asked Questions
- What type of construction is the THGQH2-SDS3 designed for?
- The THGQH2-SDS3 is designed for use with a girder truss or a structural composite lumber beam attached to a girder truss, making it suitable for heavy-load framing applications.
- What fasteners are used to install this hanger, and are they included?
- This hanger is installed with 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws, which are included with the hanger. These screws help transfer the load between the plies of the supporting girder when they penetrate all plies.
- How thick is the steel used in this hanger?
- The THGQH2-SDS3 is made from 3-gauge steel, providing the heavy-duty strength required for girder truss applications.
- Can the load capacity of this hanger be increased?
- Yes, increased allowable loads are available when a wider vertical web is used, giving designers flexibility to meet varying structural requirements.
Note: Product dimensions and/or screw or bolt holes may differ from picture.
