Product Description

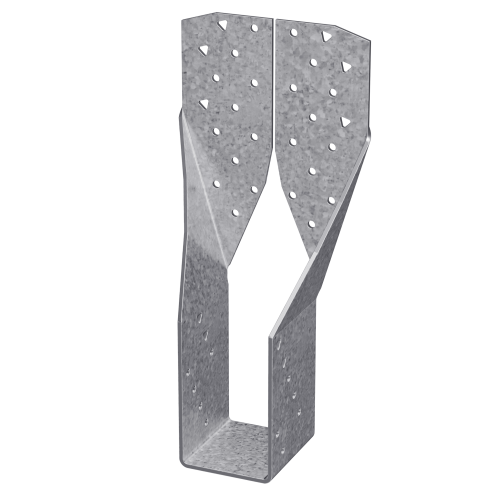

The Simpson THGQ3-SDS4.5 is a heavy-duty girder truss hanger engineered for multi-ply girder truss applications. As a lower-cost alternative to bolted hangers, the THGQ series uses Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws to deliver high load capacities with easier installation compared to traditional bolt-based systems. The included Strong-Drive SDS screws penetrate all plies of the supporting girder to effectively transfer loads between plies. Built from 7-gauge steel with a G90 zinc galvanized finish, this hanger is designed for durability and corrosion resistance. With a 4-15/16 in. seat width and 16 in. height, the THGQ3-SDS4.5 offers flexible fastener quantity options - minimum or maximum - to accommodate a range of structural design requirements.
Key Features
- Lower-cost alternative to bolted hangers, providing high load capacities with easier installation
- Strong-Drive SDS Heavy-Duty Connector screws help transfer the load between the plies of the supporting girder when they penetrate all plies
- Can be installed filling round holes only, or filling round and triangle holes for maximum values
- Offers minimum and optional maximum fastener quantities to accommodate varying design needs
- Seat width: 4-15/16 in.
- Height: 16 in.
- Made from 7-gauge steel for heavy-duty structural performance
- Galvanized (G90) for extra corrosion resistance
- Made in the United States
Specifications
- Manufacturer Part Number (MPN): THGQ3-SDS4.5
- Seat Width: 4-15/16 in.
- Height: 16 in.
- Gauge: 7
- Coating / Finish: Zinc Galvanized, G90
- Install With: 1/4 in. x 4-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
- Country of Origin: United States
Approved Applications
- Multi-ply girder truss connections requiring high load capacities
- Applications where a lower-cost alternative to bolted hangers is preferred
- Installations requiring flexible fastener quantity configurations - minimum round holes only, or maximum with round and triangle holes filled
- Projects where varying design load requirements must be accommodated
What's Included
- 1x Simpson THGQ3-SDS4.5 Heavy-Duty Girder Truss Hanger
- 1/4 in. x 4-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
Note: Product dimensions and/or screw or bolt holes may differ from picture.
Frequently Asked Questions
- What fasteners are used with the THGQ3-SDS4.5, and are they included?
- The THGQ3-SDS4.5 is installed using 1/4 in. x 4-1/2 in. Simpson Strong-Drive SDS Heavy-Duty Connector screws, which are included with the hanger. These screws are designed to penetrate all plies of the supporting girder, helping to transfer loads between the plies for a secure connection.
- How does the THGQ3-SDS4.5 compare to traditional bolted hangers?
- The THGQ3-SDS4.5 is a lower-cost alternative to bolted hangers. Rather than requiring bolts, it uses Strong-Drive SDS Heavy-Duty Connector screws, which provide high load capacities while offering easier installation compared to traditional bolt-based systems.
- What are the dimensions and material specifications of this hanger?
- The THGQ3-SDS4.5 has a seat width of 4-15/16 in. and a height of 16 in. It is constructed from 7-gauge steel and features a G90 zinc galvanized finish for extra corrosion resistance.
- Can the fastener quantity be adjusted to meet different load requirements?
- Yes. The THGQ3-SDS4.5 offers flexible installation options to accommodate varying design needs. It can be installed by filling the round holes only for minimum fastener values, or by filling both the round and triangle holes to achieve maximum load values.
