Product Description

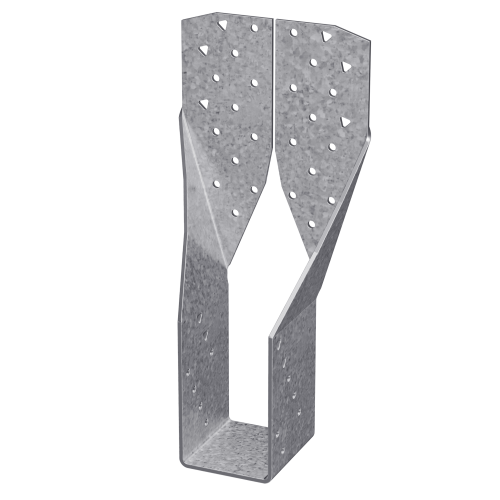

The Simpson Strong-Tie THGQ3.62-SDS is a heavy-duty truss hanger engineered specifically for connecting a girder truss or a structural composite lumber beam to a supporting girder truss. Constructed from 7-gauge steel with a Zinc Galvanized G90 coating, this hanger delivers exceptional corrosion resistance and long-term structural integrity. A cost-effective alternative to traditional bolted hangers, the THGQ3.62-SDS leverages included Strong-Drive SDS Heavy-Duty Connector screws to achieve high load capacities while simplifying the installation process. With a width of 3 5/8 inches and a height of 16 1/16 inches (HB: 10 in.), this hanger accommodates varying design requirements through its flexible minimum and maximum fastener quantity options.
Key Features
- Strong-Drive SDS Heavy-Duty Connector Screws Included: Pre-supplied screws for all round and triangle holes help efficiently transfer load between the plies of the supporting girder when they fully penetrate all plies.
- High Load Capacity: Increased allowable loads are available when a wider vertical web is used, giving engineers and contractors added design flexibility.
- Cost-Effective Alternative to Bolted Hangers: The THGQ design replaces traditional bolted hanger connections with screw-driven fastening, reducing both material costs and installation complexity.
- Flexible Fastener Quantities: Minimum and maximum fastener quantity options allow the hanger to accommodate a wide range of design load requirements.
- Durable Zinc Galvanized G90 Finish: The G90 coating provides robust protection against corrosion in standard construction environments.
- 7-Gauge Steel Construction: Heavy-gauge steel ensures structural reliability and consistent performance under demanding load conditions.
- Made in the United States: Manufactured domestically to exacting quality standards.
Specifications
- Model Number: THGQ3.62-SDS
- Gauge: 7
- Width: 3 5/8 in.
- Height: 16 1/16 in.
- HB (in.): 10
- Coating / Material: Zinc Galvanized, G90
- Fastener Type Included: Strong-Drive SDS Heavy-Duty Connector Screws
- Country of Origin: United States
Approved Applications
- Connecting a girder truss to a supporting girder truss
- Connecting a structural composite lumber (SCL) beam to a supporting girder truss
- Structural framing assemblies requiring high load transfer between multiple plies
- Residential and commercial construction where bolted hangers are cost-prohibitive
- Applications requiring variable fastener quantities to meet differing design load specifications
What's Included
- 1x Simpson Strong-Tie THGQ3.62-SDS Truss Hanger for Girders
- Strong-Drive SDS Heavy-Duty Connector Screws for all round and triangle holes
Frequently Asked Questions
- What is the THGQ3.62-SDS designed to connect?
- The THGQ3.62-SDS is engineered specifically to connect a girder truss or a structural composite lumber beam to a supporting girder truss, making it suitable for heavy-duty structural framing applications.
- What fasteners are used with this hanger, and are they included?
- This hanger uses Strong-Drive SDS Heavy-Duty Connector screws, which are included with the product. These screws are pre-supplied for all round and triangle holes and help efficiently transfer load between the plies of the supporting girder when they fully penetrate all plies.
- What are the dimensions and material construction of this hanger?
- The THGQ3.62-SDS has a width of 3 5/8 inches and a height of 16 1/16 inches (HB: 10 in.). It is constructed from 7-gauge steel with a Zinc Galvanized G90 coating, which provides corrosion resistance and long-term structural integrity.
- How does this hanger compare to traditional bolted hangers?
- The THGQ3.62-SDS is a cost-effective alternative to traditional bolted hangers. It replaces bolted connections with screw-driven fastening using the included Strong-Drive SDS screws, which reduces both material costs and installation complexity. Additionally, increased allowable loads are available when a wider vertical web is used, offering added design flexibility.
