Product Description

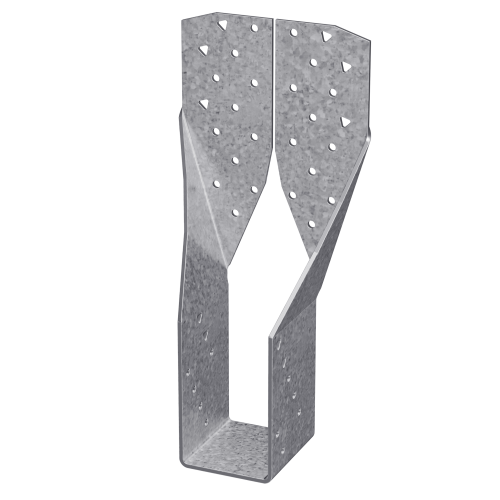

The Simpson THGQ2-SDS3 THGQ 3-5/16 in. Heavy-Duty Girder Truss Hanger with Strong-Drive SDS Screws by Simpson Strong-Tie is engineered for multi-ply girder trusses, delivering a lower-cost alternative to bolted hangers while maintaining high load capacities. By utilizing Strong-Drive SDS Heavy-Duty Connector screws to transfer loads between the plies of the supporting girder, this hanger offers easier installation and the flexibility to accommodate varying design needs with minimum and optional maximum fastener quantities.
Key Features
- Can be installed filling round holes only, or filling round and triangle holes for maximum values
- Seat width: 3-5/16 in.
- Height: 16 in.
- Made from 7-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Strong-Drive SDS Heavy-Duty Connector screws help transfer the load between the plies of the supporting girder when they penetrate all plies
- THGQ models offer minimum and optional maximum fastener quantities to accommodate varying design needs
Specifications
- Model Number: THGQ2-SDS3
- Seat Width: 3-5/16 in.
- Height: 16 in.
- Gauge: 7
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Installation Fasteners: 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
- Country of Origin: United States
What's Included
- 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws
Frequently Asked Questions
- What type of fasteners are used with the THGQ2-SDS3, and are they included?
- The THGQ2-SDS3 is installed with 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws, which are included with the hanger. These screws help transfer the load between the plies of the supporting girder when they penetrate all plies.
- Can the THGQ2-SDS3 be installed with different fastener configurations?
- Yes. The THGQ2-SDS3 can be installed by filling round holes only for standard values, or by filling both round and triangle holes to achieve maximum load values. THGQ models offer minimum and optional maximum fastener quantities to accommodate varying design needs.
- What material and coating is used on the THGQ2-SDS3?
- The THGQ2-SDS3 is made from 7-gauge steel and features a Zinc Galvanized (G90) coating, providing extra corrosion resistance for demanding structural applications.
- What are the key dimensions of the THGQ2-SDS3 hanger?
- The THGQ2-SDS3 has a seat width of 3-5/16 in. and a height of 16 in., making it suited for multi-ply girder truss connections requiring a heavy-duty, high-capacity hanger solution.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
