Product Features
Product Description

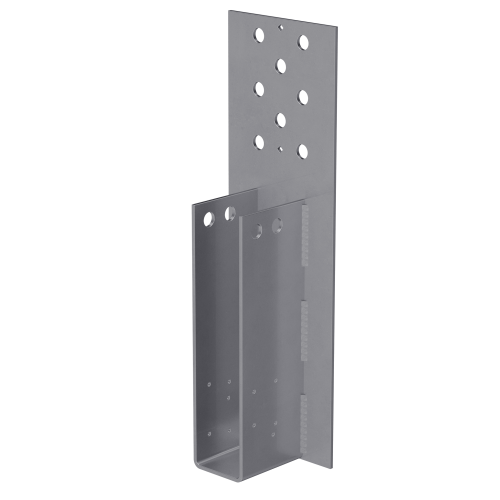

The Simpson Strong-Tie THGBV5.50/9 is a heavy-duty bolted truss hanger engineered for connecting multi-ply structural composite lumber (SCL) to girder trusses. Designed to attach to a vertical web, this hanger supports high loads with reliable performance. The THGBV series offers options for skewing or dropping the buckets, providing design flexibility for a wide variety of SCL-to-truss connections. In addition to bolted installation, this hanger also supports an installation option using Strong-Drive SDS Heavy-Duty Connector screws, giving structural professionals added versatility on the job site.
Key Features
- Bolted hanger designed for multi-ply structural composite lumber (SCL) to girder truss connections
- Attaches to a vertical web to support high loads
- Skew and drop bucket options for design flexibility across a variety of SCL-to-truss connections
- Compatible with Strong-Drive SDS Heavy-Duty Connector screws as an installation option
- Finished in Simpson Strong-Tie Gray Paint for consistent identification and corrosion resistance
- Heavy 3-gauge steel construction for structural integrity under demanding load conditions
- Manufactured in the United States
Specifications
- Model Number: THGBV5.50/9
- Manufacturer Part Number (MPN): THGBV5.50/9
- Joist Size: 51/4 x 91/4 - 14
- Gauge: 3
- Width: 51/2 in.
- HB: 9 in.
- Coating / Material: Simpson Strong-Tie Gray Paint
- Fasteners: Required; See Specifications
- Country of Origin: United States
Approved Applications
- Connecting multi-ply structural composite lumber (SCL) members to girder trusses
- Vertical web attachment for high-load structural connections
- Residential and commercial framing applications requiring flexible SCL-to-truss hanger solutions
- Applications requiring skewed or dropped bucket configurations for design versatility
What's Included
- 1 x Simpson Strong-Tie THGBV5.50/9 Truss Hanger
- Note: Fasteners are required and are not included. See product specifications for fastener requirements.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
- What type of lumber is the THGBV5.50/9 designed to connect?
- The THGBV5.50/9 is engineered specifically for connecting multi-ply structural composite lumber (SCL) to girder trusses. It attaches to a vertical web on the girder truss to support high loads in demanding structural applications.
- Can this hanger be installed with screws instead of bolts?
- Yes. While this is primarily a bolted hanger, it is also compatible with Strong-Drive SDS Heavy-Duty Connector screws as an installation option, giving structural professionals added versatility depending on job site requirements.
- What joist size and gauge steel is used in the THGBV5.50/9?
- The THGBV5.50/9 is designed for a joist size of 51/4 x 91/4-14 and is constructed from heavy 3-gauge steel, providing structural integrity under demanding load conditions.
- Does this hanger offer any flexibility for angled or offset installations?
- Yes. The THGBV series includes skew and drop bucket options, allowing for design flexibility across a variety of SCL-to-truss connection configurations where standard perpendicular or level installations are not sufficient.
