Product Features
Product Description

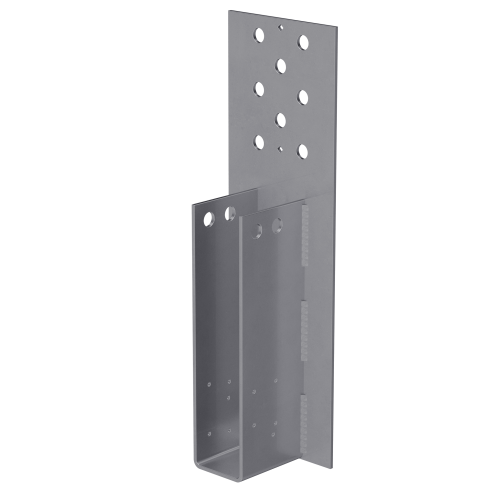

The Simpson Strong-Tie THGBHV5.50/9 is a heavy-duty, high-capacity bolted hanger engineered for connecting multi-ply structural composite lumber (SCL) to girder trusses. Designed to attach to a vertical web, this hanger delivers exceptional load-bearing performance for demanding structural applications. With options for skewing or dropping the buckets, the THGBHV5.50/9 provides meaningful design flexibility for a wide variety of SCL-to-truss connections, making it a trusted solution for engineers and contractors working with complex framing configurations.
Key Features
- High-Capacity Bolted Design: Engineered as a bolted hanger to support higher loads at SCL-to-girder truss connections.
- Vertical Web Attachment: Attaches directly to a vertical web of the girder truss for superior load transfer.
- Skew & Drop Options: Buckets can be skewed or dropped to accommodate varied connection geometries and design requirements.
- Heavy 3-Gauge Steel: Constructed from 3-gauge steel for exceptional strength and structural integrity.
- Simpson Strong-Tie Gray Paint Finish: Factory-applied gray paint coating provides a consistent, professional finish.
- Multi-Ply SCL Compatible: Specifically designed for use with multi-ply structural composite lumber members.
- Made in the United States: Manufactured domestically to meet rigorous quality standards.
Specifications
- Model Number: THGBHV5.50/9
- MPN: THGBHV5.50/9
- Joist Size: 5-1/4 x 9-1/4 - 14
- Gauge: 3
- Width: 51/2 in.
- HB: 9 in.
- Coating / Material: Simpson Strong-Tie Gray Paint
- Country of Origin: United States
Approved Applications
- Connecting multi-ply structural composite lumber (SCL) to girder trusses
- High-load SCL-to-truss framing connections requiring bolted attachment
- Applications where skewed or dropped bucket configurations are required for design flexibility
- Commercial and residential heavy timber framing assemblies utilizing girder truss systems
Installation
Fasteners are required for installation. See product specifications for fastener requirements. Product dimensions and/or screw or bolt hole configurations may differ from product images. Please refer to the item description and specifications for confirmed dimensions and hole patterns prior to installation.
Disclaimer: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications before installation or use.
Frequently Asked Questions
- What type of lumber members is the THGBHV5.50/9 designed to support?
- The THGBHV5.50/9 is specifically designed for use with multi-ply structural composite lumber (SCL) members, making it the appropriate choice for engineered lumber framing applications that require a high-capacity connection to a girder truss.
- How does this hanger attach to the girder truss?
- This hanger attaches directly to a vertical web of the girder truss, providing superior load transfer at the connection point. It is a bolted hanger, meaning bolted fastening is used to achieve its high-capacity load-bearing performance.
- What joist size and gauge is the THGBHV5.50/9 rated for?
- The THGBHV5.50/9 is sized for a joist width of 5-1/2 in. with an HB measurement of 9 in., accommodating joist sizes from 5-1/4 x 9-1/4 up to 14. The hanger itself is constructed from heavy 3-gauge steel for exceptional structural integrity.
- Does this hanger offer any flexibility for non-standard framing configurations?
- Yes. The THGBHV5.50/9 features buckets that can be skewed or dropped, allowing the hanger to accommodate varied connection geometries and design requirements. This makes it suitable for complex framing configurations where a standard square connection is not possible.
