Product Description

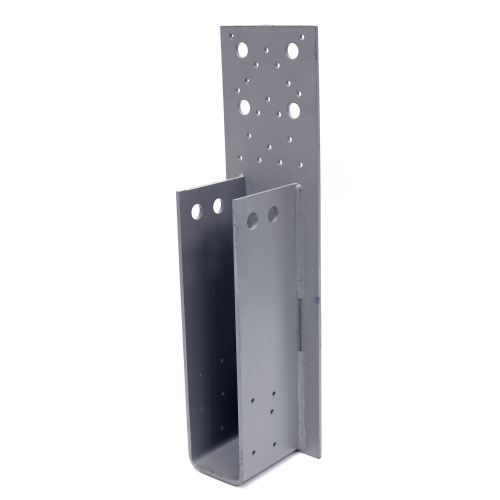

The Simpson Strong-Tie THGB3 Truss Girder Hanger is a heavy-duty bolted hanger engineered for the reliable installation of multi-ply girder trusses. This welded hanger attaches securely to a vertical web and features a backplate specifically designed to support high structural loads. Finished in Simpson Strong-Tie Gray Paint, the THGB3 is built to deliver consistent, code-compliant performance in demanding construction applications. The THGB3 also offers an installation option using Strong-Drive SDS Heavy-Duty Connector screws, providing contractors with added versatility on the job site.
Key Features
- Bolted hanger design engineered for multi-ply girder truss installation
- Welded construction for superior structural integrity and load capacity
- Backplate design provides support for high structural loads
- Skewable up to 45 deg. - the maximum allowable down load and uplift load for skew is 0.87 of the table load
- Strong-Drive SDS Heavy-Duty Connector screw installation option for added flexibility
- Finished in Simpson Strong-Tie Gray Paint for a durable, consistent coating
- Manufactured in the United States
Specifications
- Model Number: THGB3
- Manufacturer Part Number (MPN): THGB3
- Gauge: 3
- Width: 4 15/16 in.
- Coating / Material: Simpson Strong-Tie Gray Paint
- Brand: Simpson Strong-Tie
- Country of Origin: United States
Approved Applications
- Installation of multi-ply girder trusses
- Structural connections requiring attachment to a vertical web member
- High-load bearing truss-to-girder connections
- Applications where skewed hanger connections up to 45 deg. are required
Installation
Use all specified fasteners. The THGB3 attaches to a vertical web and is designed to be used with all fasteners called out in the product specifications. An installation option using Strong-Drive SDS Heavy-Duty Connector screws is available. When skewing the hanger, note that the maximum allowable down load and uplift load for skew is 0.87 of the table load, with a maximum skew angle of 45 deg..
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
- What type of trusses is the THGB3 designed to support?
- The THGB3 is specifically engineered for the installation of multi-ply girder trusses. It is also suited for structural connections requiring attachment to a vertical web member and high-load bearing truss-to-girder connections.
- Can the THGB3 be skewed for angled installations?
- Yes, the THGB3 is skewable up to 45 deg.. When installed at a skew, the maximum allowable down load and uplift load is 0.87 of the table load.
- What fastener options are available for installing the THGB3?
- The THGB3 is a bolted hanger by design, but it also offers an installation option using Strong-Drive SDS Heavy-Duty Connector screws, providing added flexibility on the job site.
- What are the dimensions and finish of the THGB3?
- The THGB3 has a width of 4 15/16 in. and a gauge of 3. It is finished in Simpson Strong-Tie Gray Paint, which provides a durable, consistent coating.
