Product Description

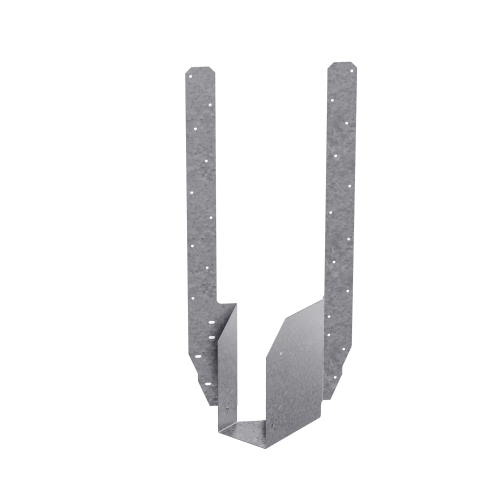

The Simpson THAL422 Adjustable Truss Hanger Skewed Left 45 deg. by Simpson is a field-adjustable, U-shaped galvanized hanger engineered to support 4x floor trusses and 4x beams with a precise 45 deg. left skew. Featuring positive-angle nailing (PAN) and extra-long straps, this hanger eliminates the need for special orders by accommodating both top-flange and face-mount installation in a single versatile product.
Key Features
- Eliminates the need for special orders
- Can be used for top-flange or face-mount installation
- Extra-long straps for height adjustability and top-flange installation convenience
- Positive-angle nailing (PAN) helps eliminate splitting of truss bottom chords
- Skewed left; for skewed-right hanger, order THAR422
- Minimum carried member: 4x10
- Seat width: 3-5/8 in.
- Height: 22-5/8 in.
- Made from 16-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- MPN: THAL422
- Member Size: 4x floor truss
- Skew Direction: Left, 45 deg.
- Height: 22-5/8 in.
- Seat Width: 3-5/8 in.
- Gauge: 16
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Minimum Carried Member: 4x10
- Install With: 0.148 x 1-1/2 in. nails and 0.148 in. x 3 in. nails
- Country of Origin: United States
Frequently Asked Questions
- What is the skew direction of the THAL422, and what is the equivalent right-skew model?
- The THAL422 is skewed 45 deg. to the left. For an equivalent hanger with a 45 deg. skew to the right, order the THAR422.
- Can the THAL422 be used for both top-flange and face-mount installations?
- Yes. The THAL422 is designed for use in both top-flange and face-mount installation configurations. Its extra-long straps provide the height adjustability needed to accommodate top-flange installation conveniently in the field.
- What fasteners are required to install the THAL422?
- The THAL422 should be installed using 0.148 x 1-1/2 in. nails and 0.148 in. x 3 in. nails. Refer to the load table for minimum and maximum nailing configurations and specific nailing requirements.
- What corrosion protection does the THAL422 offer, and what steel gauge is it made from?
- The THAL422 is made from 16-gauge steel and features a G90 zinc galvanized coating, which provides extra corrosion resistance and makes it suitable for demanding construction environments.
