Product Description

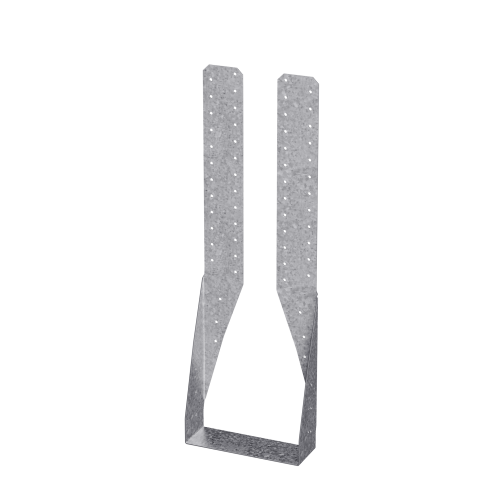

The Simpson Strong-Tie THAC426-2 Galvanized Adjustable Concealed-Flange Truss Hanger for Double 4x26 is a heavy-duty wood connector engineered by Simpson Strong-Tie to support trusses and beams with precision and flexibility. This versatile U-shaped truss hanger features extra-long, straight straps that allow the height location of the truss to be adjusted in the field - making it an ideal solution for complex framing situations. The concealed flanges keep the profile tight and unobtrusive, making it well-suited for installations in restricted or confined spaces.
Key Features
- Can be used for top-flange or face-mount installation
- Extra-long straps for height adjustability and top-flange installation convenience
- Dense nail pattern in the straps provides more installation options and allows for easy top-flange installation
- Min./max. nailing installation options
- Seat width: 7-1/4 in.
- Hanger height: 26-1/16 in.
- Made from 14-gauge steel
- Galvanized (G90) for corrosion resistance
Specifications
- MPN: THAC426-2
- Brand: Simpson Strong-Tie
- Member Size: Double 4x26
- Seat Width: 7-1/4 in.
- Hanger Height: 26-1/16 in.
- Gauge: 14
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Supporting trusses and beams in wood framing construction
- Installations requiring field-adjustable truss height positioning
- Applications in restricted or confined spaces where concealed flanges are required
- Top-flange installation using (8) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.162 in. x 3-1/2 in. nails in the joist
- Face-mount installation using (38) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.162 in. x 3-1/2 in. nails in the joist
Frequently Asked Questions
- What member size is the THAC426-2 designed to support?
- The THAC426-2 is specifically designed to support a Double 4x26 member, with a seat width of 7-1/4 in. and a hanger height of 26-1/16 in.
- Can this hanger be installed using both top-flange and face-mount methods?
- Yes. The THAC426-2 can be used for either top-flange or face-mount installation. For top-flange installation, use (8) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.162 in. x 3-1/2 in. nails in the joist. For face-mount installation, use (38) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.162 in. x 3-1/2 in. nails in the joist.
- Why does the THAC426-2 feature concealed flanges?
- The concealed flanges are specifically designed for applications in restricted spaces where a standard exposed-flange hanger would not fit or would interfere with adjacent structural elements.
- What corrosion protection does the THAC426-2 offer?
- The THAC426-2 is coated with a Zinc Galvanized G90 finish, which provides strong corrosion resistance for long-term performance in demanding construction environments.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
