Product Description

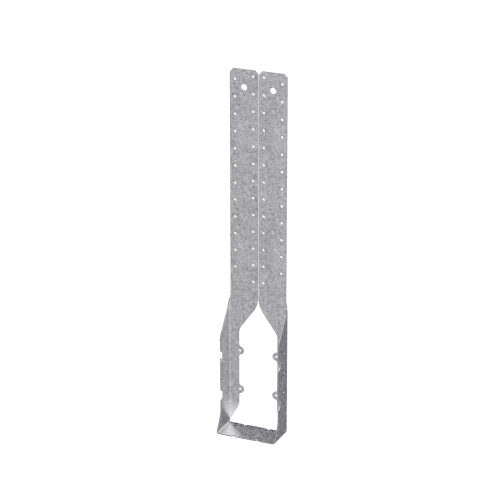

The Simpson Strong-Tie THAC422 Adjustable Concealed-Flange Truss Hanger is a heavy-duty wood connector engineered by Simpson Strong-Tie to support trusses and beams in structural applications. This versatile U-shaped truss hanger features extra-long, straight straps that allow the height location of the truss to be field-adjusted, making it ideal for installations where precise vertical positioning is required. The concealed-flange design keeps flanges hidden for clean, space-efficient results in restricted or tight installation areas.
Key Features
- Can be used for top-flange or face-mount installation
- Extra-long straps for height adjustability and top-flange installation convenience
- Dense nail pattern in the straps provides more installation options and allows for easy top-flange installation
- Min./max. nailing installation options
- Seat width: 3-5/8 in.
- Hanger height: 22 in.
- Made from 16-gauge steel
- Galvanized (G90) for corrosion resistance
Specifications
- MPN: THAC422
- Member Size: 4x22
- Seat Width: 3-5/8 in.
- Hanger Height: 22 in.
- Gauge: 16
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Supporting trusses and beams in wood construction applications
- Installations requiring field-adjustable truss height positioning
- Restricted-space applications where concealed flanges are necessary
- Top-flange installation configurations
- Face-mount installation configurations
Frequently Asked Questions
- What fasteners are required for top-flange installation of the THAC422?
- For top-flange installation, install with (6) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.148 in. x 3 in. nails in the joist.
- What fasteners are required for face-mount installation of the THAC422?
- For face-mount installation, install with (22) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.162 in. x 3-1/2 in. nails in the joist.
- What makes the THAC422 suitable for restricted-space applications?
- The THAC422 features concealed flanges, which keep the flanges hidden and allow the hanger to fit into tight or restricted spaces where standard exposed-flange hangers would not be practical.
- Is the THAC422 protected against corrosion?
- Yes. The THAC422 is coated with a G90 zinc galvanized finish, which provides corrosion resistance for long-term durability in structural applications.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
