Product Description

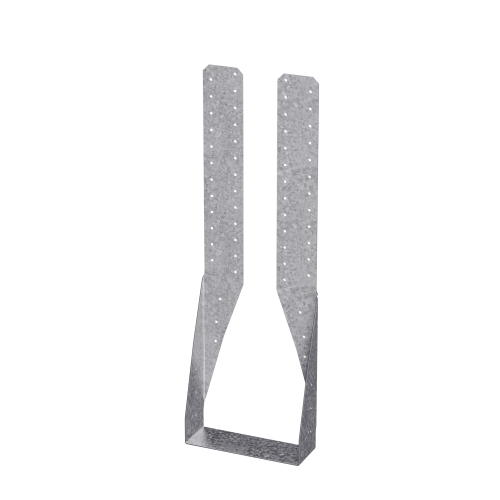

The Simpson Strong-Tie THAC422-2 Galvanized Adjustable Concealed-Flange Truss Hanger for Double 4x22 is a heavy-duty wood connector engineered by Simpson Strong-Tie to support trusses and beams in residential and commercial framing applications. This versatile U-shaped truss hanger features extra-long, straight straps that allow the height location of the truss to be field-adjusted, making it an ideal solution where precise vertical positioning is required. The concealed flanges keep the hanger profile low-profile and suited for use in restricted or tight spaces, while the G90 galvanized coating delivers lasting corrosion resistance in demanding environments.
Key Features
- Can be used for top-flange or face-mount installation
- Extra-long straps for height adjustability and top-flange installation convenience
- Dense nail pattern in the straps provides more installation options and allows for easy top-flange installation
- Min./max. nailing installation options
- Seat width: 7-1/4 in.
- Hanger height: 22-11/16 in.
- Made from 14-gauge steel
- Galvanized (G90) for corrosion resistance
Specifications
- MPN: THAC422-2
- Brand: Simpson Strong-Tie
- Member Size: Double 4x22
- Seat Width: 7-1/4 in.
- Hanger Height: 22-11/16 in.
- Gauge: 14
- Coating/Finish: Zinc Galvanized, G90
- Country of Origin: ZZ
Approved Applications
- Supporting trusses and beams in wood framing systems
- Top-flange installation: install with (8) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.162 in. x 3-1/2 in. nails in the joist
- Face-mount installation: install with (30) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.162 in. x 3-1/2 in. nails in the joist
- Applications requiring field-adjustable truss height positioning
- Installations in restricted or confined spaces where concealed flanges are necessary
Frequently Asked Questions
- What member size is the Simpson THAC422-2 designed for?
- The THAC422-2 is specifically designed to support a Double 4x22 lumber member. It features a seat width of 7-1/4 in. and a hanger height of 22-11/16 in. to accommodate this member size.
- Can the THAC422-2 be used for both top-flange and face-mount installations?
- Yes. The THAC422-2 supports both top-flange and face-mount installation methods. For top-flange installation, use (8) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.162 in. x 3-1/2 in. nails in the joist. For face-mount installation, use (30) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.162 in. x 3-1/2 in. nails in the joist.
- Why does the THAC422-2 feature extra-long straps?
- The extra-long straps allow for field-adjustable height positioning of the truss, giving installers flexibility when the exact vertical location of the truss needs to be set on-site. The dense nail pattern along the straps also provides more installation options and makes top-flange installation more convenient.
- What corrosion protection does the THAC422-2 have?
- The THAC422-2 is coated with a Zinc Galvanized G90 finish, which provides reliable corrosion resistance for use in applications where moisture exposure is a concern. It is constructed from 14-gauge steel for added strength and durability.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
