Product Description

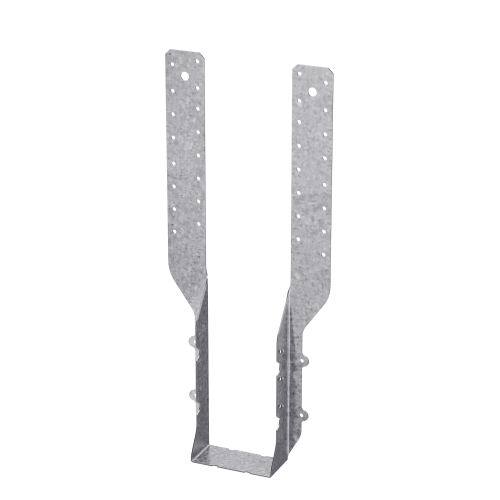

The Simpson Strong-Tie THA418 Adjustable Hanger for 4x Floor Truss is a heavy-duty galvanized connector engineered to support 4x floor trusses with reliable, field-adjustable versatility. Featuring extra-long straps that can be field-formed for height adjustability, this hanger offers the convenience of both top-flange and face-mount installation in a single product - making it an ideal solution for applications where the precise vertical placement of a truss must be determined in the field.
Key Features
- Can be installed as a top-flange or face-mount hanger
- Extra-long straps that can be field-formed to give height adjustability and top-flange hanger convenience
- Seat width: 3-5/8 in.
- Height: 17-1/2 in.
- Nominal joist size: 4x floor truss
- Made from 16-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Made in the United States
Specifications
- MPN: THA418
- Brand: Simpson Strong-Tie
- Member Size: 4x floor truss
- Seat Width: 3-5/8 in.
- Height: 17-1/2 in.
- Gauge: 16
- Coating/Finish: Zinc Galvanized, G90
- Install With: For top-flange installation, install with 16d and 10d common nails; for face-mount installation, install with 16d common nails
- Country of Origin: United States
Frequently Asked Questions
- Can the THA418 be used as both a top-flange and a face-mount hanger?
- Yes. The THA418 is designed to be installed as either a top-flange or a face-mount hanger, giving installers flexibility depending on the specific framing application and job-site conditions.
- What fasteners are required to install the THA418?
- For top-flange installation, use 16d and 10d common nails. For face-mount installation, use 16d common nails. Always use all specified fasteners to achieve the rated load capacity.
- How does the height adjustability of the THA418 work?
- The THA418 features extra-long straps that can be field-formed, allowing the installer to adjust the height location of the truss on-site. This makes it well suited for applications where the exact vertical positioning of the floor truss needs to be determined during installation.
- What corrosion protection does the THA418 provide?
- The THA418 is coated with a G90 zinc galvanized finish, which provides extra corrosion resistance and makes it suitable for use in environments where moisture exposure is a concern.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
