Product Description

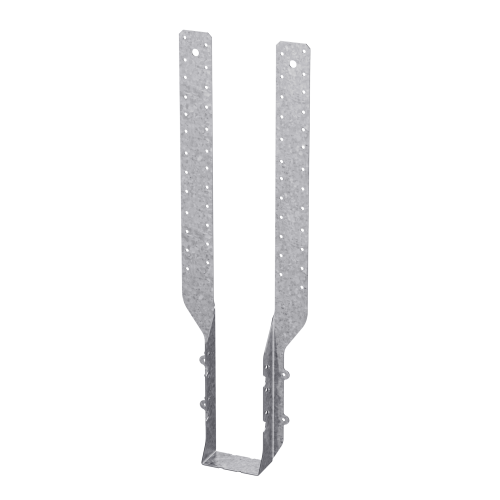

The Simpson Strong-Tie THA222-2 Galvanized Adjustable Hanger for Double 2x Truss is a heavy-duty wood connector engineered to support double 2x trusses with exceptional flexibility and strength. Featuring extra-long straps that can be field-formed, this hanger delivers height adjustability on the job site while offering the convenience of both top-flange and face-mount installation options. The G90 galvanized finish provides reliable corrosion resistance, making it well-suited for demanding structural applications.
Key Features
- Can be installed as top-flange or face-mount hangers
- Extra-long straps can be field-formed to give height adjustability and top-flange hanger convenience
- Seat width: 3-1/8 in.
- Height: 22-3/16 in.
- Nominal joist size: double 2x truss
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Made in the United States
Specifications
- MPN: THA222-2
- Brand: Simpson Strong-Tie
- Member Size: Double 2x truss
- Height: 22-3/16 in.
- Seat Width: 3-1/8 in.
- Gauge: 16
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: For top-flange installation: Install with 16d and 10d common nails. For face-mount installation: Install with 16d common nails.
- Country of Origin: United States
Frequently Asked Questions
- What installation methods are compatible with the THA222-2?
- The THA222-2 can be installed as either a top-flange or a face-mount hanger, giving you flexibility to match your specific framing application and job site requirements.
- What fasteners should be used to install the THA222-2?
- For top-flange installation, use 16d and 10d common nails. For face-mount installation, use 16d common nails. Always use all specified fasteners per installation requirements.
- What makes the THA222-2 suitable for applications where truss height needs to be adjusted?
- The THA series hangers feature extra-long straps that can be field-formed, providing height adjustability on the job site. This makes it easy to position the truss at the correct height without needing a different hanger size.
- What corrosion protection does the THA222-2 offer?
- The THA222-2 is coated with a G90 zinc galvanized finish, which provides extra corrosion resistance and helps extend the service life of the connector in demanding environments.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
