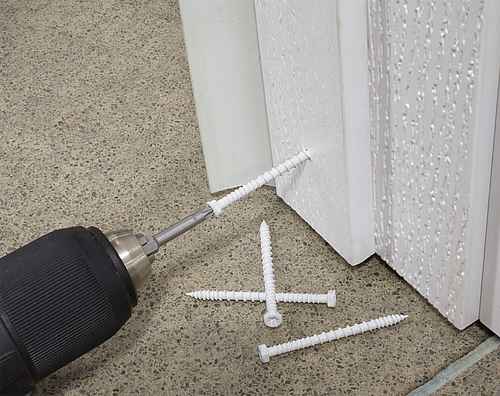

The Simpson TSV214R70WH01 PVC Trim-Board Screw - #8 x 2-1/4 in. is a special-purpose fastener from Simpson Strong-Tie, engineered for easy installation of exterior PVC trim and fascia onto wood. Its triple-thread design delivers low-torque driving and increased holding power, while its white exterior-grade coating blends seamlessly with popular white PVC trim for a clean, professional finish.

Key Features

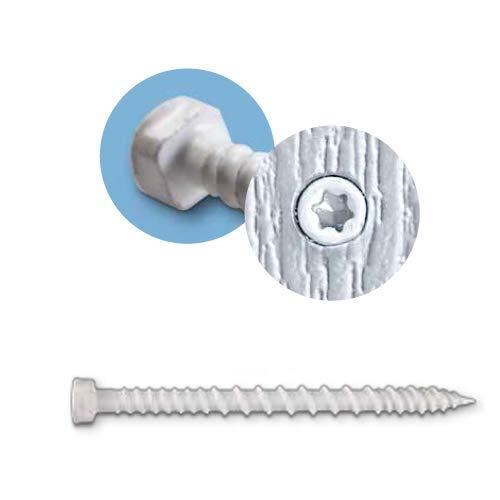

• Unique box-shaped cutter head bores through PVC materials, stripping away excess during countersinking for a clean, flush finish
• Triple-thread design for low-torque driving and holding boards securely
• 6-lobe drive reduces driver-bit cam-outs for easier installations and longer bit life
• Flat-washer underhead provides less board pull-through and a clean, flush finish
• White exterior-grade coating blends with popular white trim boards and provides medium-level corrosion resistance, making it ideal for outdoor applications
• Simpson Strong-Tie internal test results indicate that the PVC Trim-Board Screw provides higher pull-through resistance than other trim-head screws
• T20 bit included (replacement bit model BIT20T-2-R2)

Specifications

• Model No.: TSV214R70WH01
• Screw Size: #8
• Length: 2-1/4 in.
• Head Type: Box-Shaped Cutter Head
• Head Diameter: 0.250 in.
• Drive Type: T20 6-Lobe
• Thread Type: Triple-Thread Design
• Point Type: High-Low Threaded Point
• Coating/Finish: Exterior-Grade Coating
• Color: White
• Country of Origin: ZZ

Approved Applications

• PVC trim and fascia applications

What's Included

Each pack contains (70) PVC Trim-Board Screws, (1) T20 6-lobe driver bit.

Frequently Asked Questions

What makes the TSV214R70WH01 different from a standard trim-head screw?

Unlike standard trim-head screws, the Simpson TSV214R70WH01 features a unique box-shaped cutter head that bores through PVC materials and strips away excess during countersinking. Simpson Strong-Tie internal test results indicate that this PVC Trim-Board Screw provides higher pull-through resistance than other trim-head screws, and its flat-washer underhead reduces board pull-through for a cleaner, flush finish.

What is the drive type, and does a bit come included?

This screw uses a T20 6-lobe drive, which reduces driver-bit cam-outs for easier installations and longer bit life. A T20 6-lobe driver bit is included with the purchase. If a replacement bit is needed, the replacement bit model is BIT20T-2-R2.

Is this screw suitable for outdoor use?

Yes. The TSV214R70WH01 features a white exterior-grade coating that provides medium-level corrosion resistance, making it well-suited for outdoor applications. The white finish is specifically designed to blend with popular white PVC trim boards used in exterior installations.

What materials is the TSV214R70WH01 designed to fasten?

This screw is specifically engineered for installing exterior PVC trim and fascia onto wood substrates. Its triple-thread design allows for low-torque driving and increased holding power, while the box-shaped cutter head is purpose-built to bore cleanly through PVC materials.
